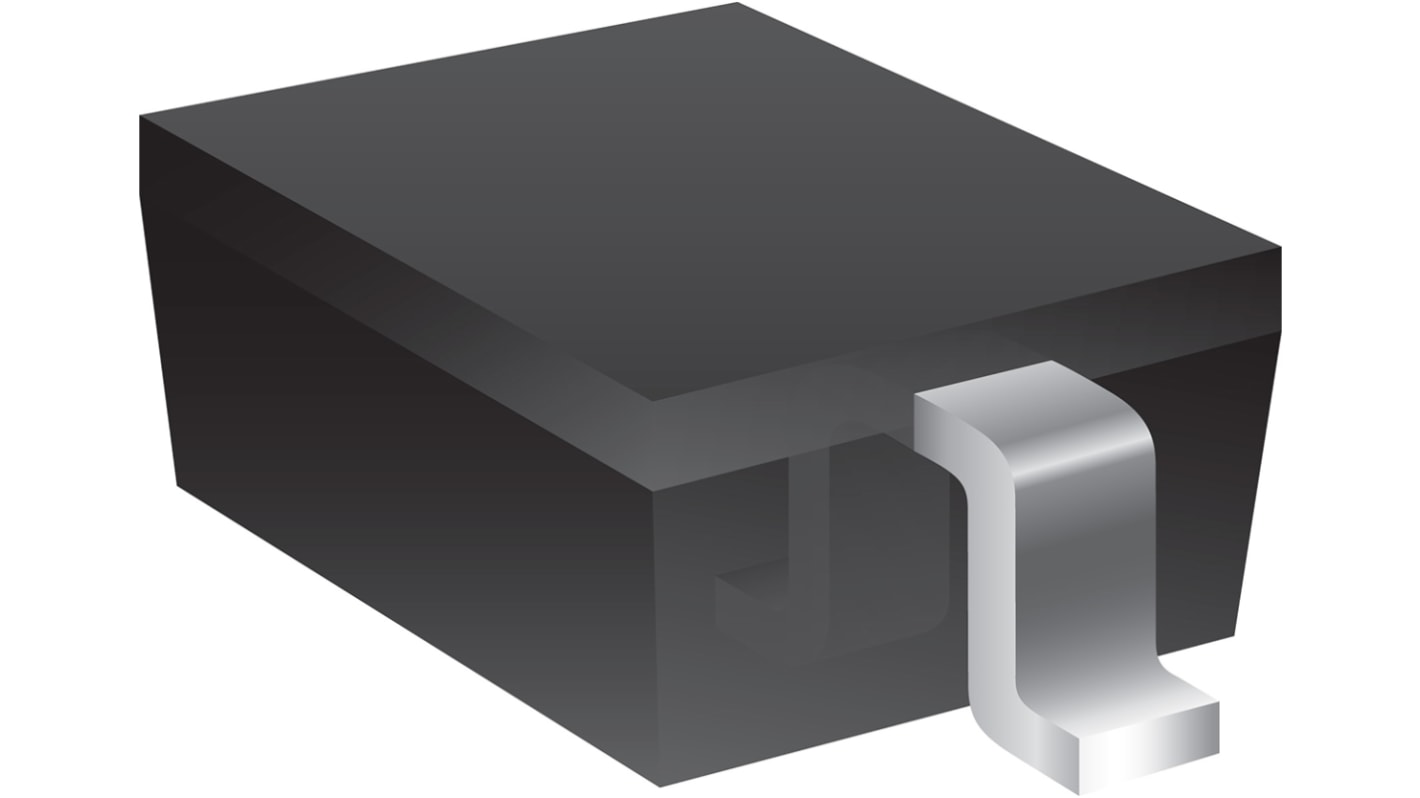

Bourns CDSOD323-T05S-Q, Uni-Directional TVS Diode, 500W, 2-Pin SOD-323
- RS Stock No.:
- 187-1412
- Mfr. Part No.:
- CDSOD323-T05S-Q
- Manufacturer:
- Bourns
1 / 1
Subtotal (1 reel of 3000 units)**
MYR3,792.00
Temporarily out of stock - back order for despatch 13/09/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Reel** |
|---|---|---|
| 3000 + | MYR1.264 | MYR3,792.00 |
**price indicative
- RS Stock No.:
- 187-1412
- Mfr. Part No.:
- CDSOD323-T05S-Q
- Manufacturer:
- Bourns
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Single | |
| Maximum Clamping Voltage | 9.8V | |
| Minimum Breakdown Voltage | 6V | |
| Mounting Type | Surface Mount | |
| Package Type | SOD-323 | |
| Maximum Reverse Stand-off Voltage | 5V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 500W | |
| Maximum Peak Pulse Current | 42A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 1.6 x 1.15 x 0.79mm | |
| Capacitance | 350pF | |
| Automotive Standard | AEC-Q101 | |
| Length | 1.6mm | |
| Surge Current Rating | >24A | |
| Maximum Reverse Leakage Current | 10µA | |
| Height | 0.79mm | |
| Width | 1.15mm | |
| Test Current | 1mA | |
| Working Voltage | 5V | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Direction Type Uni-Directional | ||
Diode Configuration Single | ||
Maximum Clamping Voltage 9.8V | ||
Minimum Breakdown Voltage 6V | ||
Mounting Type Surface Mount | ||
Package Type SOD-323 | ||
Maximum Reverse Stand-off Voltage 5V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 500W | ||
Maximum Peak Pulse Current 42A | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 1.6 x 1.15 x 0.79mm | ||
Capacitance 350pF | ||
Automotive Standard AEC-Q101 | ||
Length 1.6mm | ||
Surge Current Rating >24A | ||
Maximum Reverse Leakage Current 10µA | ||
Height 0.79mm | ||
Width 1.15mm | ||
Test Current 1mA | ||
Working Voltage 5V | ||
