Units	Per Unit	Per Reel**
3000 - 3000	MYR0.474	MYR1,422.00
6000 - 9000	MYR0.467	MYR1,401.00
12000 +	MYR0.458	MYR1,374.00

Select all	Attribute	Value
	Brand	onsemi
	Diode Configuration	Common Anode
	Direction Type	Bi-Directional
	Maximum Clamping Voltage	50V
	Minimum Breakdown Voltage	26.2V
	Mounting Type	Surface Mount
	Package Type	SOT-23
	Pin Count	3
	Peak Pulse Power Dissipation	200W
	Maximum Peak Pulse Current	3A
	ESD Protection	Yes
	Number of Elements per Chip	2
	Minimum Operating Temperature	-55 °C
	Dimensions	3.04 x 1.4 x 1.01mm
	Maximum Operating Temperature	+150 °C
	Width	1.4mm
	Capacitance	10pF
	Height	1.01mm
	Surge Current Rating	50A
	Test Current	1mA
	Length	3.04mm
	Automotive Standard	AEC-Q101
	Maximum Reverse Leakage Current	100nA

	Select all
	Brand onsemi
	Diode Configuration Common Anode
	Direction Type Bi-Directional
	Maximum Clamping Voltage 50V
	Minimum Breakdown Voltage 26.2V
	Mounting Type Surface Mount
	Package Type SOT-23
	Pin Count 3
	Peak Pulse Power Dissipation 200W
	Maximum Peak Pulse Current 3A
	ESD Protection Yes
	Number of Elements per Chip 2
	Minimum Operating Temperature -55 °C
	Dimensions 3.04 x 1.4 x 1.01mm
	Maximum Operating Temperature +150 °C
	Width 1.4mm
	Capacitance 10pF
	Height 1.01mm
	Surge Current Rating 50A
	Test Current 1mA
	Length 3.04mm
	Automotive Standard AEC-Q101
	Maximum Reverse Leakage Current 100nA

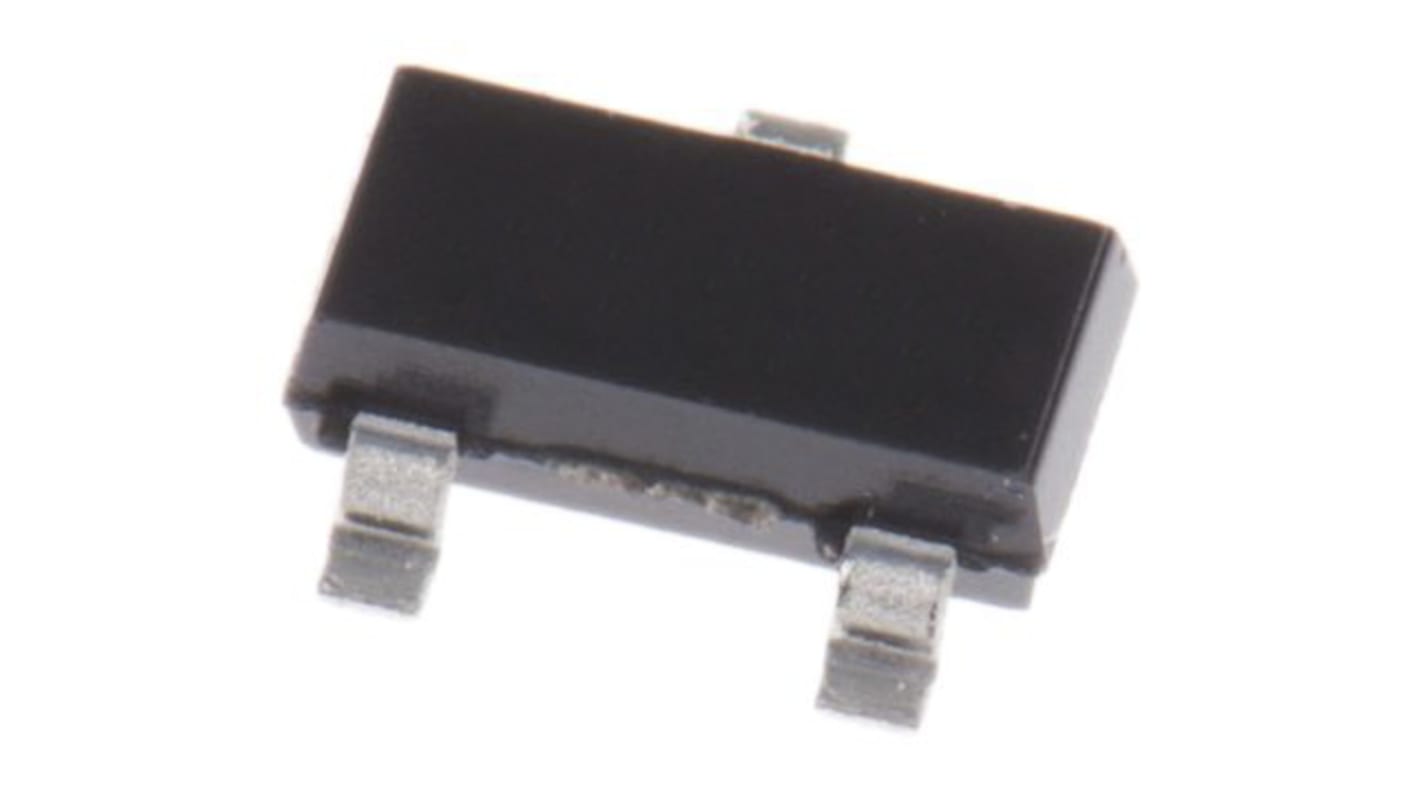

onsemi ESDONCAN1LT1G, Dual-Element Bi-Directional ESD Protection Diode, 200W, 3-Pin SOT-23

FREE delivery for orders over MYR500.00

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
