Units	Per Unit	Per Reel**
5000 - 5000	MYR0.444	MYR2,220.00
10000 - 15000	MYR0.434	MYR2,170.00
20000 +	MYR0.426	MYR2,130.00

Select all	Attribute	Value
	Brand	DiodesZetex
	Diode Configuration	Single
	Direction Type	Bi-Directional
	Maximum Clamping Voltage	17V
	Minimum Breakdown Voltage	11.1V
	Mounting Type	Surface Mount
	Package Type	DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage	10V
	Pin Count	2
	Peak Pulse Power Dissipation	400W
	Maximum Peak Pulse Current	23.5A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Dimensions	4.6 x 2.92 x 2.1mm
	Maximum Operating Temperature	+150 °C
	Height	2.1mm
	Maximum Reverse Leakage Current	5µA
	Width	2.92mm
	Test Current	1mA
	Length	4.6mm

	Select all
	Brand DiodesZetex
	Diode Configuration Single
	Direction Type Bi-Directional
	Maximum Clamping Voltage 17V
	Minimum Breakdown Voltage 11.1V
	Mounting Type Surface Mount
	Package Type DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage 10V
	Pin Count 2
	Peak Pulse Power Dissipation 400W
	Maximum Peak Pulse Current 23.5A
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Dimensions 4.6 x 2.92 x 2.1mm
	Maximum Operating Temperature +150 °C
	Height 2.1mm
	Maximum Reverse Leakage Current 5µA
	Width 2.92mm
	Test Current 1mA
	Length 4.6mm

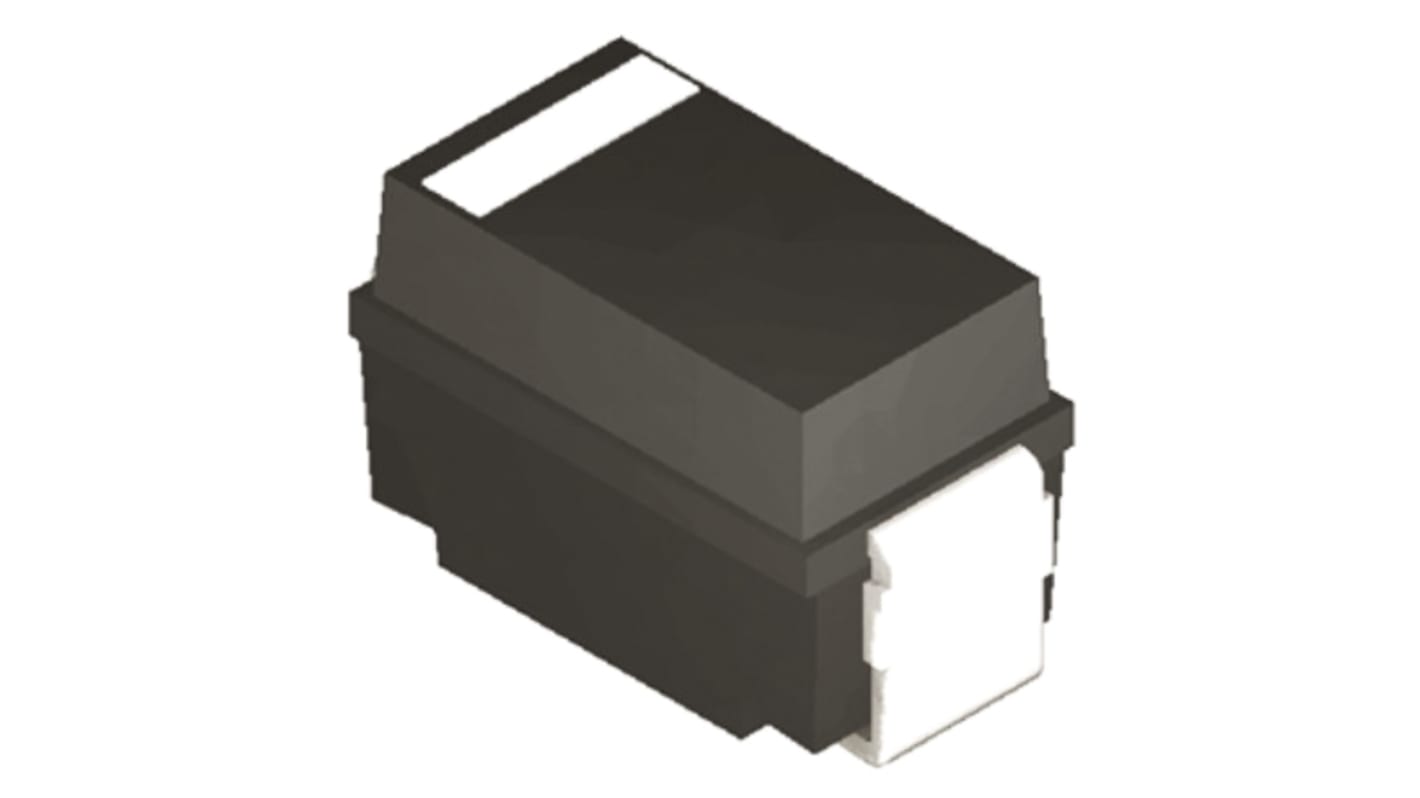

Diodes Inc SMAJ10CA-13-F, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC

FREE delivery for orders over MYR500.00

Transient Voltage Suppressors SMT Bidirectional 400W, SMAJ Series, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
