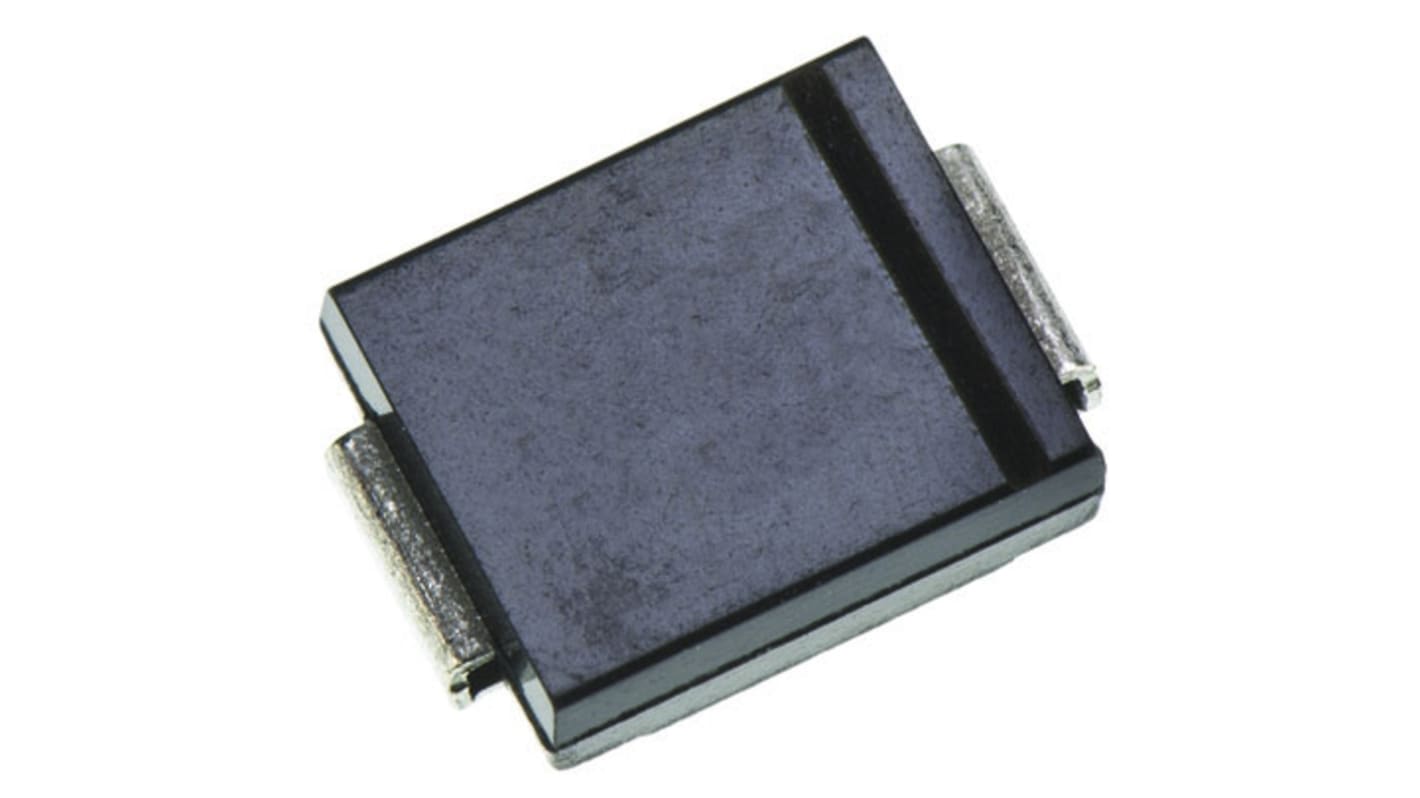

Littelfuse 5.0SMDJ45CA, Bi-Directional TVS Diode, 5000W, 2-Pin DO-214AB
- RS Stock No.:
- 171-9481
- Mfr. Part No.:
- 5.0SMDJ45CA
- Manufacturer:
- Littelfuse
Bulk discount available
Subtotal (1 reel of 3000 units)**
MYR14,877.00
Temporarily out of stock - back order for despatch 25/08/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Reel** |
|---|---|---|
| 3000 - 3000 | MYR4.959 | MYR14,877.00 |
| 6000 - 9000 | MYR4.85 | MYR14,550.00 |
| 12000 + | MYR4.76 | MYR14,280.00 |
**price indicative
- RS Stock No.:
- 171-9481
- Mfr. Part No.:
- 5.0SMDJ45CA
- Manufacturer:
- Littelfuse
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Direction Type | Bi-Directional | |
| Diode Configuration | Single | |
| Maximum Clamping Voltage | 72.7V | |
| Minimum Breakdown Voltage | 50V | |
| Mounting Type | Surface Mount | |
| Package Type | DO-214AB | |
| Maximum Reverse Stand-off Voltage | 45V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 5000W | |
| Maximum Peak Pulse Current | 68.8A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -65 °C | |
| Dimensions | 7.11 x 6.22 x 2.41mm | |
| Maximum Operating Temperature | +150 °C | |
| Height | 2.41mm | |
| Length | 7.11mm | |
| Surge Current Rating | 300A | |
| Width | 6.22mm | |
| Maximum Reverse Leakage Current | 5µA | |
| Test Current | 1mA | |
Select all | ||
|---|---|---|
Brand Littelfuse | ||
Direction Type Bi-Directional | ||
Diode Configuration Single | ||
Maximum Clamping Voltage 72.7V | ||
Minimum Breakdown Voltage 50V | ||
Mounting Type Surface Mount | ||
Package Type DO-214AB | ||
Maximum Reverse Stand-off Voltage 45V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 5000W | ||
Maximum Peak Pulse Current 68.8A | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -65 °C | ||
Dimensions 7.11 x 6.22 x 2.41mm | ||
Maximum Operating Temperature +150 °C | ||
Height 2.41mm | ||
Length 7.11mm | ||
Surge Current Rating 300A | ||
Width 6.22mm | ||
Maximum Reverse Leakage Current 5µA | ||
Test Current 1mA | ||
