Nexperia PESD5V0S4UF,115, Quad-Element Uni-Directional ESD Protection Array, 110W, 6-Pin SOT-886

RS Stock No.:: 165-8473
Mfr. Part No.:: PESD5V0S4UF,115
Manufacturer:: Nexperia

Nexperia PESD5V0S4UF,115, Quad-Element Uni-Directional ESD Protection Array, 110W, 6-Pin SOT-886

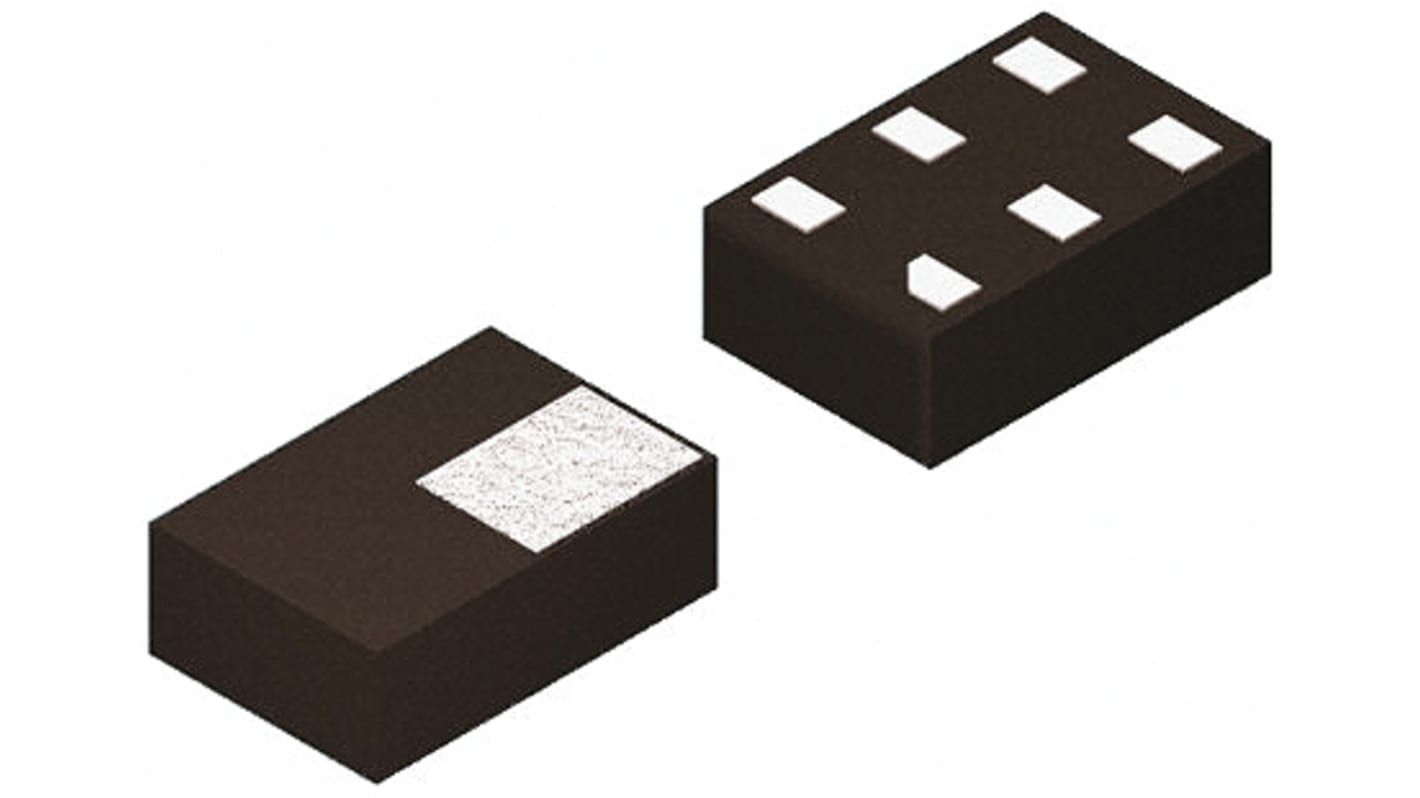

This image is representative of the product range

Bulk discount available

Price Each (On a Reel of 5000)**

MYR0.74

Stock check temporarily unavailable - call for stock availability

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Reel**
5000 - 5000	MYR0.74	MYR3,700.00
10000 - 15000	MYR0.724	MYR3,620.00
20000 +	MYR0.711	MYR3,555.00

**price indicative

RS Stock No.:: 165-8473
Mfr. Part No.:: PESD5V0S4UF,115
Manufacturer:: Nexperia

PESD3V3S4UF, PESD5V0S4UF Unidirectional quadruple ESD protection diode arrays datasheet
ESD Control Selection Guide V1

Attribute	Value
Direction Type	Uni-Directional
Diode Configuration	Common Anode
Maximum Clamping Voltage	12V
Minimum Breakdown Voltage	6.46V
Mounting Type	Surface Mount
Package Type	SOT-886
Maximum Reverse Stand-off Voltage	5V
Pin Count	6
Peak Pulse Power Dissipation	110W
Maximum Peak Pulse Current	10A
ESD Protection	Yes
Number of Elements per Chip	4
Minimum Operating Temperature	-55 °C
Maximum Operating Temperature	+150 °C
Dimensions	1.5 x 1.05 x 0.5mm
Width	1.05mm
Length	1.5mm
Test Current	1mA
Maximum Reverse Leakage Current	100nA
Height	0.5mm

Nexperia PESD5V0S4UF,115, Quad-Element Uni-Directional ESD Protection Array, 110W, 6-Pin SOT-886

FREE delivery for orders over MYR700.00

PESDxxxS4 Series, Low Capacitance Unidirectional Quadruple ESD Protection Diodes, Nexperia
