Select all	Attribute	Value
	Brand	Vishay
	Diode Configuration	Single
	Direction Type	Bi-Directional
	Maximum Clamping Voltage	18.2V
	Minimum Breakdown Voltage	12.4V
	Mounting Type	Through Hole
	Package Type	DO-204AC
	Maximum Reverse Stand-off Voltage	11V
	Pin Count	2
	Peak Pulse Power Dissipation	600W
	Maximum Peak Pulse Current	33A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+175 °C
	Dimensions	3.6 (Dia.) x 7.6mm
	Maximum Reverse Leakage Current	5µA
	Diameter	3.6mm
	Length	7.6mm
	Test Current	1mA

	Select all
	Brand Vishay
	Diode Configuration Single
	Direction Type Bi-Directional
	Maximum Clamping Voltage 18.2V
	Minimum Breakdown Voltage 12.4V
	Mounting Type Through Hole
	Package Type DO-204AC
	Maximum Reverse Stand-off Voltage 11V
	Pin Count 2
	Peak Pulse Power Dissipation 600W
	Maximum Peak Pulse Current 33A
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +175 °C
	Dimensions 3.6 (Dia.) x 7.6mm
	Maximum Reverse Leakage Current 5µA
	Diameter 3.6mm
	Length 7.6mm
	Test Current 1mA

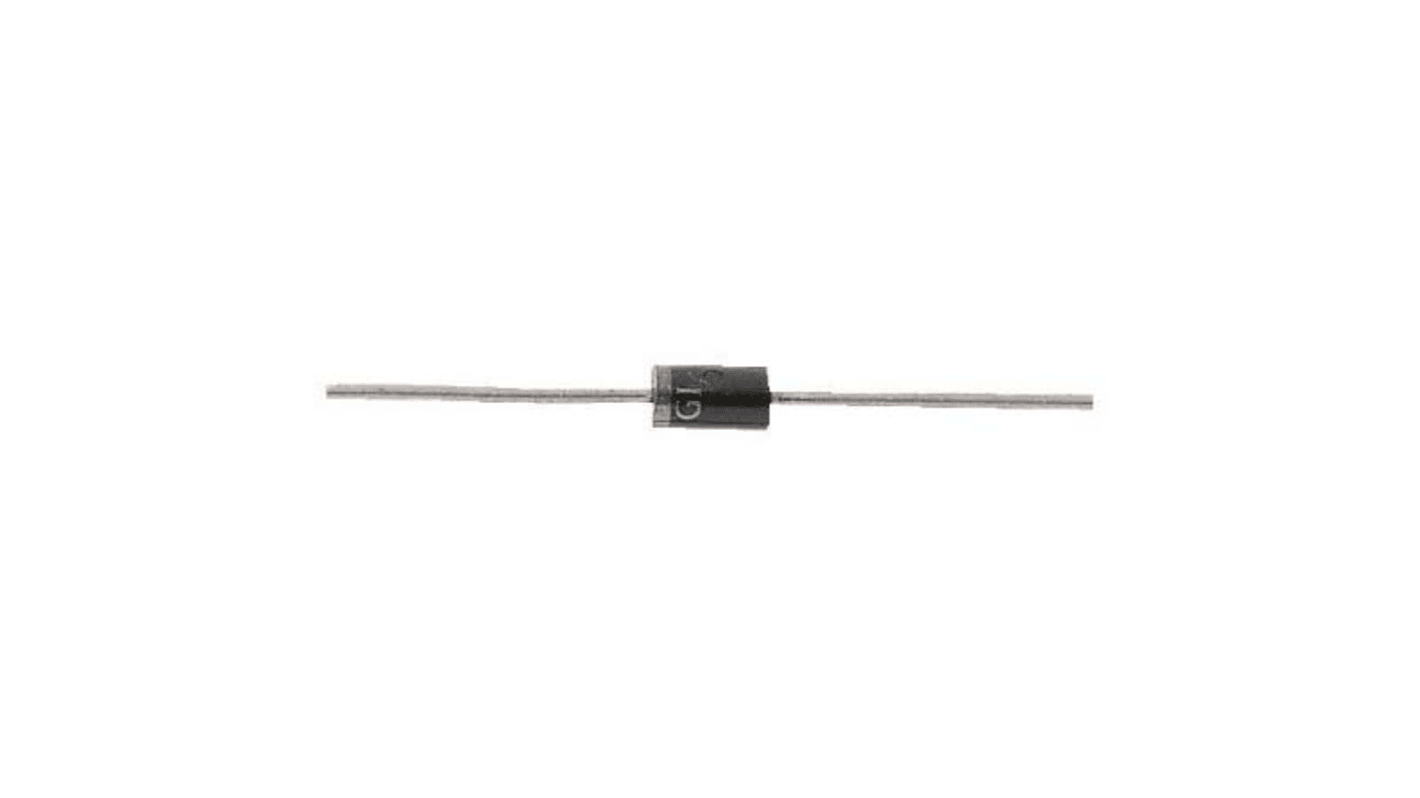

Vishay P6KE13CA-E3/54, Bi-Directional TVS Diode, 600W, 2-Pin DO-204AC

FREE delivery for orders over MYR500.00

TRANSZORB® Transient Voltage Suppressors Axial Bidirectional 600W, Vishay Semiconductor
