Units	Per Unit	Per Reel**
4000 - 4000	MYR2.071	MYR8,284.00
8000 - 12000	MYR2.025	MYR8,100.00
16000 +	MYR1.988	MYR7,952.00

Select all	Attribute	Value
	Brand	Vishay
	Direction Type	Bi-Directional
	Diode Configuration	Single
	Maximum Clamping Voltage	17V
	Minimum Breakdown Voltage	11.1V
	Mounting Type	Through Hole
	Package Type	DO-204AC
	Maximum Reverse Stand-off Voltage	10V
	Pin Count	2
	Peak Pulse Power Dissipation	500W
	Maximum Peak Pulse Current	29.4A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+175 °C
	Dimensions	7.6 x 3.6mm
	Maximum Reverse Leakage Current	1µA
	Length	7.6mm
	Test Current	1mA
	Diameter	3.6mm

	Select all
	Brand Vishay
	Direction Type Bi-Directional
	Diode Configuration Single
	Maximum Clamping Voltage 17V
	Minimum Breakdown Voltage 11.1V
	Mounting Type Through Hole
	Package Type DO-204AC
	Maximum Reverse Stand-off Voltage 10V
	Pin Count 2
	Peak Pulse Power Dissipation 500W
	Maximum Peak Pulse Current 29.4A
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +175 °C
	Dimensions 7.6 x 3.6mm
	Maximum Reverse Leakage Current 1µA
	Length 7.6mm
	Test Current 1mA
	Diameter 3.6mm

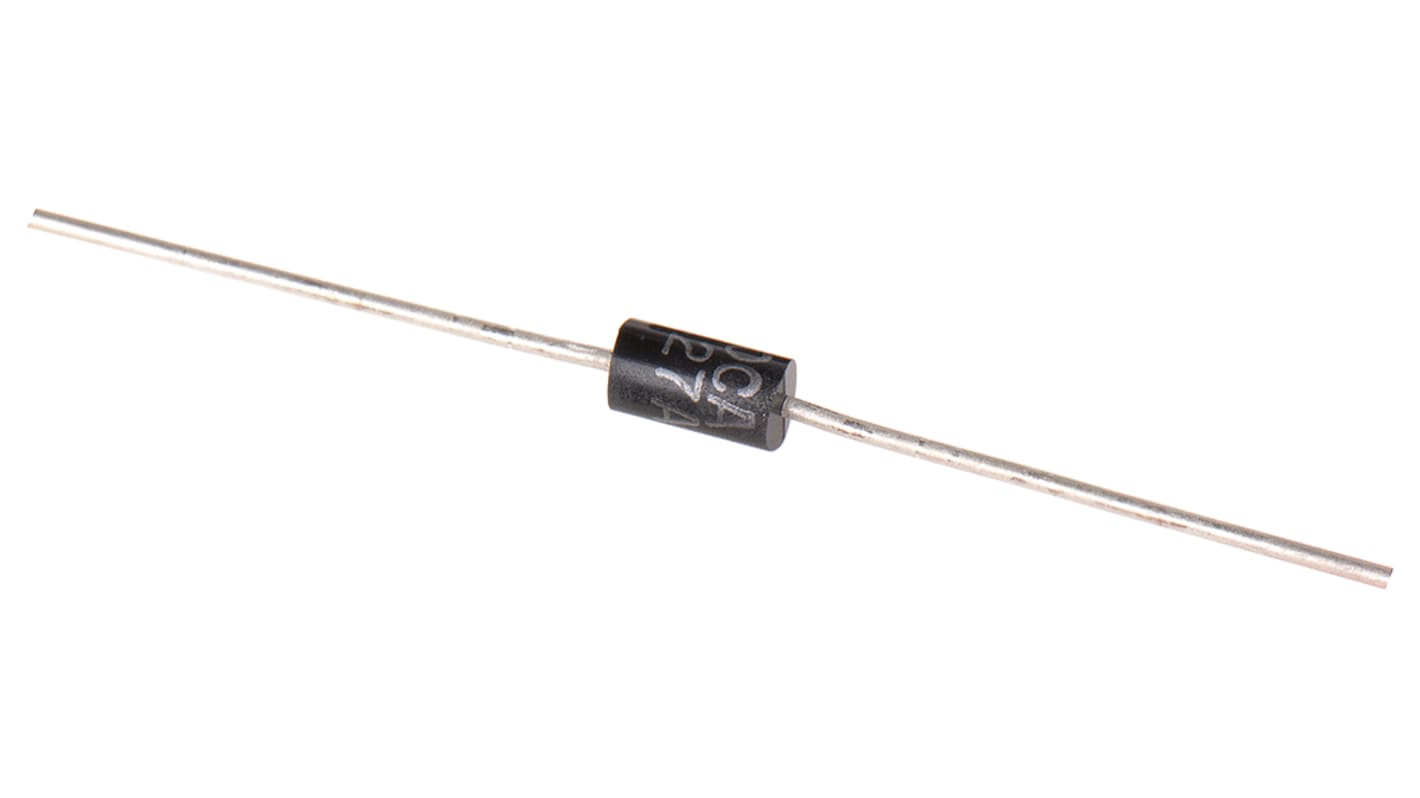

Vishay SA10CA-E3/54, Bi-Directional TVS Diode, 500W, 2-Pin DO-204AC

FREE delivery for orders over MYR500.00

TRANSZORB® Transient Voltage Suppressors Axial Bidirectional 500W, Vishay Semiconductor
