Units	Per Unit	Per Reel**
7500 - 7500	MYR0.454	MYR3,405.00
15000 - 22500	MYR0.444	MYR3,330.00
30000 +	MYR0.436	MYR3,270.00

Select all	Attribute	Value
	Brand	Fagor Electronica
	Direction Type	Uni-Directional
	Diode Configuration	Single
	Maximum Clamping Voltage	53.9V
	Minimum Breakdown Voltage	37.1V
	Mounting Type	Surface Mount
	Package Type	DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage	33.3V
	Pin Count	2
	Peak Pulse Power Dissipation	400W
	Maximum Peak Pulse Current	7.8A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-65 °C
	Dimensions	5.1 x 2.6 x 2mm
	Maximum Operating Temperature	+150 °C
	Length	5.1mm
	Surge Current Rating	40A
	Height	2mm
	Maximum Reverse Leakage Current	1µA
	Width	2.6mm
	Test Current	1mA
	Working Voltage	39V

	Select all
	Brand Fagor Electronica
	Direction Type Uni-Directional
	Diode Configuration Single
	Maximum Clamping Voltage 53.9V
	Minimum Breakdown Voltage 37.1V
	Mounting Type Surface Mount
	Package Type DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage 33.3V
	Pin Count 2
	Peak Pulse Power Dissipation 400W
	Maximum Peak Pulse Current 7.8A
	Number of Elements per Chip 1
	Minimum Operating Temperature -65 °C
	Dimensions 5.1 x 2.6 x 2mm
	Maximum Operating Temperature +150 °C
	Length 5.1mm
	Surge Current Rating 40A
	Height 2mm
	Maximum Reverse Leakage Current 1µA
	Width 2.6mm
	Test Current 1mA
	Working Voltage 39V

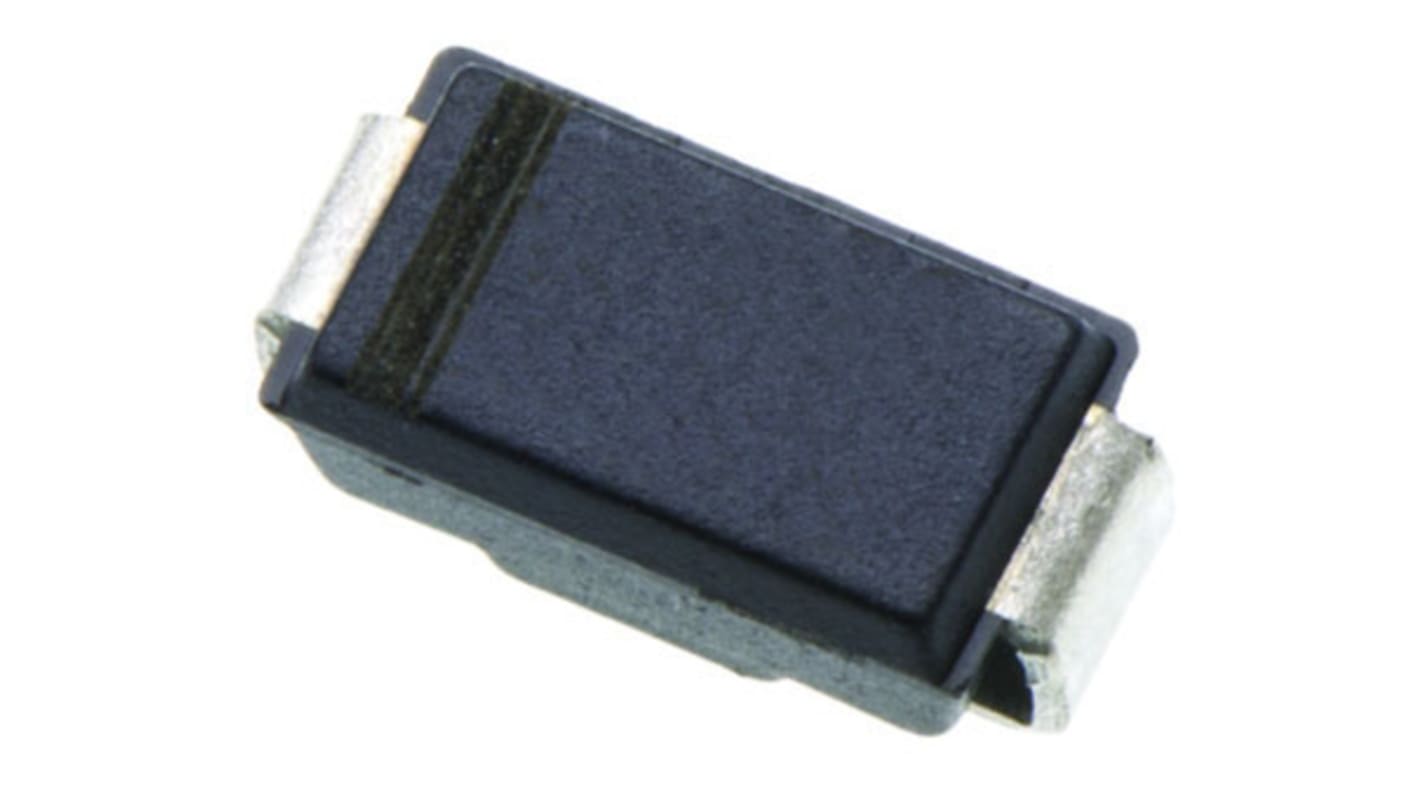

Fagor Electronica P4SMA39A, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC

FREE delivery for orders over MYR500.00

P4SMA Series 400W TVS Diodes
