Units	Per Unit	Per Reel**
3000 - 3000	MYR0.907	MYR2,721.00
6000 - 9000	MYR0.887	MYR2,661.00
12000 +	MYR0.871	MYR2,613.00

Select all	Attribute	Value
	Brand	onsemi
	Direction Type	Uni-Directional
	Diode Configuration	Complex Array
	Maximum Clamping Voltage	10V
	Minimum Breakdown Voltage	5.5V
	Mounting Type	Surface Mount
	Package Type	TSOP
	Maximum Reverse Stand-off Voltage	5V
	Pin Count	6
	Maximum Peak Pulse Current	12A
	ESD Protection	Yes
	Number of Elements per Chip	3
	Minimum Operating Temperature	-40 °C
	Dimensions	3.1 x 1.7 x 1mm
	Maximum Operating Temperature	+125 °C
	Maximum Reverse Leakage Current	1µA
	Width	1.7mm
	Test Current	1mA
	Length	3.1mm
	Height	1mm

	Select all
	Brand onsemi
	Direction Type Uni-Directional
	Diode Configuration Complex Array
	Maximum Clamping Voltage 10V
	Minimum Breakdown Voltage 5.5V
	Mounting Type Surface Mount
	Package Type TSOP
	Maximum Reverse Stand-off Voltage 5V
	Pin Count 6
	Maximum Peak Pulse Current 12A
	ESD Protection Yes
	Number of Elements per Chip 3
	Minimum Operating Temperature -40 °C
	Dimensions 3.1 x 1.7 x 1mm
	Maximum Operating Temperature +125 °C
	Maximum Reverse Leakage Current 1µA
	Width 1.7mm
	Test Current 1mA
	Length 3.1mm
	Height 1mm

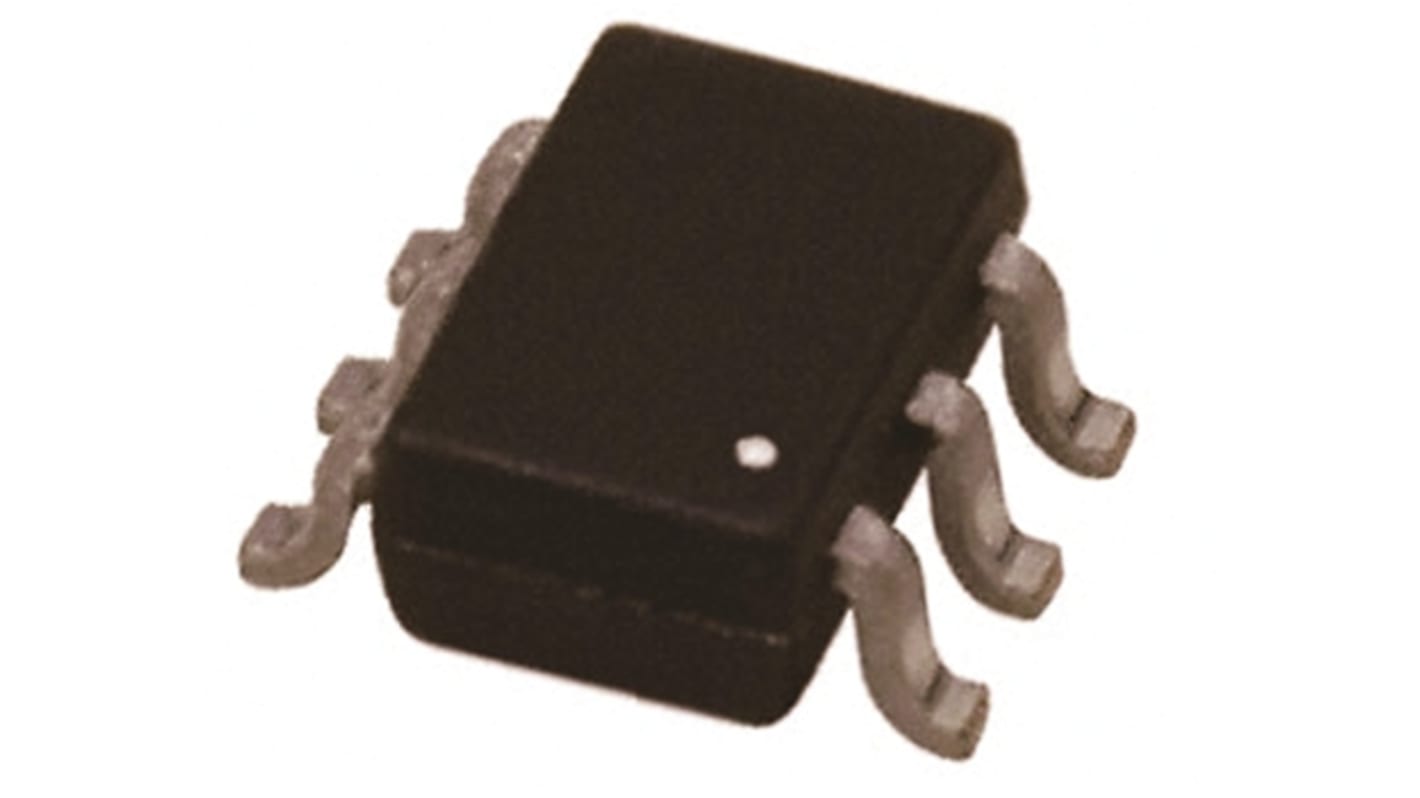

onsemi NUP2114UCMR6T1G, Triple-Element Uni-Directional TVS Diode Array, 6-Pin TSOP

FREE delivery for orders over MYR500.00

ESD Protectors, ON Semiconductor
