Units	Per Unit	Per Reel**
500 - 500	MYR5.41	MYR2,705.00
1000 - 1500	MYR5.291	MYR2,645.50
2000 +	MYR5.193	MYR2,596.50

Select all	Attribute	Value
	Brand	Wurth Elektronik
	Diode Configuration	Single
	Direction Type	Uni-Directional
	Maximum Clamping Voltage	13.6V
	Minimum Breakdown Voltage	9.36V
	Mounting Type	Surface Mount
	Package Type	DO-214AB (SMC)
	Pin Count	2
	Peak Pulse Power Dissipation	3000W
	Maximum Peak Pulse Current	300A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-65 °C
	Maximum Operating Temperature	+150 °C
	Dimensions	6.86 x 5.9 x 2.34mm
	Test Current	1mA
	Height	2.34mm
	Maximum Reverse Leakage Current	50µA
	Width	5.9mm
	Length	6.86mm

	Select all
	Brand Wurth Elektronik
	Diode Configuration Single
	Direction Type Uni-Directional
	Maximum Clamping Voltage 13.6V
	Minimum Breakdown Voltage 9.36V
	Mounting Type Surface Mount
	Package Type DO-214AB (SMC)
	Pin Count 2
	Peak Pulse Power Dissipation 3000W
	Maximum Peak Pulse Current 300A
	Number of Elements per Chip 1
	Minimum Operating Temperature -65 °C
	Maximum Operating Temperature +150 °C
	Dimensions 6.86 x 5.9 x 2.34mm
	Test Current 1mA
	Height 2.34mm
	Maximum Reverse Leakage Current 50µA
	Width 5.9mm
	Length 6.86mm

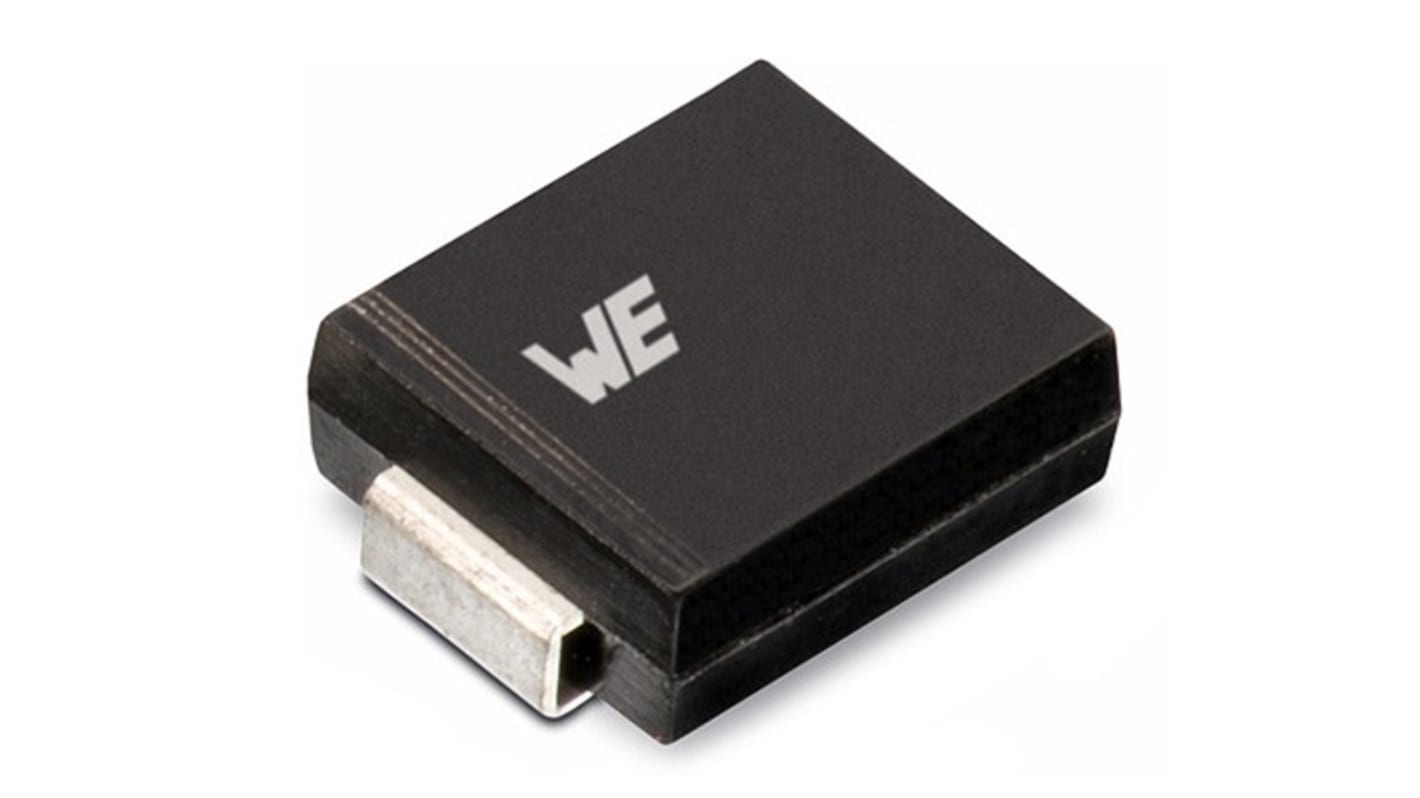

Wurth Elektronik 824550800, Uni-Directional TVS Diode, 3000W, 2-Pin DO-214AB

FREE delivery for orders over MYR500.00

Unidirectional TVS Diodes, 3000W, Wurth Elektronik

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
