Nexperia NUP1301,215, Dual-Element Uni-Directional ESD Protection Array, 200W, 3-Pin SOT-23

RS Stock No.:: 146-0528
Mfr. Part No.:: NUP1301,215
Manufacturer:: Nexperia

Nexperia NUP1301,215, Dual-Element Uni-Directional ESD Protection Array, 200W, 3-Pin SOT-23

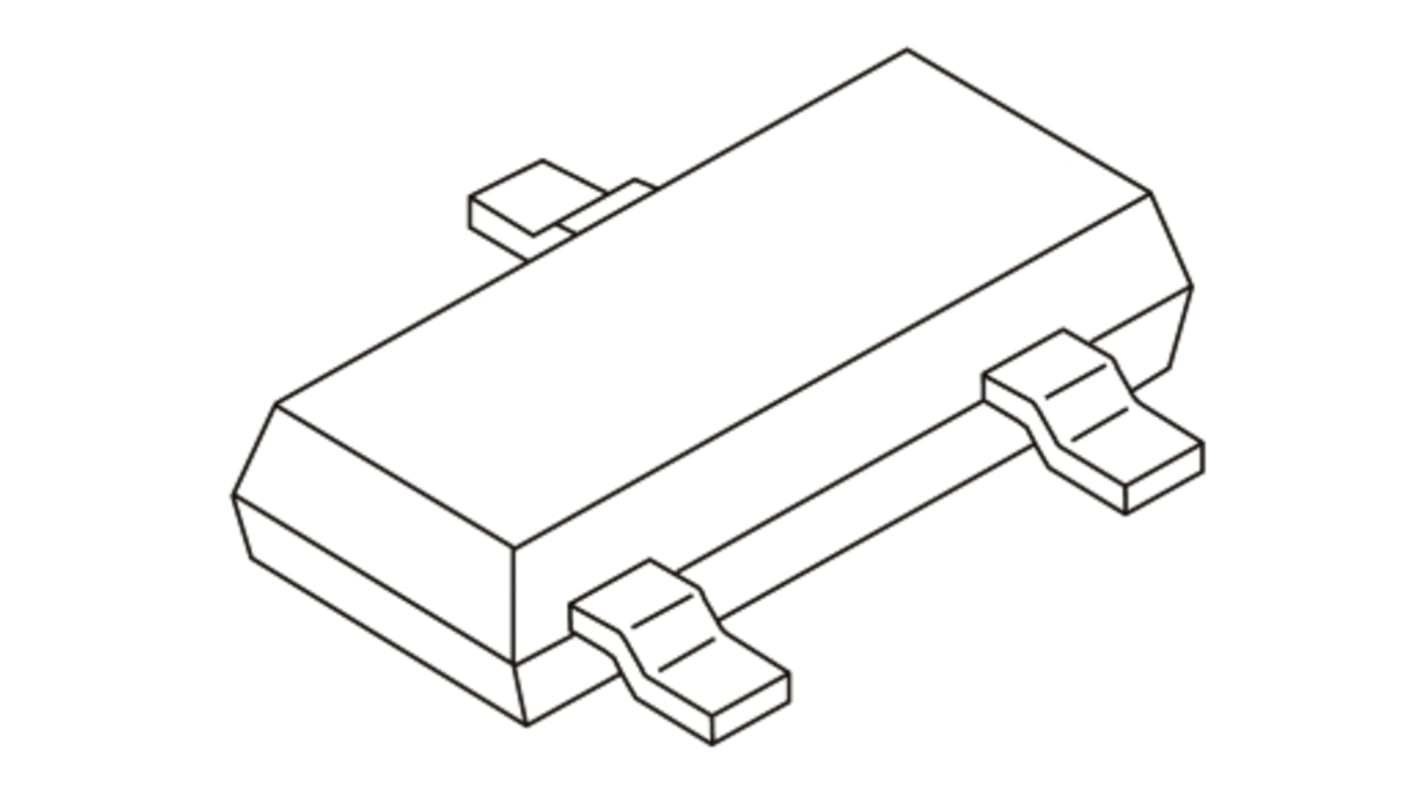

This image is representative of the product range

Bulk discount available

Subtotal (1 reel of 3000 units)**

MYR777.00

3000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Real time qty checker

Units	Per Unit	Per Reel**
3000 - 3000	MYR0.259	MYR777.00
6000 - 9000	MYR0.254	MYR762.00
12000 +	MYR0.249	MYR747.00

**price indicative

RS Stock No.:: 146-0528
Mfr. Part No.:: NUP1301,215
Manufacturer:: Nexperia

NUP1301 Ultra Low Capacitance ESD Protection Array Data Sheet
ESD Control Selection Guide V1

Attribute	Value
Diode Configuration	Series
Direction Type	Uni-Directional
Maximum Clamping Voltage	20V
Minimum Breakdown Voltage	100V
Mounting Type	Surface Mount
Package Type	SOT-23
Maximum Reverse Stand-off Voltage	80V
Pin Count	3
Peak Pulse Power Dissipation	200W
Maximum Peak Pulse Current	11A
ESD Protection	Yes
Number of Elements per Chip	2
Minimum Operating Temperature	-55 °C
Dimensions	3 x 1.4 x 1.1mm
Maximum Operating Temperature	+150 °C
Length	3mm
Height	1.1mm
Width	1.4mm
Test Current	100µA
Maximum Reverse Leakage Current	35µA

Nexperia NUP1301,215, Dual-Element Uni-Directional ESD Protection Array, 200W, 3-Pin SOT-23

FREE delivery for orders over MYR500.00

NUP1301 Series, Ultra Low Capacitance Rail-to-Rail ESD Protection Diodes, Nexperia

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
