onsemi 4-Element Uni-Directional EMI Filter & ESD Protector, 8-Pin UDFN-1713
- RS Stock No.:
- 145-4180
- Mfr. Part No.:
- EMI7204MUTAG
- Manufacturer:
- onsemi

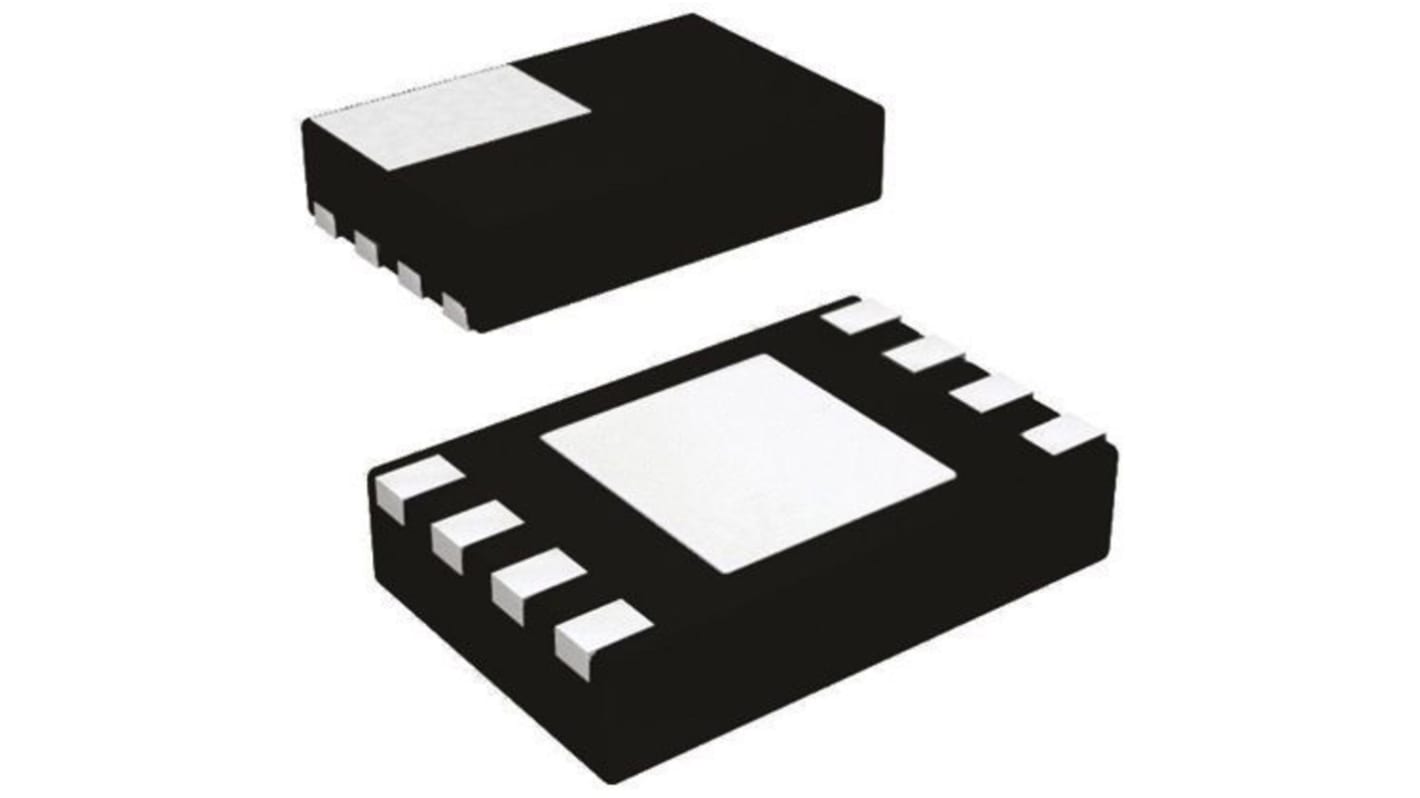

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 3000 units)*
MYR4,590.00
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 18 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | MYR1.53 | MYR4,590.00 |
| 6000 - 9000 | MYR1.496 | MYR4,488.00 |
| 12000 + | MYR1.468 | MYR4,404.00 |
*price indicative
- RS Stock No.:
- 145-4180
- Mfr. Part No.:
- EMI7204MUTAG
- Manufacturer:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | EMI Filter & ESD Protector | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Complex Array | |
| Minimum Breakdown Voltage Vbr | 9V | |
| Mount Type | Surface | |
| Package Type | UDFN-1713 | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 8 | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -40°C | |
| Test Current It | 1mA | |
| Maximum Operating Temperature | 85°C | |
| Number of Elements per Chip | 4 | |
| Standards/Approvals | No | |
| Height | 0.5mm | |
| Length | 1.7mm | |
| Maximum Reverse Leakage Current | 1μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type EMI Filter & ESD Protector | ||
Direction Type Uni-Directional | ||
Diode Configuration Complex Array | ||
Minimum Breakdown Voltage Vbr 9V | ||
Mount Type Surface | ||
Package Type UDFN-1713 | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 8 | ||
ESD Protection Yes | ||
Minimum Operating Temperature -40°C | ||
Test Current It 1mA | ||
Maximum Operating Temperature 85°C | ||
Number of Elements per Chip 4 | ||
Standards/Approvals No | ||
Height 0.5mm | ||
Length 1.7mm | ||
Maximum Reverse Leakage Current 1μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
EMI Filter with ESD Protection, ON Semiconductor
Transient Voltage Suppressors, ON Semiconductor
