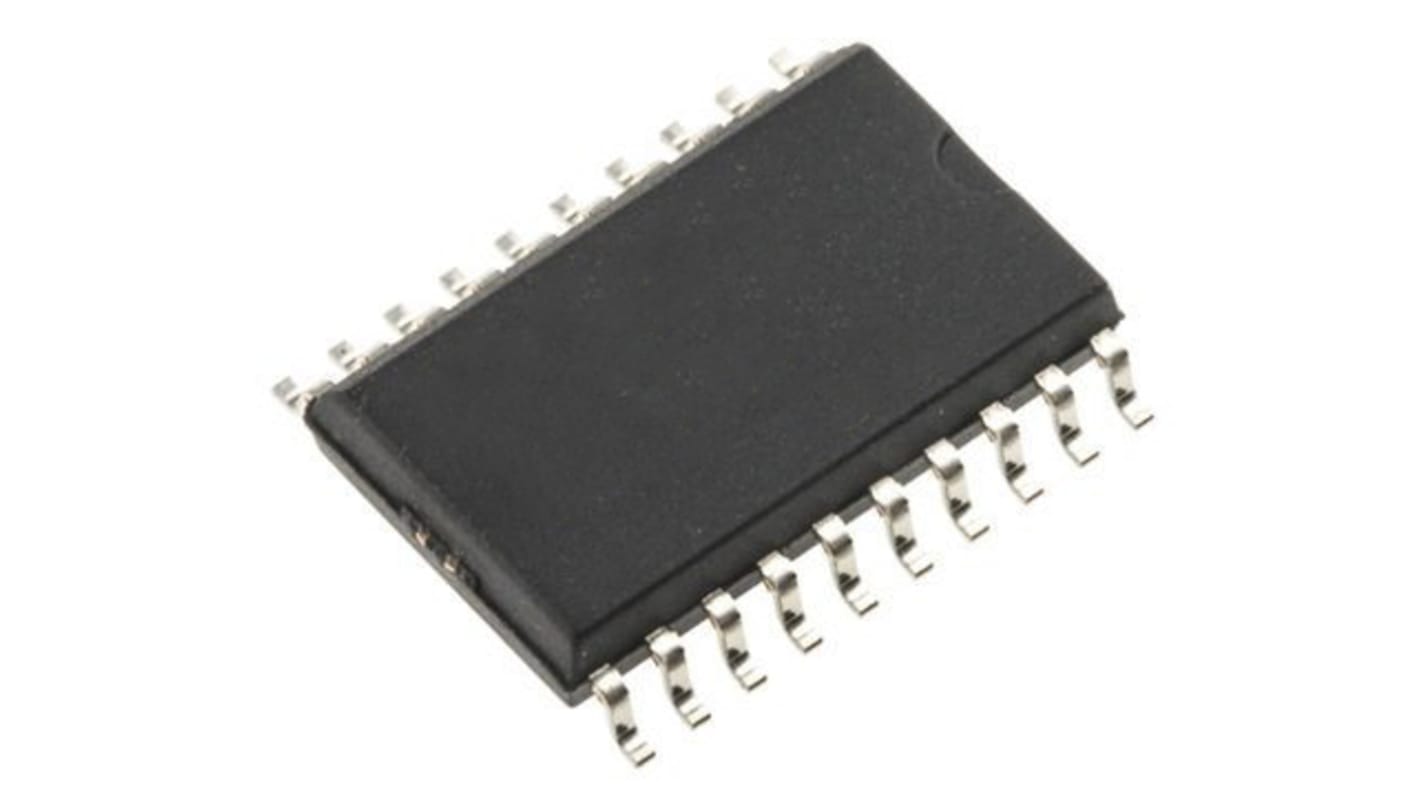

onsemi MC74LCX541DWG, Voltage Level Shifter Buffer 1, 20-Pin SOIC
- RS Stock No.:
- 186-8438
- Mfr. Part No.:
- MC74LCX541DWG
- Manufacturer:
- onsemi
Subtotal (1 pack of 25 units)**
MYR80.13
Temporarily out of stock - back order for despatch 08/08/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Pack** |
|---|---|---|
| 25 + | MYR3.205 | MYR80.125 |
**price indicative
- RS Stock No.:
- 186-8438
- Mfr. Part No.:
- MC74LCX541DWG
- Manufacturer:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Family | LCX | |
| Mounting Type | Surface Mount | |
| Number of Elements per Chip | 1 | |
| Package Type | SOIC | |
| Output Type | TTL | |
| Pin Count | 20 | |
| Dimensions | 12.95 x 7.6 x 2.4mm | |
| Logic Function | Buffer | |
| Maximum Low Level Output Current | 24mA | |
| Maximum High Level Output Current | -24mA | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Operating Supply Voltage | 2 to 3.6 V | |
| Maximum Propagation Delay Time @ Maximum CL | 7.5 ns @ 50 pF | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 2 V | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Logic Family LCX | ||
Mounting Type Surface Mount | ||
Number of Elements per Chip 1 | ||
Package Type SOIC | ||
Output Type TTL | ||
Pin Count 20 | ||
Dimensions 12.95 x 7.6 x 2.4mm | ||
Logic Function Buffer | ||
Maximum Low Level Output Current 24mA | ||
Maximum High Level Output Current -24mA | ||
Propagation Delay Test Condition 50pF | ||
Maximum Operating Supply Voltage 2 to 3.6 V | ||
Maximum Propagation Delay Time @ Maximum CL 7.5 ns @ 50 pF | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 2 V | ||
Minimum Operating Temperature -40 °C | ||
