Units	Per Unit	Per Pack**
10 - 240	MYR6.524	MYR65.24
250 - 490	MYR6.384	MYR63.84
500 +	MYR6.193	MYR61.93

Select all	Attribute	Value
	Brand	onsemi
	Logic Family	LCX
	Mounting Type	Surface Mount
	Number of Elements per Chip	1
	Package Type	TSSOP
	Output Type	3 State
	Pin Count	48
	Dimensions	12.5 x 6.1 x 0.9mm
	Maximum Low Level Output Current	24mA
	Maximum High Level Output Current	-24mA
	Translation	Bi-Directional
	Propagation Delay Test Condition	50pF
	Maximum Operating Supply Voltage	2 to 3.6 V
	Maximum Propagation Delay Time @ Maximum CL	5.2 ns @ 50 pF
	Maximum Operating Temperature	+85 °C
	Minimum Operating Supply Voltage	2 V
	Minimum Operating Temperature	-40 °C

	Select all
	Brand onsemi
	Logic Family LCX
	Mounting Type Surface Mount
	Number of Elements per Chip 1
	Package Type TSSOP
	Output Type 3 State
	Pin Count 48
	Dimensions 12.5 x 6.1 x 0.9mm
	Maximum Low Level Output Current 24mA
	Maximum High Level Output Current -24mA
	Translation Bi-Directional
	Propagation Delay Test Condition 50pF
	Maximum Operating Supply Voltage 2 to 3.6 V
	Maximum Propagation Delay Time @ Maximum CL 5.2 ns @ 50 pF
	Maximum Operating Temperature +85 °C
	Minimum Operating Supply Voltage 2 V
	Minimum Operating Temperature -40 °C

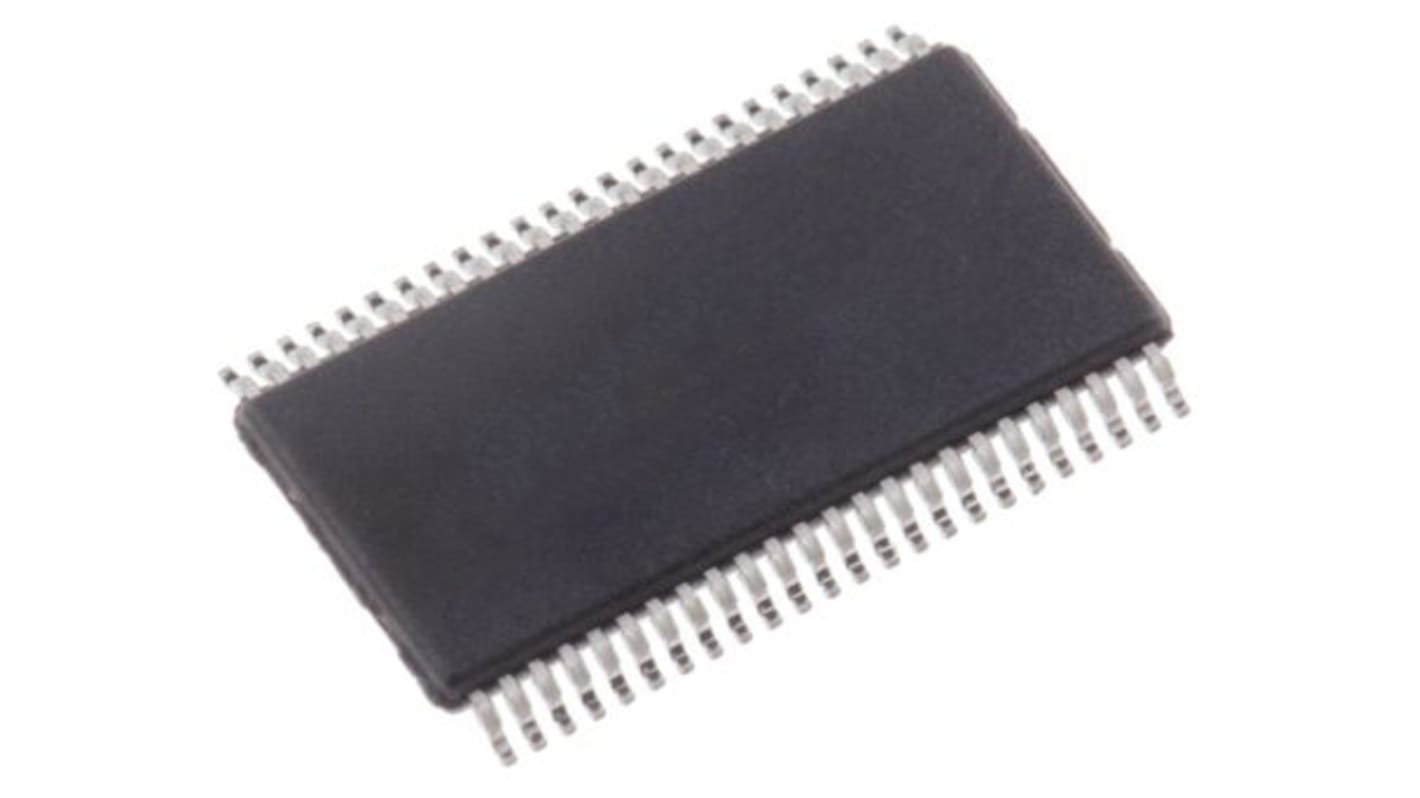

onsemi 74LCX16245MTDX, Voltage Level Shifter 1 Bi-Directional, 48-Pin TSSOP

FREE delivery for orders over MYR500.00

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
