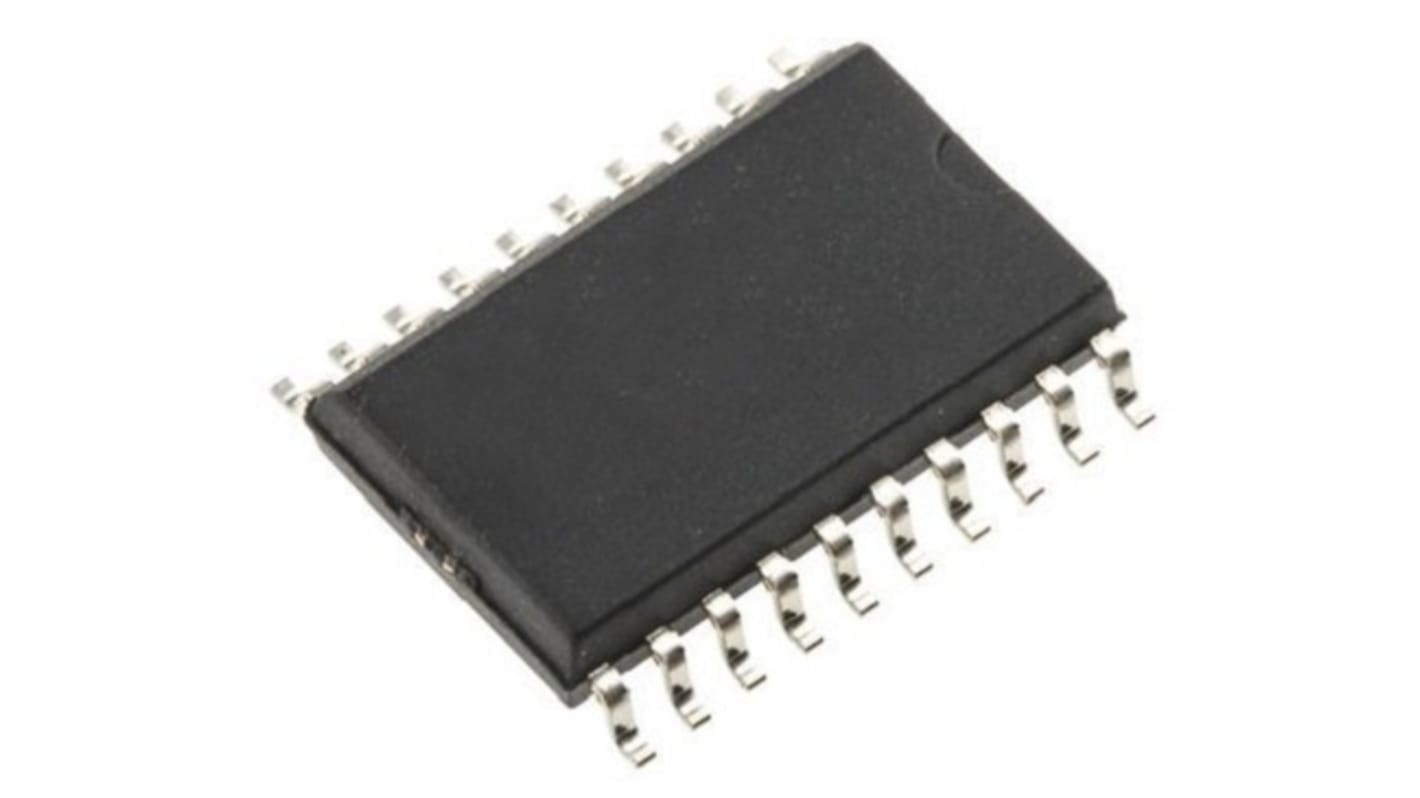

onsemi 74ACT245SC, Voltage Level Translator 1, 20-Pin SOIC

The AC/ACT245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus-oriented applications. Current sinking capability is 24 mA at both the A and B ports. The Transmit/Receive (T/R#) input determines the direction of data flow through the bidirectional transceiver. Transmit (active-HIGH) enables data from A ports to B ports, Receive (active-LOW) enables data from B ports to A ports. The Output Enable input, when HIGH, disables both A and B ports by placing them in a HIGH Z condition.

ICC and IOZ reduced by 50%
Non-inverting buffers
Bidirectional data path
A and B outputs source/sink 24 mA
ACT245 has TTL-compatible inputs
Applications
This product is general usage and suitable for many different applications.
