Texas Instruments, Voltage Level Shifter Voltage Level Shifter 4 Voltage Level Shifter, 16-Pin TSSOP
- RS Stock No.:
- 162-7236
- Mfr. Part No.:
- CD40109BPW
- Manufacturer:
- Texas Instruments

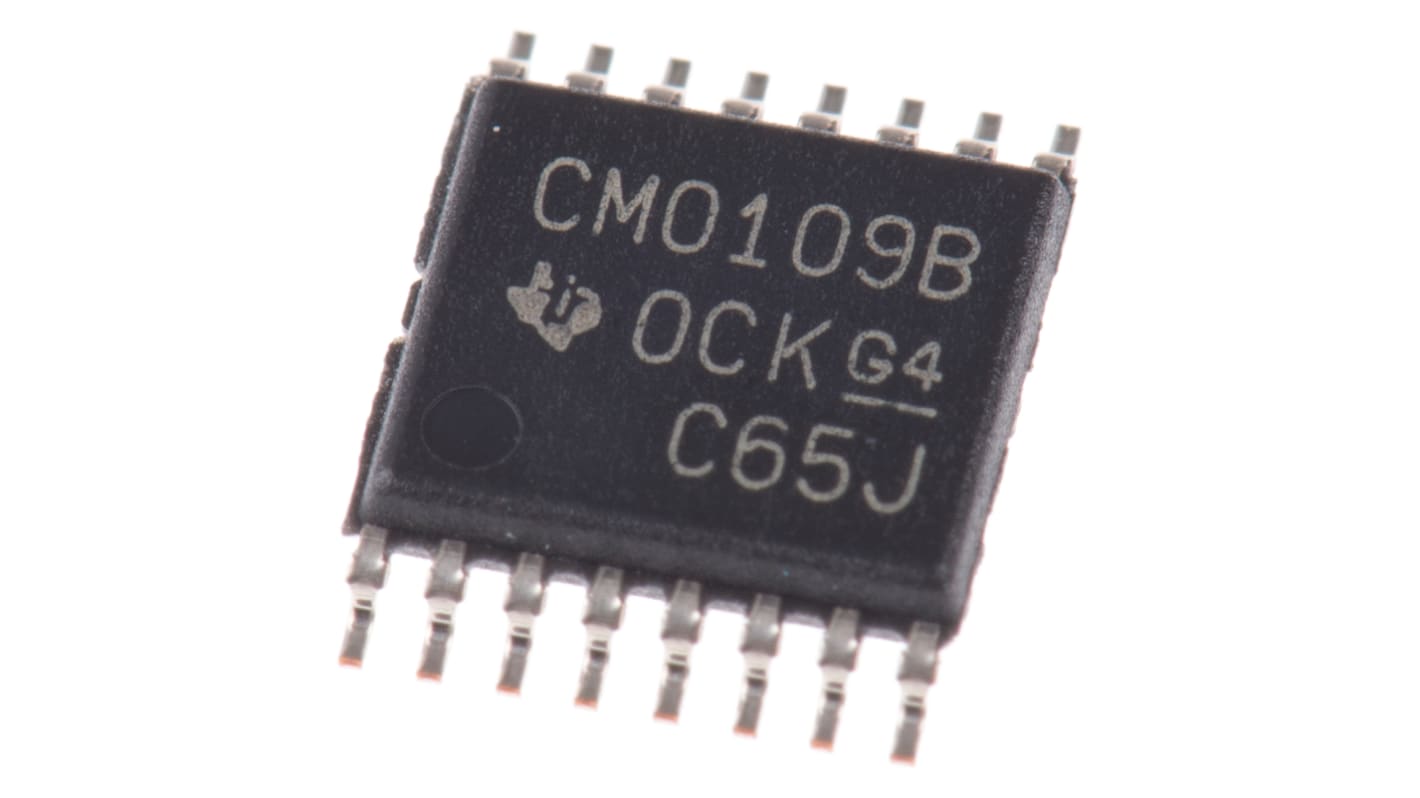

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 90 units)*
MYR481.23
FREE delivery for orders over RM 500.00
Limited stock
- Plus 900 left, shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 90 - 90 | MYR5.347 | MYR481.23 |
| 180 - 270 | MYR5.23 | MYR470.70 |
| 360 + | MYR5.133 | MYR461.97 |
*price indicative
- RS Stock No.:
- 162-7236
- Mfr. Part No.:
- CD40109BPW
- Manufacturer:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Direction Type | Bi-Directional | |
| Product Type | Voltage Level Shifter | |
| Logic Family | 4000 | |
| Maximum Propagation Delay Time @ CL | 600ns | |
| Mount Type | Surface | |
| Number of Elements per Chip | 4 | |
| Package Type | TSSOP | |
| Pin Count | 16 | |
| Output Type | 3 State | |
| Logic Function | Voltage Level Shifter | |
| Maximum Low Level Output Current | 4.2mA | |
| Maximum High Level Output Current | -4.2mA | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 18V | |
| Translation | Voltage Level Shifter | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.15mm | |
| Standards/Approvals | No | |
| Series | CD40109 | |
| Length | 5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Direction Type Bi-Directional | ||
Product Type Voltage Level Shifter | ||
Logic Family 4000 | ||
Maximum Propagation Delay Time @ CL 600ns | ||
Mount Type Surface | ||
Number of Elements per Chip 4 | ||
Package Type TSSOP | ||
Pin Count 16 | ||
Output Type 3 State | ||
Logic Function Voltage Level Shifter | ||
Maximum Low Level Output Current 4.2mA | ||
Maximum High Level Output Current -4.2mA | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 18V | ||
Translation Voltage Level Shifter | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.15mm | ||
Standards/Approvals No | ||
Series CD40109 | ||
Length 5mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
4000 Series Inverters & Buffers, Texas Instruments
Texas Instruments range of Inverters and Buffers from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
