RS PRO Constant Wattage, Parallel Circuit Trace Heating Cable, 240 V ac, 200 °C, -60 °C, 50 m

RS Stock No.:: 665-7419
Distrelec Article No.:: 303-95-311
Manufacturer:: RS PRO

RS PRO Constant Wattage, Parallel Circuit Trace Heating Cable, 240 V ac, 200 °C, -60 °C, 50 m

Bulk discount available

Subtotal (1 reel of 50 metres)*

MYR2,158.47

FREE delivery for orders over RM 500.00

Temporarily out of stock

11 unit(s) shipping from 05 February 2026
Plus 17 unit(s) shipping from 05 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 4	MYR2,158.47	MYR43.169
5 +	MYR1,776.42	MYR35.528

*price indicative

RS Stock No.:: 665-7419
Distrelec Article No.:: 303-95-311
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Trace Heating Cable
	Cable Type	Constant Wattage, Parallel Circuit
	Self Regulating	No
	Voltage	240 V ac
	Maximum Operating Temperature	200°C
	Minimum Operating Temperature	-60°C
	Length	50m
	Sheath Material	Silicone Rubber
	Standards/Approvals	No
	Hazardous Area Certification	No

	Select all
	Brand RS PRO
	Product Type Trace Heating Cable
	Cable Type Constant Wattage, Parallel Circuit
	Self Regulating No
	Voltage 240 V ac
	Maximum Operating Temperature 200°C
	Minimum Operating Temperature -60°C
	Length 50m
	Sheath Material Silicone Rubber
	Standards/Approvals No
	Hazardous Area Certification No

RoHS Status: Not Applicable

COO (Country of Origin):: GB

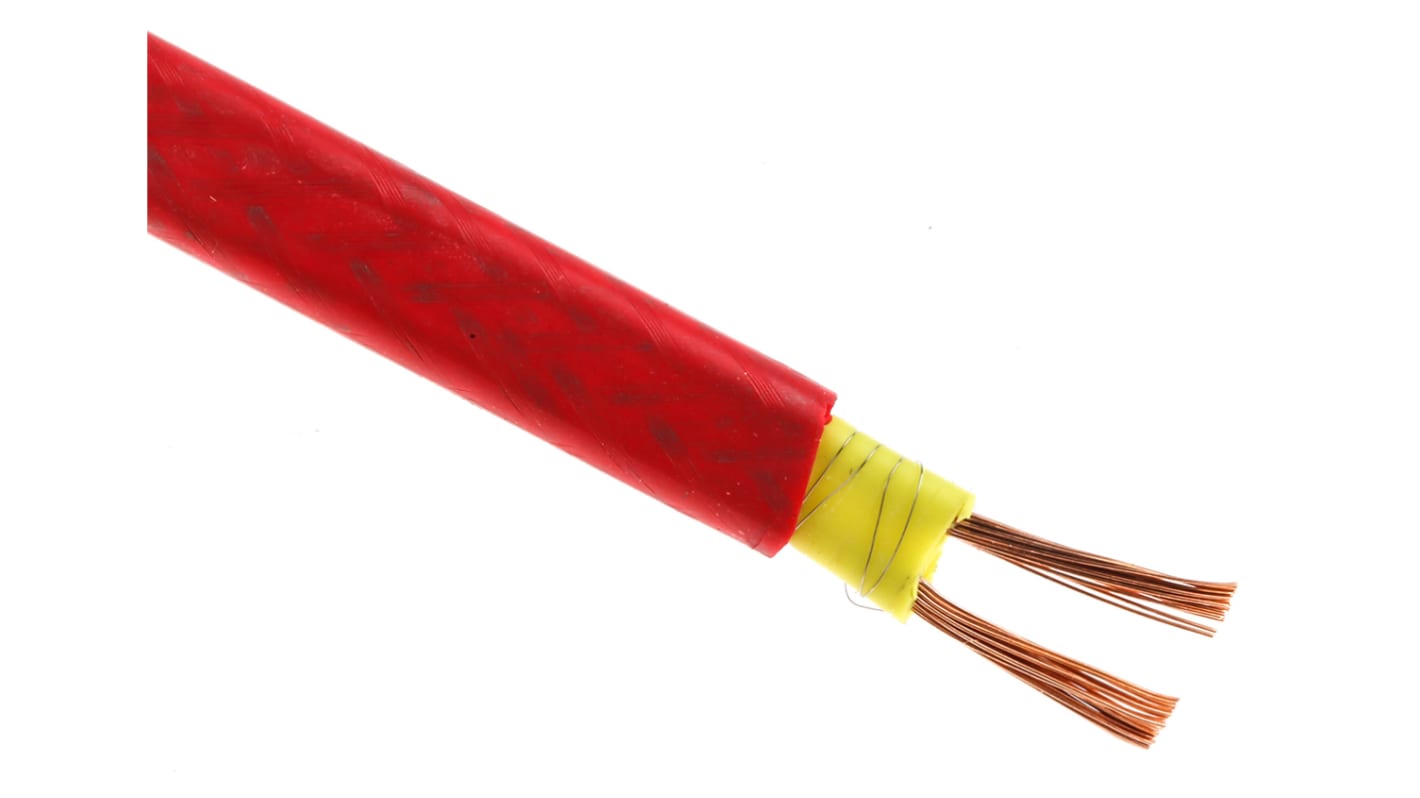

RS PRO 15W/m Trace Heating Cable Constant Wattage, Parallel Circuit, 240 V, 50 m

Water expands as it freezes, which can cause substantial damage and expense to pipework if it bursts. This trace heating cable from our RS PRO range works to maintain the internal temperature of pipes, preventing bursting, blockages and external snow build-up.

Using a fixed resistance filament to provide its heat load, this constant-wattage cable administers controllable heat to combat no-flow conditions in pipes. It can be cut to length from its reel and site-terminated to suit pipework up to 50 metres in length. Constant-wattage cables require temperature controls for efficiency and safety. They can be simply installed to work with thermostats or temperature monitoring devices.

Suitable for internal and external freeze protection as well as temperature maintenance, this cable can be used everywhere from hazardous industrial zones to domestic garages. It has an operating range -60°C to 200°C and comes in a durable sheath of silicone rubber.

Features and Benefits

• Constant wattage, parallel circuit cable

• Output per metre of 15 W

• Voltage rating of 240 V

• Operating temperature range from -60°C to 200°C

• Cable length of 50 m

• Silicone rubber sheath

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Silicone Insulated Parallel Circuit Heating Tape

RS PRO range of parallel circuit heating tape, with a constant wattage output for process temperature maintenance applications. This tape is flexible enough to allow it to be spiralled around a suitable pipe or vessel. The heating tape consists of several short heating zones each connected across a pair of continuous bus-wire conductors.

The main role of heat trace cables is stopping pipework from freezing. When water pipes freeze and burst, this can cause a great deal of damage and expense to homeowners and businesses. Heating cables provide controllable heat which helps pipes from freezing and keep liquids moving.

RS PRO have a great range of trace heating products which can help protect pipes from freezing, by maintaining the right temperature inside the pipe.

Heat tapes are a flexible solution that can be used to heat any surface or body requiring fast and efficient direct-contact heating.

Trace heating options include:

703-3108 - 15W/m, 110 V, 20m cable

703-3101 - 15W/m,110 V, 50m cable

703-3105 - 15W/m, 110 V, 100m cable

256-244 - 15W/m, 240 V, 20m cable

665-7419 - 15W/m, 240 V, 50m cable

665-7413 - 15W/m, 240 V, 100m cable

256-109 - Trace Heating Termination Kit

Features and Benefits:

Constant wattage per meter, parallel circuit heating tape

Cut to length

Flexible - can be wrapped around pipes

Various lengths available - 20m, 50m or 100m

Voltage ratings either 110 V or 240 V

Typical Applications:

Trace heating cables are electric heating elements designed to provide focused and controllable heat used to prevent pipes, outdoor taps and gutters from freezing, or to maintain a desired temperature on pipes to keep liquids moving.

· For use for internal or external temperature maintenance applications

· Frost protection

· Water, oil and chemical lines

· Sprinkler system mains

· Supply piping

· Not for use in hazardous areas

FAQs

When is trace heating required?

Trace heating cable systems are ideal for protecting pipes from freezing, maintaining the temperature of a hot water system and maintaining process temperatures for smooth and efficient running of process plant equipment.
