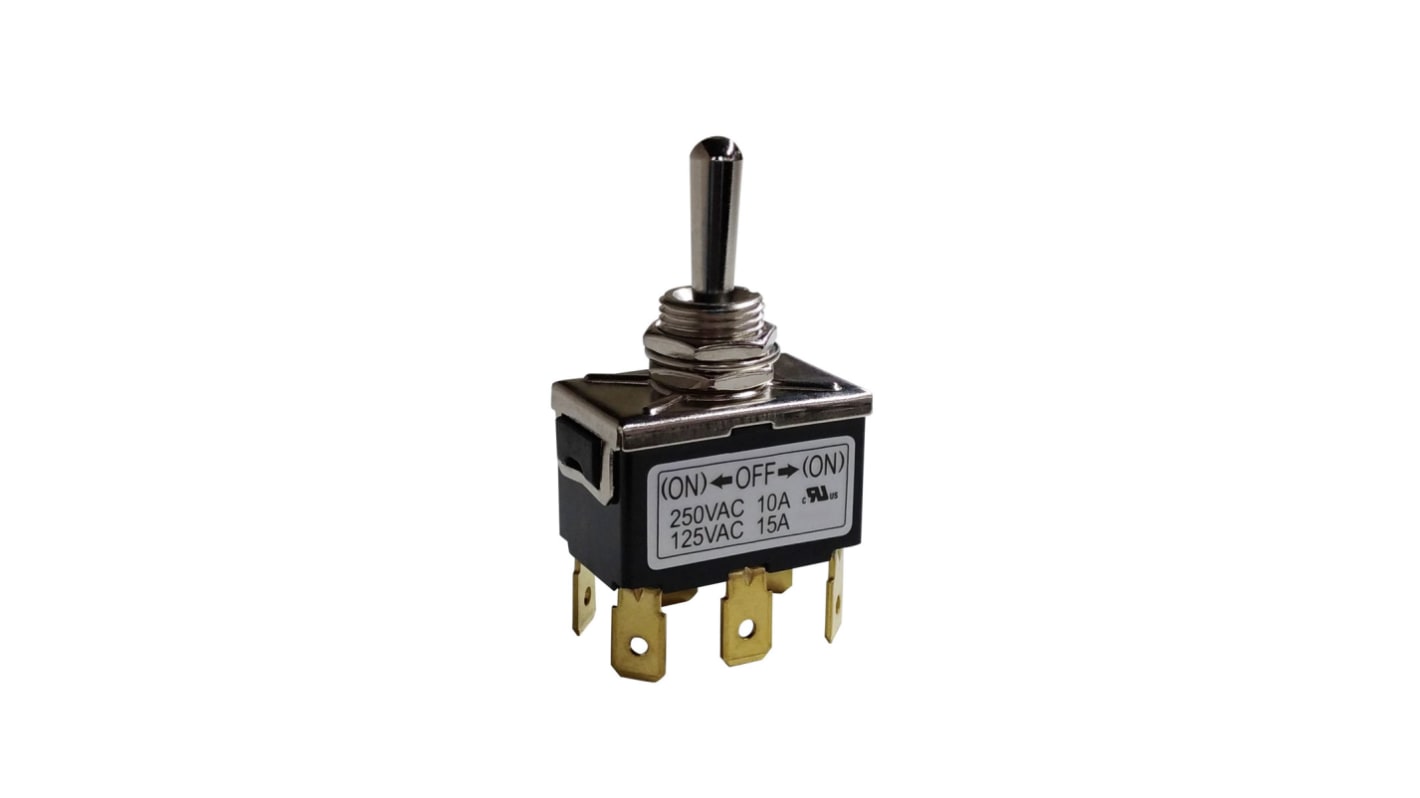

RS PRO Toggle Switch, PCB Mount, (On)-Off-(On), DPDT, Solder Terminal

RS Stock No.:: 206-6987
Manufacturer:: RS PRO

RS PRO Toggle Switch, PCB Mount, (On)-Off-(On), DPDT, Solder Terminal

Bulk discount available

Price Each**

MYR44.40

Temporarily out of stock - back order for despatch 25/03/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 9	MYR44.40
10 - 49	MYR43.47
50 - 99	MYR42.18
100 - 499	MYR40.90
500 +	MYR33.67

**price indicative

RS Stock No.:: 206-6987
Manufacturer:: RS PRO

RS PRO Datasheet

RS PRO DPDT Toggle Switches

Introducing a range of DPDT toggle switches from RS PRO. These high-quality toggle switches offer a double pole double throw contact configuration that has two inputs and four outputs, 10A or 12A contact current ratings, and an operating temperature of -30°C to +85°C. RS PRO DPDT toggle switches are designed with screw or solder tab termination for PCB applications.

Why would you need a DPDT type toggle switch?

DPDT toggles are commonly used to control electric motors and electric linear actuators for example; giving you the capacity to reverse the polarity in the motor so it rotates in two different directions.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.

Note: Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag.

Material Characteristics

• Actuator: Brass

• Bushing: Aluminium die-casting alloy

• O ring: Silicone gasket

• Contact: Silver alloy

• Body: Nylon 66

• Terminals: Brass with tin plating

• Hardware: Steel with trivalent zinc plating

Features and Benefits

• Sealed electrical toggle switch

• Double pole double throw contact

• IP40/ IP68 front panel protection

• Brass actuator

• Operating temperature -30°C to +85°C

• UL & CUL & ENEC15 approved

10A Switch Operations

• On-On; RS stock no: 206-6982

• On-On; RS stock no: 206-6983

• On-Off-On; RS stock no: 206-6984

• On-Off-On; RS stock no: 206-6985

• (On)-Off-(On); RS stock no: 206-6986

• (On)-Off-(On); RS stock no: 206-6987

• (On)-On; RS stock no: 206-6988

• (On)-On; RS stock no: 206-6990

• (On)-Off-On; RS stock no: 206-6991

12A Switch Operations

• Momentary-Off-Momentary; RS stock no: 206-6977

• On-None-(On); RS stock no: 206-6975

• On-Off-On; RS stock no: 206-6976

• On-Off-On; RS stock no: 206-6978

Applications

Telecommunications

Aerospace

Automotive

Instrumentation control

Industrial Control Solutions

Material Handling

Attribute	Value
Contact Configuration	DPDT
Switch Operation	(On)-Off-(On)
Contact Current Rating	10 A
Mounting Type	PCB
Terminal Type	Solder
IP Rating	IP40
Illuminated	No
Actuator Material	Brass
