Units	Per Unit
1 - 4	MYR57.26
5 - 19	MYR56.08
20 - 49	MYR54.36
50 - 99	MYR53.01
100 +	MYR51.85

Select all	Attribute	Value
	Brand	NKK Switches
	Contact Configuration	SPDT
	Switch Operation	(On)-Off-(On)
	Contact Current Rating	15 A @ 125 V ac, 20 A @ 30 V dc
	Mounting Type	Panel Mount
	Terminal Type	Solder
	Illuminated	No
	Panel Cut Out Diameter	12.5mm
	Actuator Length	17.5mm
	Actuator Material	Chrome Plated Brass
	Voltage Rating	30 V dc, 125V ac
	Contact Resistance	10mΩ
	Contact Material	Silver
	Panel Cut Out Size	12.5 (Dia.)mm
	Standards Met	CSA Recognised
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	+70°C
	Mechanical Life	50000Operations
	Operating Temperature Range	-10 → +70°C

	Select all
	Brand NKK Switches
	Contact Configuration SPDT
	Switch Operation (On)-Off-(On)
	Contact Current Rating 15 A @ 125 V ac, 20 A @ 30 V dc
	Mounting Type Panel Mount
	Terminal Type Solder
	Illuminated No
	Panel Cut Out Diameter 12.5mm
	Actuator Length 17.5mm
	Actuator Material Chrome Plated Brass
	Voltage Rating 30 V dc, 125V ac
	Contact Resistance 10mΩ
	Contact Material Silver
	Panel Cut Out Size 12.5 (Dia.)mm
	Standards Met CSA Recognised
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature +70°C
	Mechanical Life 50000Operations
	Operating Temperature Range -10 → +70°C

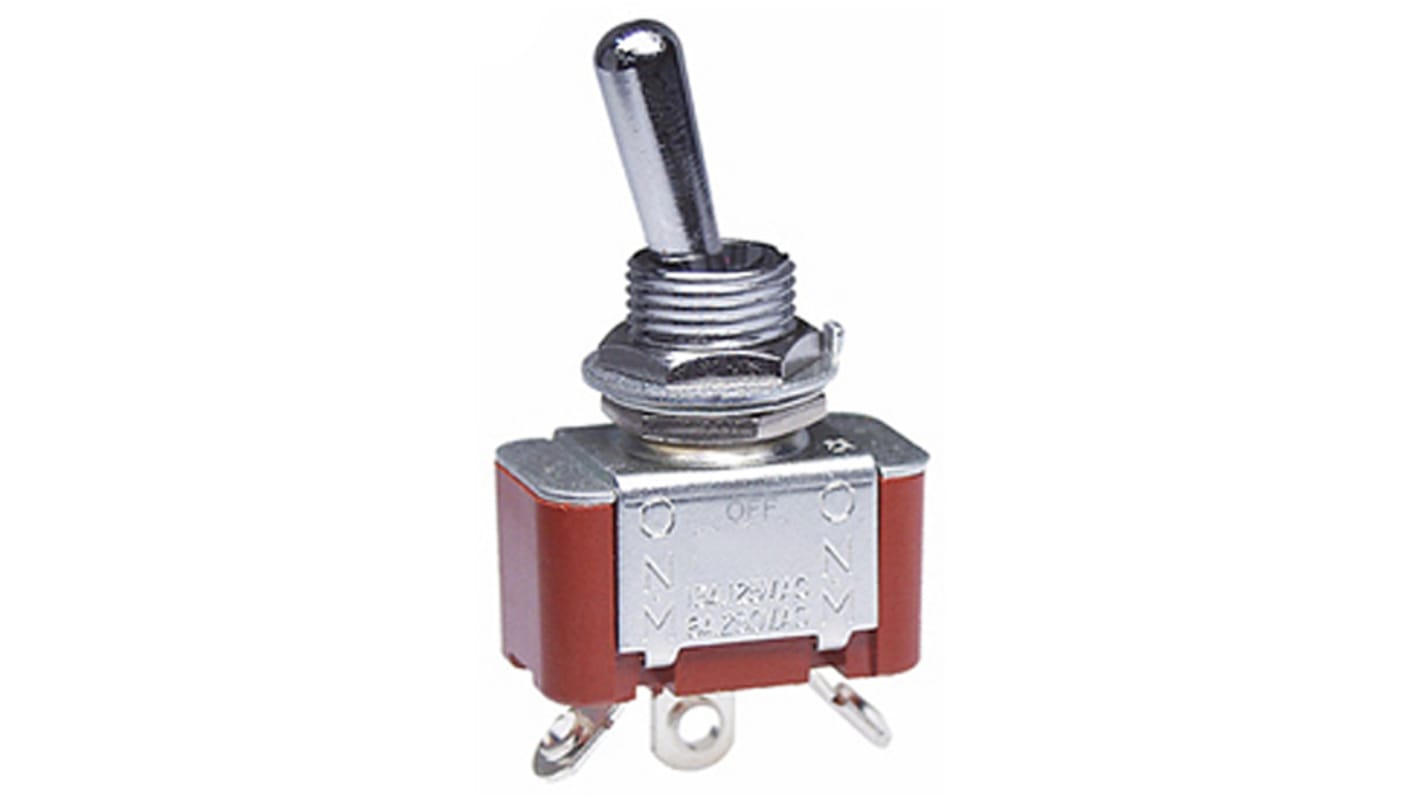

NKK Switches Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Terminal, 30 V dc, 125V ac

FREE delivery for orders over MYR500.00

NKK Switches - S Series Medium / High Capacity Standard Size Toggle Switches
