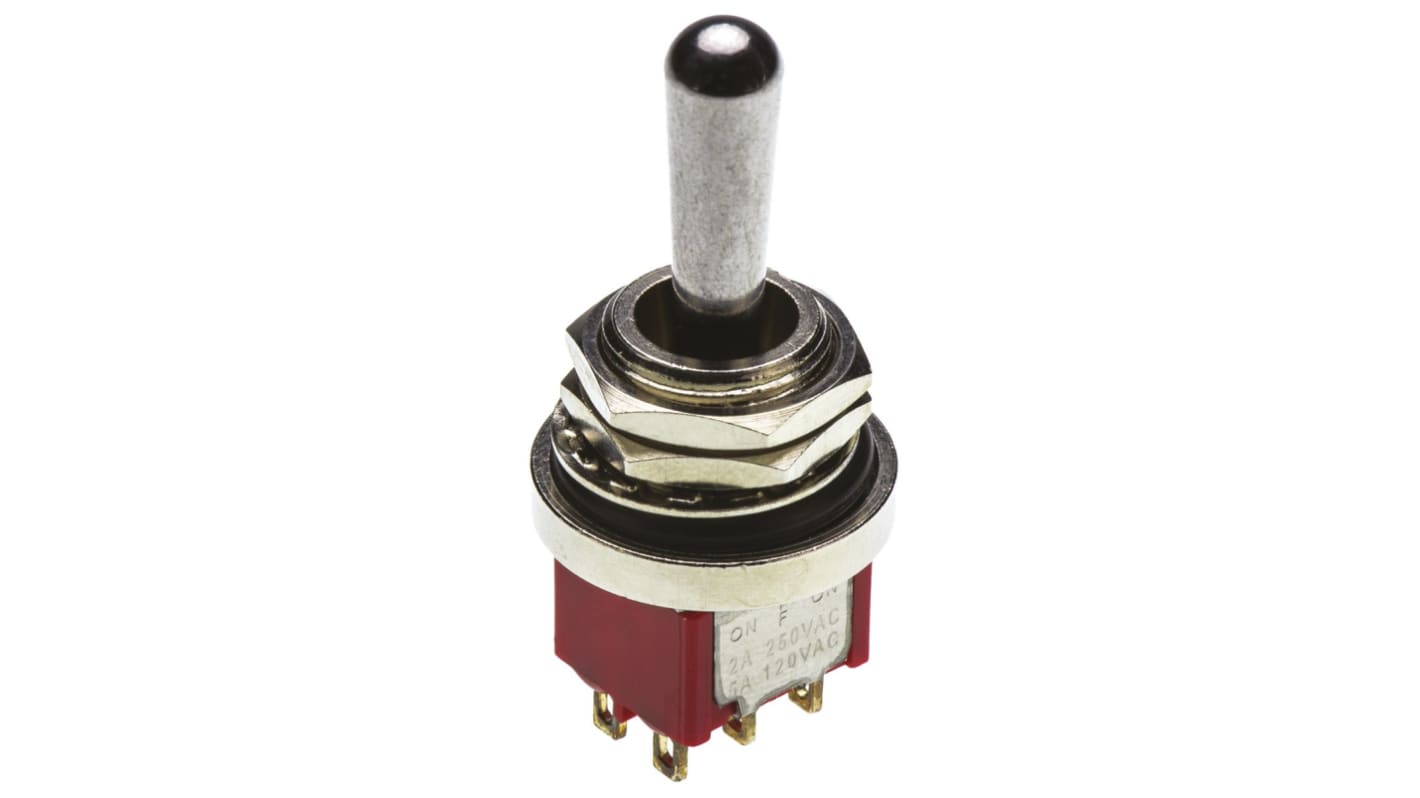

RS PRO Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Terminal, 120 ac/dc, 28V ac/dc
- RS Stock No.:
- 394-437
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
MYR45.94
FREE delivery for orders over RM 500.00
In Stock
- 70 unit(s) ready to ship from another location
- Plus 400 unit(s) shipping from 03 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 49 | MYR45.94 |
| 50 - 99 | MYR44.98 |
| 100 - 249 | MYR43.60 |
| 250 - 1249 | MYR42.55 |
| 1250 + | MYR35.01 |
*price indicative
- RS Stock No.:
- 394-437
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | Double Pole Double Throw (DPDT) | |
| Switch Operation | On-Off-On | |
| Contact Current Rating | 5 A @ 28 V dc | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Panel Cut Out Diameter | 11.91mm | |
| Actuator Length | 17.56mm | |
| Actuator Material | Chromium Plated Brass | |
| Voltage Rating | 120 ac/dc, 28V ac/dc | |
| Contact Material | Silver | |
| Panel Cut Out Size | 11.91mm | |
| Contact Resistance | 0.01Ω | |
| Minimum Operating Temperature | -30°C | |
| Standards Met | RoHS & Lead Free | |
| Mechanical Life | 40000Operations | |
| Operating Temperature Range | -30 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration Double Pole Double Throw (DPDT) | ||
Switch Operation On-Off-On | ||
Contact Current Rating 5 A @ 28 V dc | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
Panel Cut Out Diameter 11.91mm | ||
Actuator Length 17.56mm | ||
Actuator Material Chromium Plated Brass | ||
Voltage Rating 120 ac/dc, 28V ac/dc | ||
Contact Material Silver | ||
Panel Cut Out Size 11.91mm | ||
Contact Resistance 0.01Ω | ||
Minimum Operating Temperature -30°C | ||
Standards Met RoHS & Lead Free | ||
Mechanical Life 40000Operations | ||
Operating Temperature Range -30 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Note
For biased switches '(on)' refers to momentary 'on' position
Large Lever Toggle Switches
Epoxy sealed terminals prevent contamination during soldering
Chrome Plated Brass actuator
Diallyl Phthalate (DAP) case (UL94V-0)
Silver contacts
For biased switches '(on)' refers to momentary 'on' position
Epoxy sealed terminals prevent contamination during soldering
Chrome Plated Brass actuator
Diallyl Phthalate (DAP) case (UL94V-0)
Silver contacts
For biased switches '(on)' refers to momentary 'on' position
