Units	Per Unit
1 - 24	MYR460.02
25 - 49	MYR450.36
50 +	MYR436.56

Select all	Attribute	Value
	Brand	TE Connectivity
	Contact Configuration	Double Pole Double Throw (DPDT)
	Switch Operation	On-Off-(On)
	Contact Current Rating	20 A @ 250 V ac
	Mounting Type	Panel Mount
	Terminal Type	Tab
	IP Rating	IP67
	Actuator Length	17.5mm
	Actuator Material	Brass
	Contact Resistance	10mΩ
	Contact Material	Silver Plated
	Maximum Operating Temperature	+70°C
	Mechanical Life	40000Cycles
	Minimum Operating Temperature	-20°C
	Operating Temperature Range	-20 → +70°C

	Select all
	Brand TE Connectivity
	Contact Configuration Double Pole Double Throw (DPDT)
	Switch Operation On-Off-(On)
	Contact Current Rating 20 A @ 250 V ac
	Mounting Type Panel Mount
	Terminal Type Tab
	IP Rating IP67
	Actuator Length 17.5mm
	Actuator Material Brass
	Contact Resistance 10mΩ
	Contact Material Silver Plated
	Maximum Operating Temperature +70°C
	Mechanical Life 40000Cycles
	Minimum Operating Temperature -20°C
	Operating Temperature Range -20 → +70°C

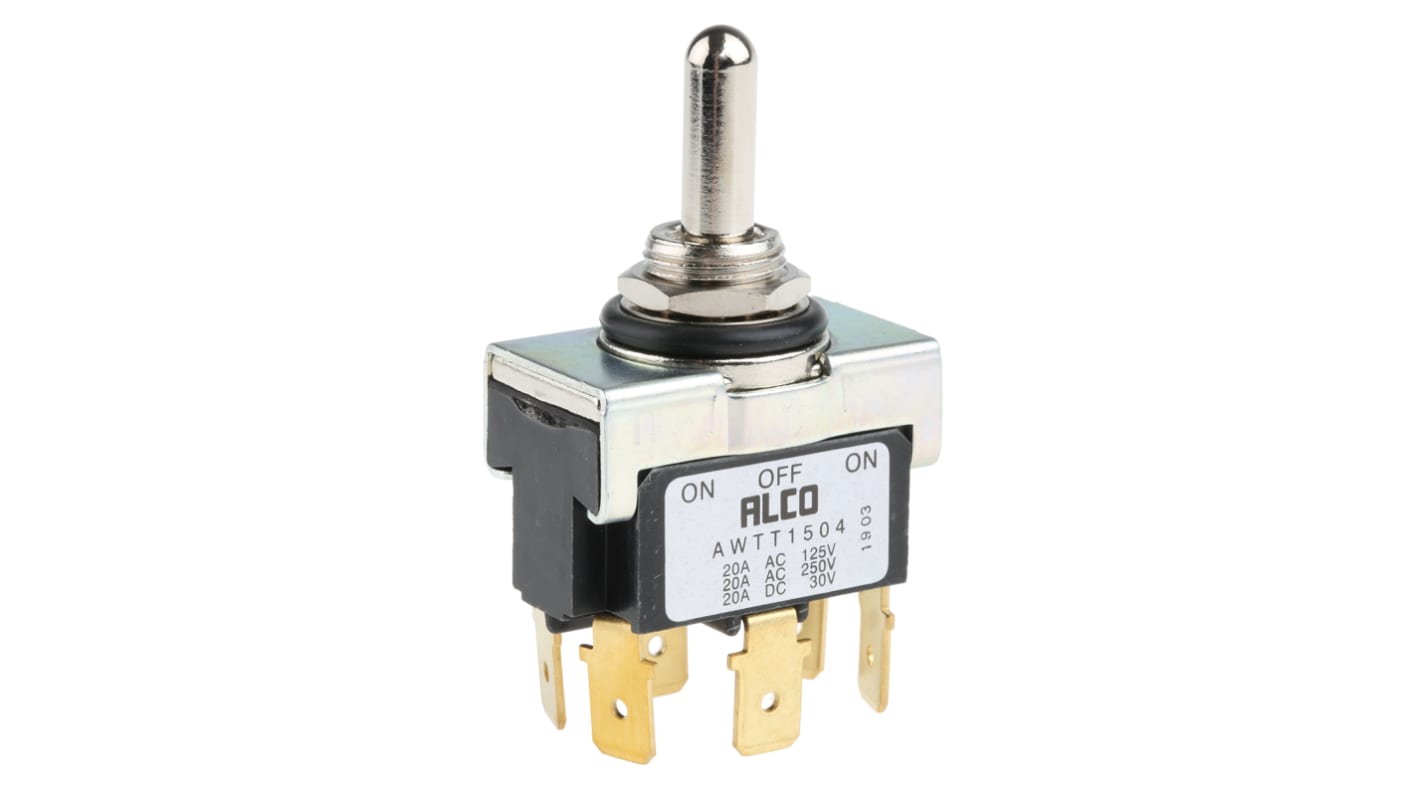

TE Connectivity Toggle Switch, Panel Mount, On-Off-(On), DPDT, Tab Terminal

FREE delivery for orders over MYR500.00

Waterproof IP67

Approvals
