OPTIBELT 1792 8MDC 62 Timing Belt 224 Teeth, 1.79 m Length, 62 mm Width
- RS Stock No.:
- 231-2081
- Mfr. Part No.:
- 1792 8MDC 62
- Manufacturer:
- OPTIBELT
Subtotal (1 unit)*
MYR4,145.74
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR4,145.74 |
*price indicative
- RS Stock No.:
- 231-2081
- Mfr. Part No.:
- 1792 8MDC 62
- Manufacturer:
- OPTIBELT
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Product Type | Timing Belt | |
| Belt Section | 8MDC | |
| Pitch | 8mm | |
| Number of Teeth | 224 | |
| Cord Material | Carbon | |
| Material | Polyurethane | |
| Series | Delta chain | |
| Minimum Operating Temperature | -30°C | |
| Belt Length | 1.79m | |
| Belt Width | 62mm | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Product Type Timing Belt | ||
Belt Section 8MDC | ||
Pitch 8mm | ||
Number of Teeth 224 | ||
Cord Material Carbon | ||
Material Polyurethane | ||
Series Delta chain | ||
Minimum Operating Temperature -30°C | ||
Belt Length 1.79m | ||
Belt Width 62mm | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- IE

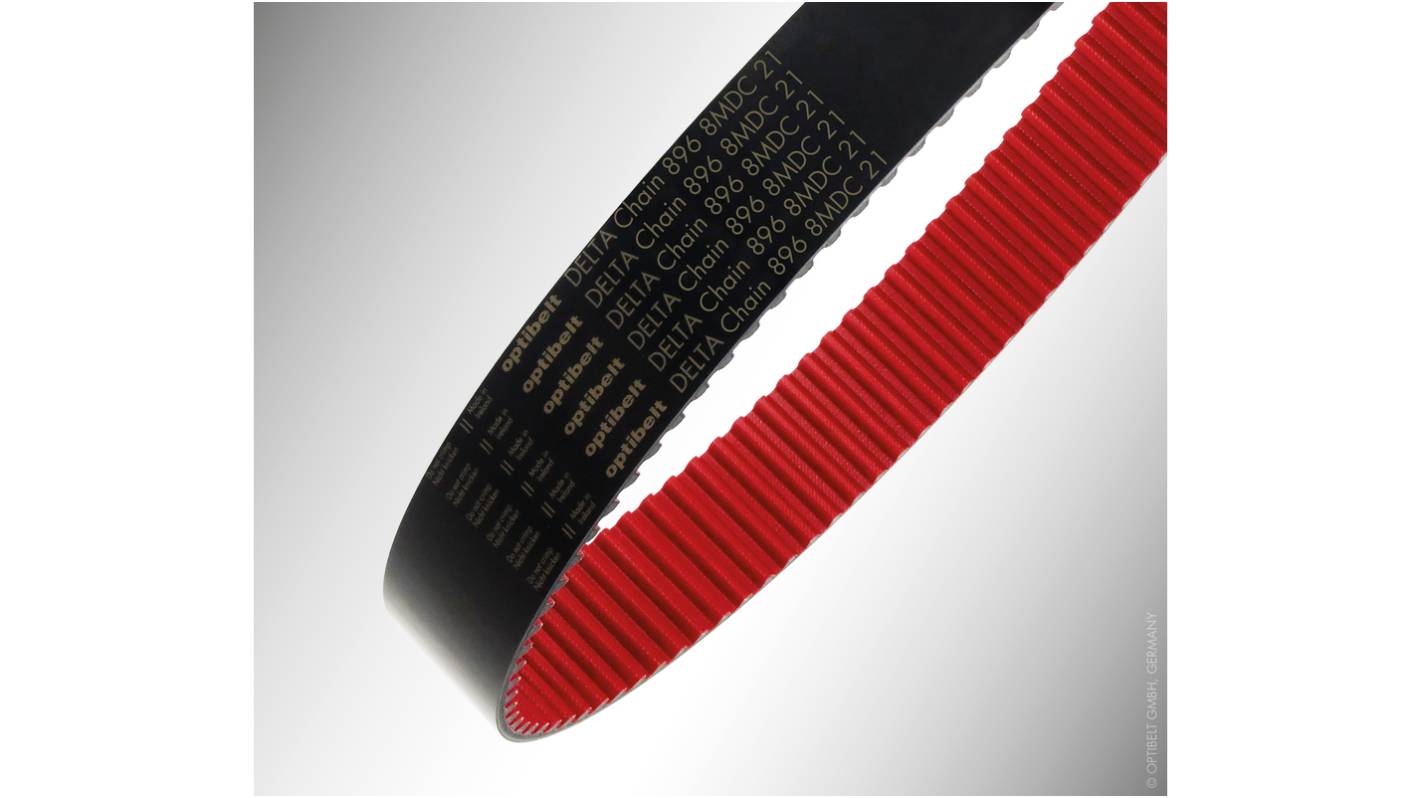

The OPTIBELT DELTA Chain has the highest power capacity timing belt Optibelt has ever created. It is 2X stronger than any rubber timing belt. This means more compact drive designs are possible and it can replace many DELTA Chain drives. It has 1792mm length,, width is 62 mm and height is 224 mm. Timing belt tooth pitch is pitch is 8mm.
Superior protection
Idler capable
Carbon cords
High resistance
Compatible tooth pattern
