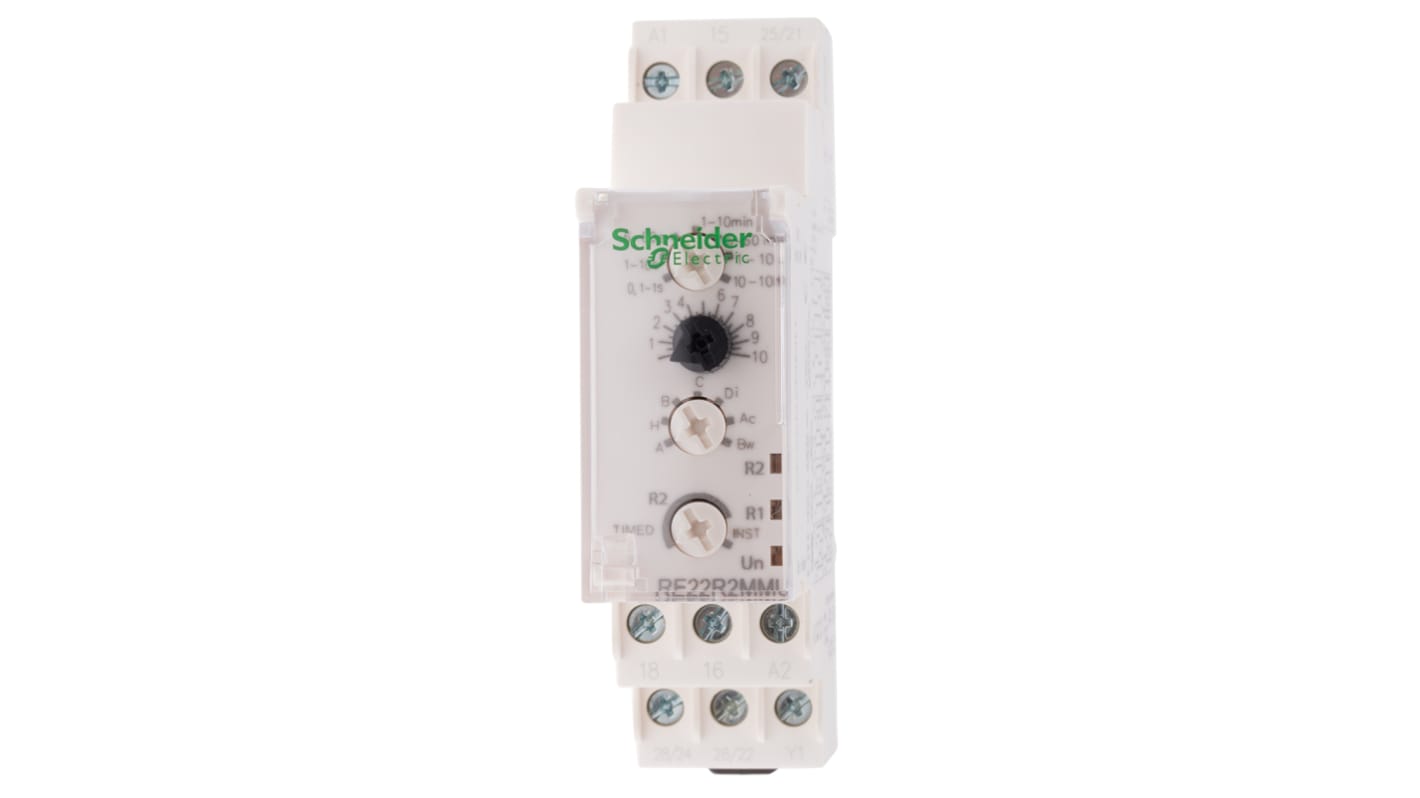

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 → 240V ac, 4-Contact, 0.1 s → 100h,
- RS Stock No.:
- 872-5817
- Distrelec Article No.:
- 303-02-795
- Mfr. Part No.:
- RE22R2MMU
- Manufacturer:
- Schneider Electric
Bulk discount available
Subtotal (1 unit)*
MYR410.10
FREE delivery for orders over RM 500.00
In Stock
- 15 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR410.10 |
| 5 - 9 | MYR401.48 |
| 10 + | MYR389.44 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 872-5817
- Distrelec Article No.:
- 303-02-795
- Mfr. Part No.:
- RE22R2MMU
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Supply Voltage | 24 → 240V ac | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Multifunction | |
| Time Range | 0.1 s → 100h | |
| Number of Contacts | 4 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | DPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 8A | |
| Switch Configuration | DPCO | |
| Terminal Type | Screw | |
| Width | 22.5mm | |
| Power Supply | External | |
| Better World Verification | Green Premium | |
| Length | 22.9mm | |
| Maximum Operating Temperature | +60°C | |
| Depth | 79.5mm | |
| Better World Product | Yes | |
| Series | Harmony Time | |
| Minimum Current | 10mA | |
| Minimum Operating Temperature | -20°C | |
| Time Delay | <100ms | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Supply Voltage 24 → 240V ac | ||
Mounting Type DIN Rail | ||
Mode of Operation Multifunction | ||
Time Range 0.1 s → 100h | ||
Number of Contacts 4 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration DPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 8A | ||
Switch Configuration DPCO | ||
Terminal Type Screw | ||
Width 22.5mm | ||
Power Supply External | ||
Better World Verification Green Premium | ||
Length 22.9mm | ||
Maximum Operating Temperature +60°C | ||
Depth 79.5mm | ||
Better World Product Yes | ||
Series Harmony Time | ||
Minimum Current 10mA | ||
Minimum Operating Temperature -20°C | ||
Time Delay <100ms | ||
- COO (Country of Origin):
- ID
Schneider Electric Harmony Time Series Timer Relay, 24 to 240V AC Supply Voltage, 8A Maximum Current - RE22R2MMU
This timer relay is a multifunction device designed for various applications in electrical automation. With a supply voltage range of 24 to 240V AC, it features a compact design suitable for DIN rail mounting. Its dimensions include a width of 22.5mm, a depth of 79.5mm, and a length of 22.9mm, ensuring versatility in tight spaces while delivering reliable performance.
Features & Benefits
• Multifunction capability supports multiple timing functions
• Wide time range from 0.1s to 100h for flexibility
• Designed for easy DIN rail installation for convenience
• DPDT contact configuration allows for various switching options
• External power supply usage enhances installation adaptability
• Integrated status LEDs provide operational feedback
• Wide time range from 0.1s to 100h for flexibility
• Designed for easy DIN rail installation for convenience
• DPDT contact configuration allows for various switching options
• External power supply usage enhances installation adaptability
• Integrated status LEDs provide operational feedback
Applications
• Utilised in HVAC systems for timing operations
• Ideal for lighting control in building automation
• Employed in motor control for delay functions
• Applicable in safety systems requiring timed responses
• Ideal for lighting control in building automation
• Employed in motor control for delay functions
• Applicable in safety systems requiring timed responses
What is the maximum current rating this device can handle?
It can handle a maximum current of 8 A, which makes it suitable for various operational needs in industrial settings.
Can the timing functions be configured for on-delay and off-delay operations?
Yes, it supports both on-delay and off-delay configurations, providing versatility for different application requirements.
How does the timer relay ensure operational reliability under various conditions?
It features a temperature range from -20 °C to +60 °C, along with a high electrical durability rating of 100,000 cycles for resistive loads, ensuring consistent performance.
What type of terminals does this relay use for connections?
The relay is equipped with screw terminals, allowing secure connections with compatibility for cables of up to 2.5 mm² without cable ends.
