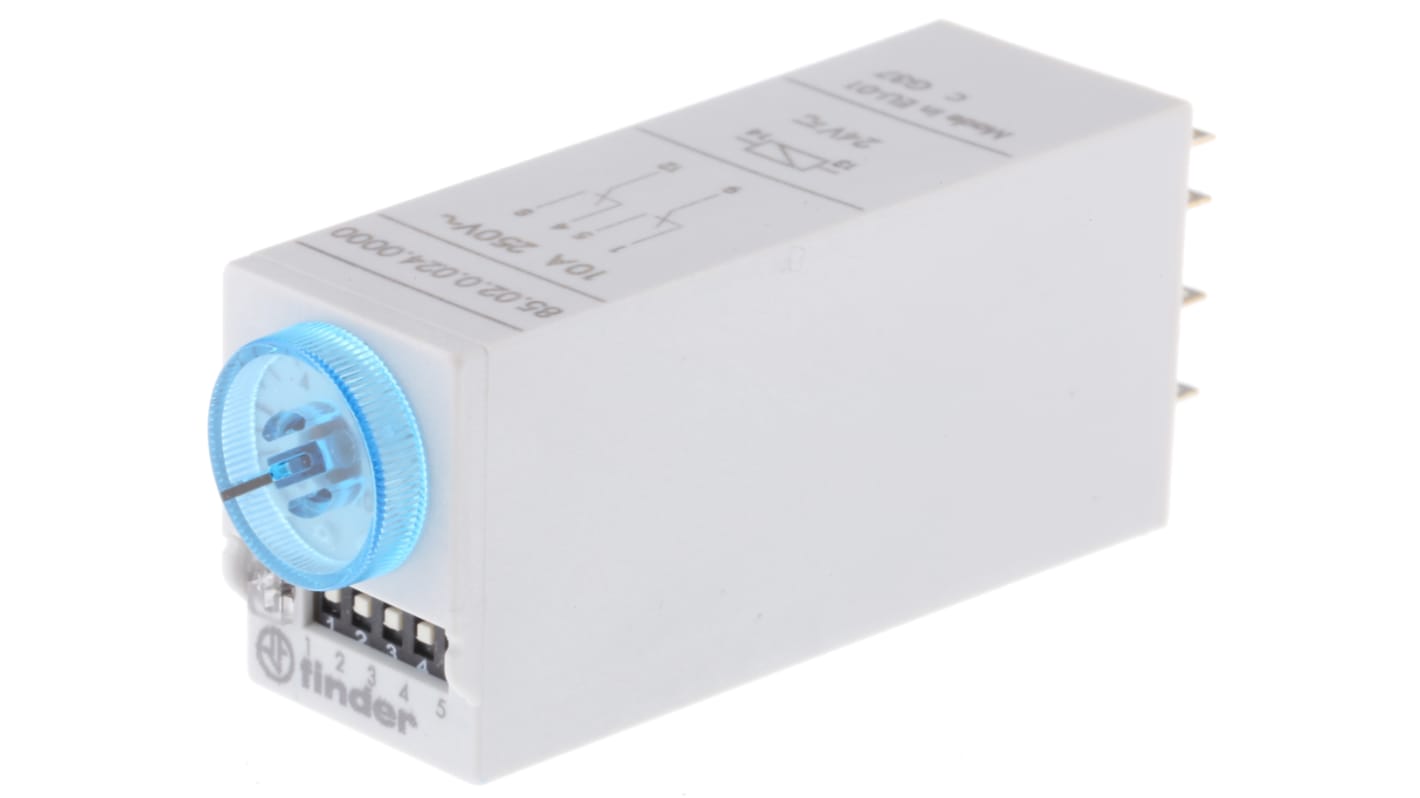

Finder 85 Series Snap-On Timer Relay, 2-Contact, 110 to 125 V dc 24V ac, 5 to 100 h, 0.05 to 100 s, 3 to 100 min,
- RS Stock No.:
- 450-4714
- Distrelec Article No.:
- 137-54-335
- Mfr. Part No.:
- 85.02.0.024.0000
- Manufacturer:
- Finder
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
MYR274.27
FREE delivery for orders over RM 500.00
In Stock
- 33 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | MYR274.27 |
| 25 - 49 | MYR268.50 |
| 50 + | MYR260.44 |
*price indicative
- RS Stock No.:
- 450-4714
- Distrelec Article No.:
- 137-54-335
- Mfr. Part No.:
- 85.02.0.024.0000
- Manufacturer:
- Finder
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Timer Relay | |
| Function | Offset Double Ring End, Multifunction | |
| Mount Type | Snap-On | |
| Time Range | 5 to 100 h, 0.05 to 100 s, 3 to 100 min | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multifunction | |
| Switching Voltage | 400V ac | |
| Contact Configuration | DPDT | |
| IP Rating | IP40 | |
| Supply DC Voltage | 110 to 125 V dc | |
| Contact Current | 10A | |
| Supply AC Voltage | 24V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | 8-Pin | |
| Width | 20.6mm | |
| Length | 59.5mm | |
| Standards/Approvals | EN 61000-4-4, (according to type), EN 61000-4-8, EN 61000-4-2, EN 61000-4-5, EN 61000-4-3, EN 61000-4-6, EN 55022 | |
| Height | 27.7mm | |
| Series | 85 | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Timer Relay | ||
Function Offset Double Ring End, Multifunction | ||
Mount Type Snap-On | ||
Time Range 5 to 100 h, 0.05 to 100 s, 3 to 100 min | ||
Number of Contacts 2 | ||
Number of Timer Functions Multifunction | ||
Switching Voltage 400V ac | ||
Contact Configuration DPDT | ||
IP Rating IP40 | ||
Supply DC Voltage 110 to 125 V dc | ||
Contact Current 10A | ||
Supply AC Voltage 24V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Terminal Type 8-Pin | ||
Width 20.6mm | ||
Length 59.5mm | ||
Standards/Approvals EN 61000-4-4, (according to type), EN 61000-4-8, EN 61000-4-2, EN 61000-4-5, EN 61000-4-3, EN 61000-4-6, EN 55022 | ||
Height 27.7mm | ||
Series 85 | ||
- COO (Country of Origin):
- IT
Finder 85 series Timer Relay, 24V AC/DC Supply Voltage, 15A Maximum Current - 85.02.0.024.0000
This timer relay is a compact and efficient solution for control applications in the automation and electronics sectors. Designed for external power supply, it operates on 24V AC/DC and is compatible with snap-on rail mounts. The device's dimensions are 20.6mm in width, 27.7mm in depth, and 59.5mm in length, making it an ideal choice for space-constrained installations. Offering versatility, it adjusts across a wide time range from 0.05 seconds to 100 hours.
Features & Benefits
• Multi-function capabilities for ON delay, interval, and pulse modes
• DPDT contact configuration ensures reliable switching operation
• Adjustable time delay settings offer precise control over timing tasks
• External power supply with a maximum current rating of 15A
• Operating temperature range from -20°C to +60°C accommodates various environments
• Utilises an 8-pin connector for easy integration and wiring
Applications
• Used in automated machinery for timing control
• Effective in lighting control systems to set on/off timings
• Applied in HVAC systems for cycling equipment at specified intervals
• Integrated into process control systems for managing timed sequences
How does this relay facilitate precise timing control?
The device features adjustable time delay settings, allowing users to customise the delay from as low as 0.05 seconds up to 100 hours, making it suitable for various applications.
What is the maximum load current that can be handled?
The relay can manage a maximum current of up to 15A, providing sufficient capacity for most control tasks in industrial and commercial settings.
What kind of mounting options does this relay support?
This variant comes with a snap-on design, making it compatible with standard rail mount systems for easy installation and removal in cabinets.
