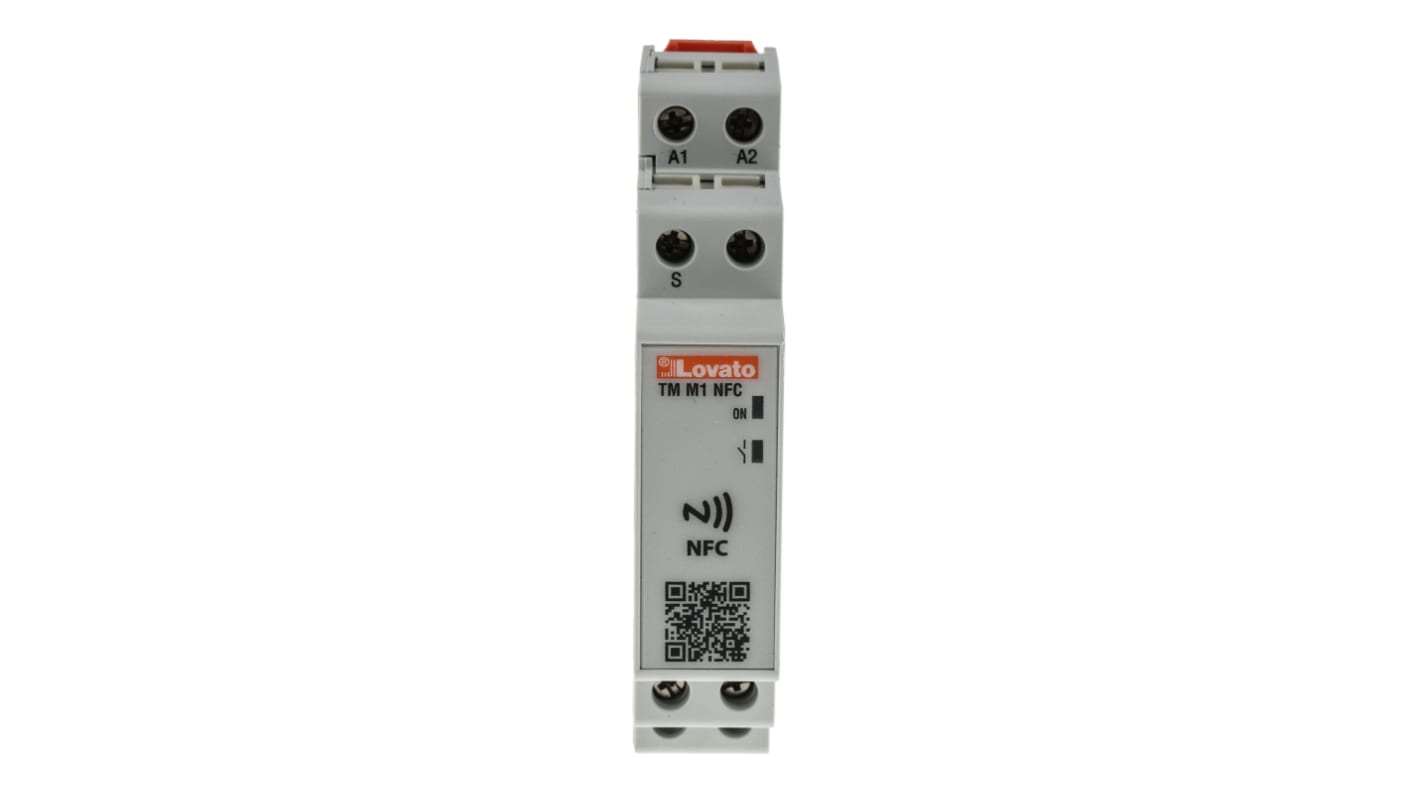

Lovato DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 2-Contact, 0.1 s → 999h, SPDT
- RS Stock No.:
- 176-9804
- Mfr. Part No.:
- TMM1NFC
- Manufacturer:
- Lovato
Subtotal (1 unit)*
MYR456.87
FREE delivery for orders over RM 500.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR456.87 |
*price indicative
- RS Stock No.:
- 176-9804
- Mfr. Part No.:
- TMM1NFC
- Manufacturer:
- Lovato
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Supply Voltage | 12 → 240V ac/dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | OFF/ON | |
| Time Range | 0.1 s → 999h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | SPDT | |
| Time Increment | Seconds | |
| Maximum Voltage | 240V ac/dc | |
| Switch Configuration | SPDT | |
| Terminal Type | Screw | |
| Power Supply | External | |
| Minimum Voltage | 12V ac/dc | |
| Width | 64.9mm | |
| Maximum Operating Temperature | +60°C | |
| Length | 17.5mm | |
| Depth | 90mm | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Supply Voltage 12 → 240V ac/dc | ||
Mounting Type DIN Rail | ||
Mode of Operation OFF/ON | ||
Time Range 0.1 s → 999h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration SPDT | ||
Time Increment Seconds | ||
Maximum Voltage 240V ac/dc | ||
Switch Configuration SPDT | ||
Terminal Type Screw | ||
Power Supply External | ||
Minimum Voltage 12V ac/dc | ||
Width 64.9mm | ||
Maximum Operating Temperature +60°C | ||
Length 17.5mm | ||
Depth 90mm | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- IT
Lovato Timer Relay
The Lovato SPDT is a multifunction, multiscale and multi-voltage with 1 relay output. It has an electronic OFF/ON delay along with 2 changeover contacts and is DIN rail mount. This relay works on NFC technology that has a built-in counter and an hour counter. This relay has a simple, fast and intuitive programming. It can save the program on smartphones or tablets and can be copied to others, even if the device is powered off. The relay requires a supply voltage ranging between 12VAC/DC and 240VAC/DC. It has an adjustable time range between 0.1sec to 999hours
Features and Benefits
• 40 available timer functions for different applications
• Command input for the enabling of the function or to pause the timing
• LED indicator
• Possibility to protect the settings with a password
• Very high accuracy and repeatability of the settings
• Command input for the enabling of the function or to pause the timing
• LED indicator
• Possibility to protect the settings with a password
• Very high accuracy and repeatability of the settings
Applications
• Flashers
• Liquid level controls
• Timing control
• Vending controls
• Liquid level controls
• Timing control
• Vending controls
Certifications
• CSA certified
• IP20 rated
• IP40 rated
• UL rated
• IP20 rated
• IP40 rated
• UL rated
