STMicroelectronics, Thyristor 600 V, 30 A 15 mA 493 A

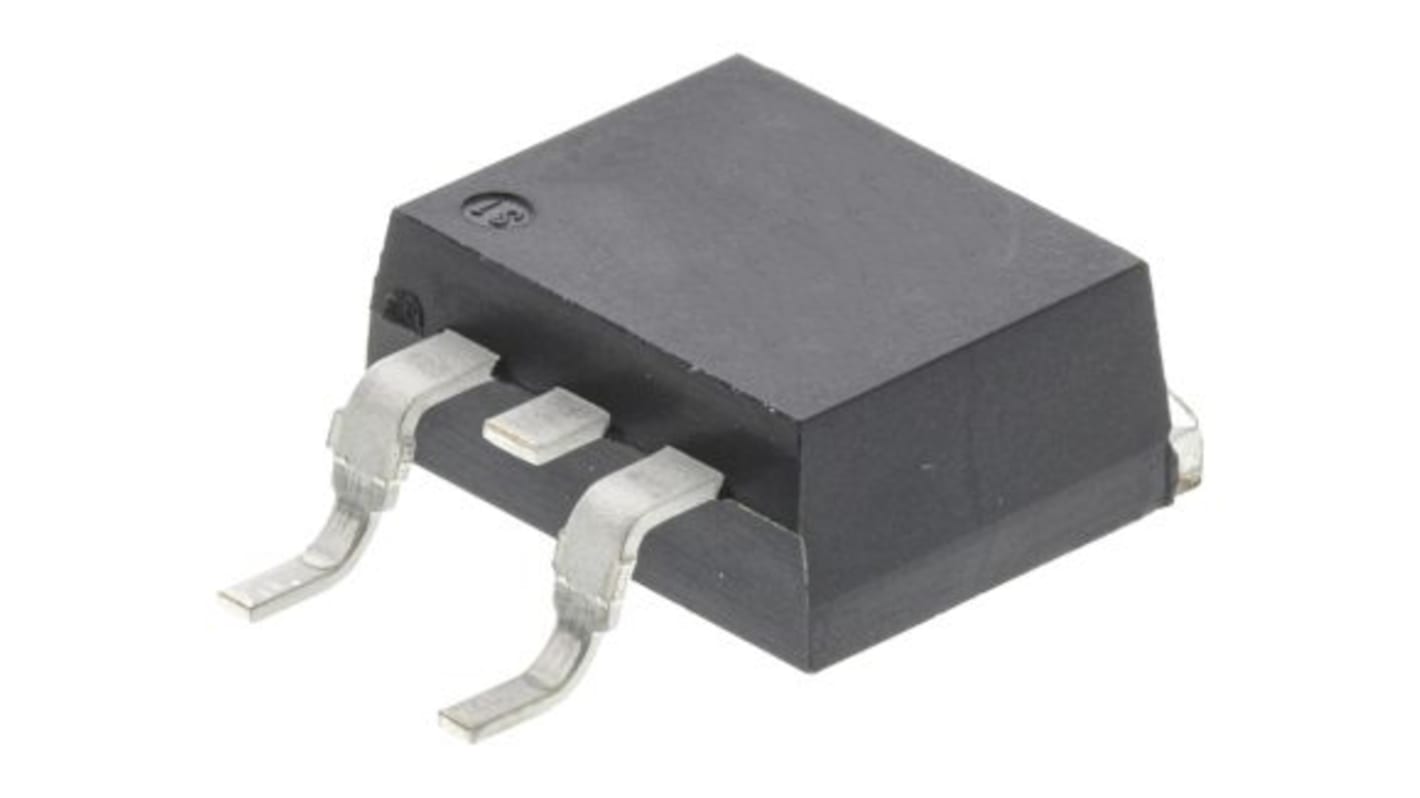

This image is representative of the product range

View all Thyristors
Bulk discount available

Subtotal (1 tube of 50 units)*

MYR294.00

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Tube*
50 - 50MYR5.88MYR294.00
100 - 150MYR5.751MYR287.55
200 +MYR5.645MYR282.25

*price indicative

RS Stock No.:
192-4600
Mfr. Part No.:
TN5015H-6G
Manufacturer:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Rated Average On-State Current Irms

30A

Product Type

Thyristor

Thyristor Type

SCR

Package Type

TO-263

Repetitive Peak Reverse Voltage VDRM

600V

Surge Current Rating

493A

Mount Type

Surface

Maximum Gate Trigger Current Igt

15mA

Pin Count

3

Maximum Holding Current Ih

60mA

Maximum Gate Trigger Voltage Vgt

1.3V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Series

50 A SCRs

Standards/Approvals

No

Repetitive Peak Off-State Current

6mA

Automotive Standard

No

COO (Country of Origin):
CN
Thanks to its junction temperature Tj up to 150 °C, the device offers high thermal performance operation up to 50 A. Its D²PAK package allows modern SMD designs as well as compact back to back configuration. Its trade-off noise immunity (dV/dt = 500 V/μs) versus its gate triggering current (IGT = 15 mA) and its turn-on current rise (dI/dt = 100 A/μs) allow to design robust and compact control circuit for voltage regulator in motorbikes and industrial drives, overvoltage crowbar protection, motor control circuits in power tools and kitchen appliances, inrush current limiting circuits.

High junction temperature: Tj = 150 °C

High noise immunity dV/dt = 500 V/μs up to 150 °C

Gate triggering current IGT = 15 mA

Peak off-state voltage VDRM/VRRM = 600 V

High turn-on current rise dI/dt = 100 A/μs
