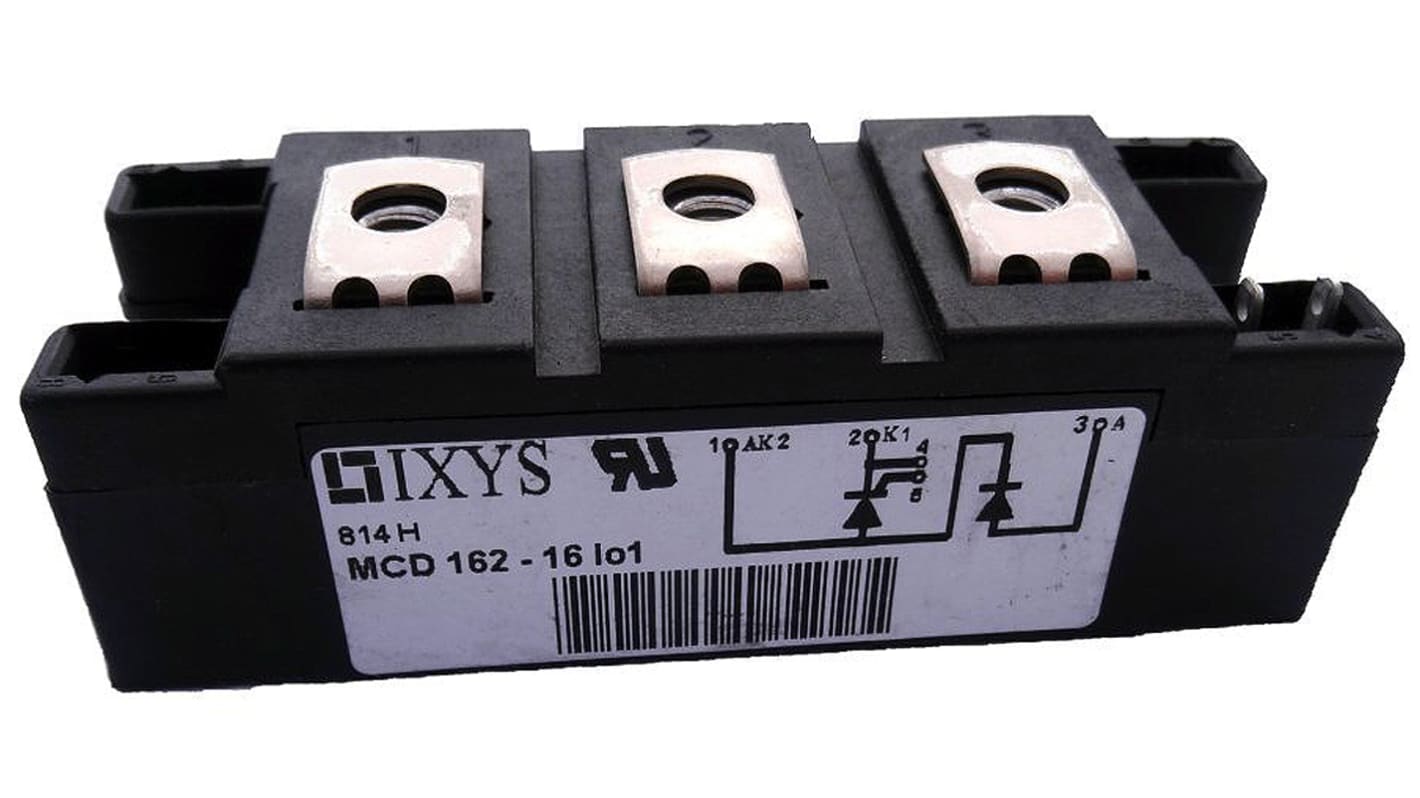

IXYS MCD162-16IO1, Thyristor Module 1600V, 190A 150mA
- RS Stock No.:
- 194-209
- Distrelec Article No.:
- 302-53-470
- Mfr. Part No.:
- MCD162-16IO1
- Manufacturer:
- IXYS
Subtotal (1 unit)**
MYR282.25
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 + | MYR282.25 |
**price indicative
- RS Stock No.:
- 194-209
- Distrelec Article No.:
- 302-53-470
- Mfr. Part No.:
- MCD162-16IO1
- Manufacturer:
- IXYS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IXYS | |
| Rated Average On-State Current | 190A | |
| Thyristor Type | SCR Module | |
| Package Type | Y4 M6 | |
| Repetitive Peak Reverse Voltage | 1600V | |
| Surge Current Rating | 6.4kA | |
| Mounting Type | Panel Mount | |
| Maximum Gate Trigger Current | 150mA | |
| Maximum Gate Trigger Voltage | 2.5V | |
| Maximum Holding Current | 200mA | |
| Pin Count | 5 | |
| Dimensions | 94 x 34 x 30mm | |
| Minimum Operating Temperature | -40 °C | |
| Repetitive Peak Off-State Current | 10mA | |
| Maximum Operating Temperature | +125 °C | |
| Repetitive Peak Forward Blocking Voltage | 1600V | |
| Peak On-State Voltage | 1.25V | |
Select all | ||
|---|---|---|
Brand IXYS | ||
Rated Average On-State Current 190A | ||
Thyristor Type SCR Module | ||
Package Type Y4 M6 | ||
Repetitive Peak Reverse Voltage 1600V | ||
Surge Current Rating 6.4kA | ||
Mounting Type Panel Mount | ||
Maximum Gate Trigger Current 150mA | ||
Maximum Gate Trigger Voltage 2.5V | ||
Maximum Holding Current 200mA | ||
Pin Count 5 | ||
Dimensions 94 x 34 x 30mm | ||
Minimum Operating Temperature -40 °C | ||
Repetitive Peak Off-State Current 10mA | ||
Maximum Operating Temperature +125 °C | ||
Repetitive Peak Forward Blocking Voltage 1600V | ||
Peak On-State Voltage 1.25V | ||
