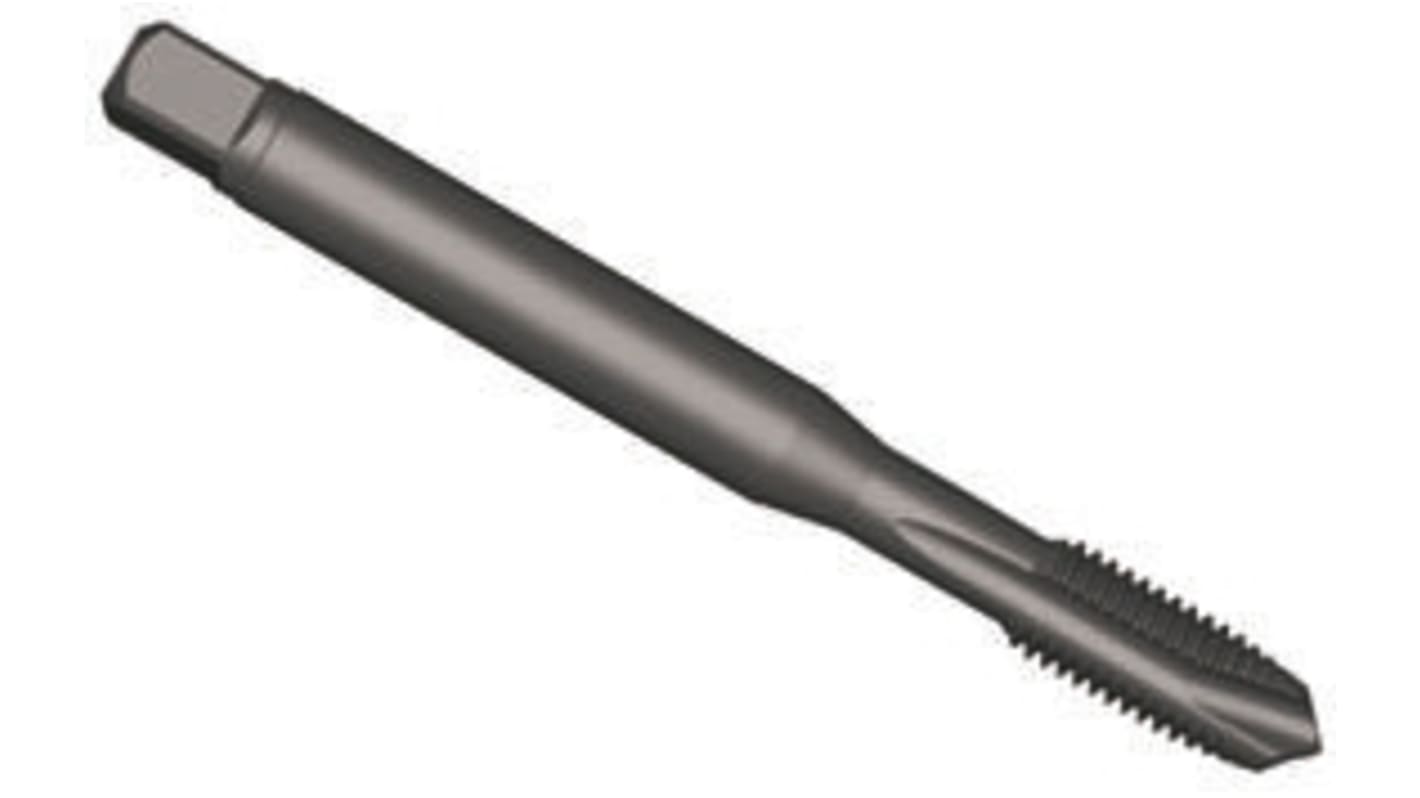

Dormer Threading Tap HSS-XS1 1-Piece 0.4mm Pitch Metric Standard Machine Tap M2 Thread
- RS Stock No.:
- 705-9469
- Mfr. Part No.:
- EP01 M2
- Manufacturer:
- Dormer
This image is representative of the product range
Subtotal (1 unit)*
MYR172.40
FREE delivery for orders over RM 500.00
In Stock
- Plus 6 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR172.40 |
*price indicative
- RS Stock No.:
- 705-9469
- Mfr. Part No.:
- EP01 M2
- Manufacturer:
- Dormer
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dormer | |
| Set Type | Threading Tap | |
| Thread Size | M2 | |
| Type | Spiral Point | |
| Pitch | 0.4mm | |
| Thread Standard | Metric | |
| Thread Direction | Right Hand | |
| Number of Pieces | 1 | |
| Overall Length | 50 mm | |
| Material | HSS-XS1 | |
| Hand/Machine Tap | Machine Tap | |
| Shank Diameter | 2.8 mm | |
| Class of Fit | 6H | |
| Select all | ||
|---|---|---|
Brand Dormer | ||
Set Type Threading Tap | ||
Thread Size M2 | ||
Type Spiral Point | ||
Pitch 0.4mm | ||
Thread Standard Metric | ||
Thread Direction Right Hand | ||
Number of Pieces 1 | ||
Overall Length 50 mm | ||
Material HSS-XS1 | ||
Hand/Machine Tap Machine Tap | ||
Shank Diameter 2.8 mm | ||
Class of Fit 6H | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
GUN cutting taps
Metric flute taps constructed from HSS-XS1 vanadium steel and HSCo.
Designed for use with a floating tool holder
Dormer SynchroFlex® tool holders are recommended for rigid tapping operations using a CNC digital keypad.
Industrial applications: machining of small parts, European client
Designed for use with a floating tool holder
Dormer SynchroFlex® tool holders are recommended for rigid tapping operations using a CNC digital keypad.
Industrial applications: machining of small parts, European client
Rolled Flute Taps
Bright finish fluteless taps; for use on copper, aluminium, magnesium, brass, zinc etc.
Flash chrome finish fluteless taps; for use on steel up to 850N/mm2 tensile strength, free matching and austenitic stainless steel
Made to ISO529 standard for tapping blind and through holes in a wide range of ductile materials
Smooth non-cutting action produces greater thread formed strength, higher life expectancy and increased tapping speeds especially where excessive tension occurs
Flash chrome finish fluteless taps; for use on steel up to 850N/mm2 tensile strength, free matching and austenitic stainless steel
Made to ISO529 standard for tapping blind and through holes in a wide range of ductile materials
Smooth non-cutting action produces greater thread formed strength, higher life expectancy and increased tapping speeds especially where excessive tension occurs
