Vishay Thermistor, NTC Type 10 kΩ 41.9 mm
- RS Stock No.:
- 126-299
- Distrelec Article No.:
- 304-37-598
- Mfr. Part No.:
- NTCALUG01A103FA
- Manufacturer:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
MYR56.77
FREE delivery for orders over RM 150.00
In Stock
- 25 unit(s) ready to ship from another location
- Plus 800 unit(s) shipping from 08 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 45 | MYR11.354 | MYR56.77 |
| 50 - 95 | MYR10.78 | MYR53.90 |
| 100 - 495 | MYR9.996 | MYR49.98 |
| 500 - 995 | MYR9.198 | MYR45.99 |
| 1000 + | MYR8.862 | MYR44.31 |
*price indicative
- RS Stock No.:
- 126-299
- Distrelec Article No.:
- 304-37-598
- Mfr. Part No.:
- NTCALUG01A103FA
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Thermistor | |
| Series | NTC | |
| Temperature Coefficient Type | NTC | |
| Thermal Time Constant | 7.5s | |
| Packaging | Cardboard Box | |
| Tolerance ± | 1% | |
| Automotive Standard | AEC-Q200 | |
| Mount Type | Plate | |
| Application | Surface Sensing Applications, Electrical Insulation | |
| Resistance at 25°C | 10kΩ | |
| Length | 41.9mm | |
| Standards/Approvals | cUL: XGPU8.E148885, Ulus: XGPU2.E148885 | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Thermistor | ||
Series NTC | ||
Temperature Coefficient Type NTC | ||
Thermal Time Constant 7.5s | ||
Packaging Cardboard Box | ||
Tolerance ± 1% | ||
Automotive Standard AEC-Q200 | ||
Mount Type Plate | ||
Application Surface Sensing Applications, Electrical Insulation | ||
Resistance at 25°C 10kΩ | ||
Length 41.9mm | ||
Standards/Approvals cUL: XGPU8.E148885, Ulus: XGPU2.E148885 | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN

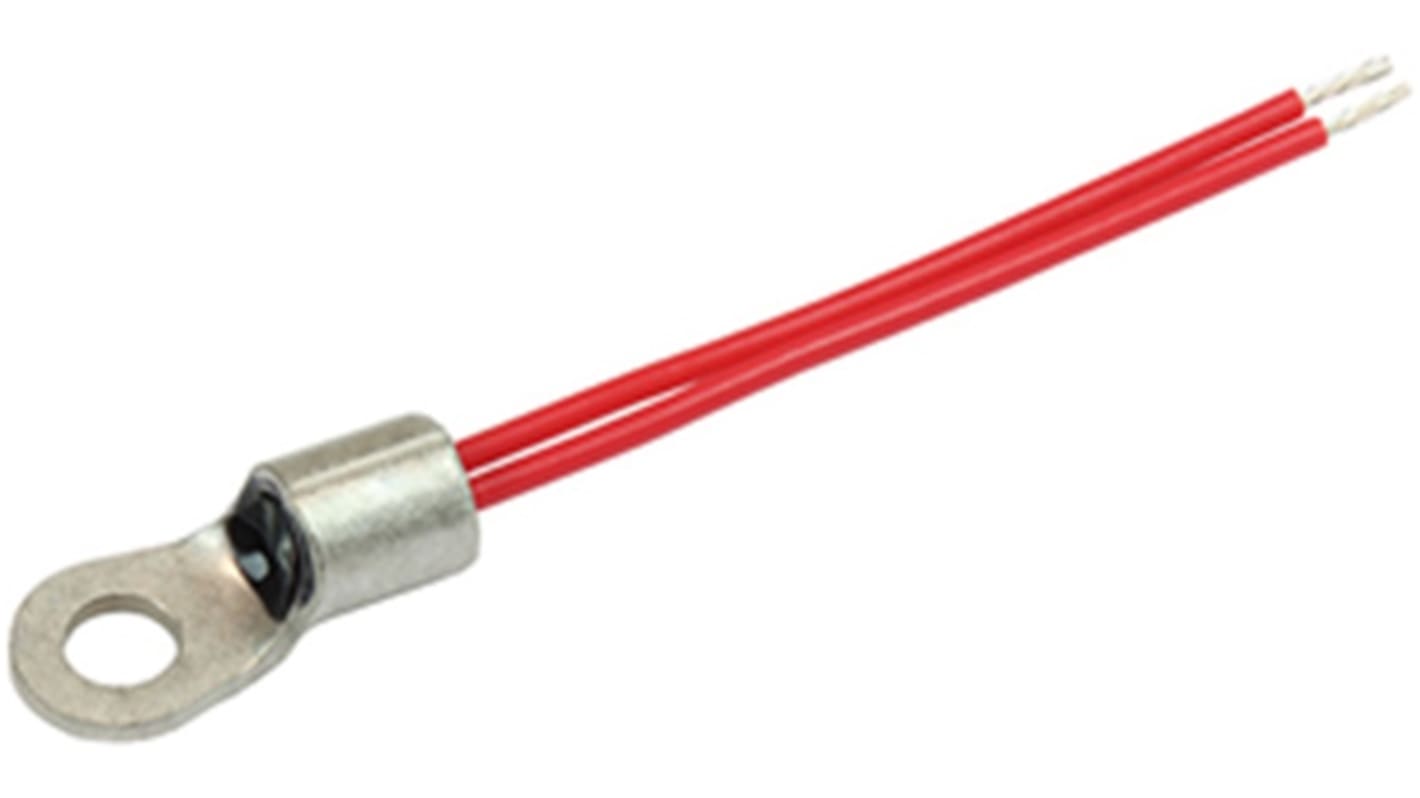

The Vishay NTC thermistor chip is soldered to AWG 24 stranded silver plated copper leads with PTFE insulation and insulated with epoxy coating. The insulated sensor is attached to a tin plated copper ring lug. The lead wires are stripped, twisted and dipped in a tin-silver solder alloy.
Easy mounting using ring tongue terminal
Rugged construction
AEC-Q200 qualified
