RS PRO FC66 A-0709 Thermal Circuit Breaker - 1-Pole, Panel, 13A Current Rating, 1000 A, 240V ac, 32 V dc
- RS Stock No.:
- 774-0036
- Distrelec Article No.:
- 304-51-246
- Manufacturer:
- RS PRO

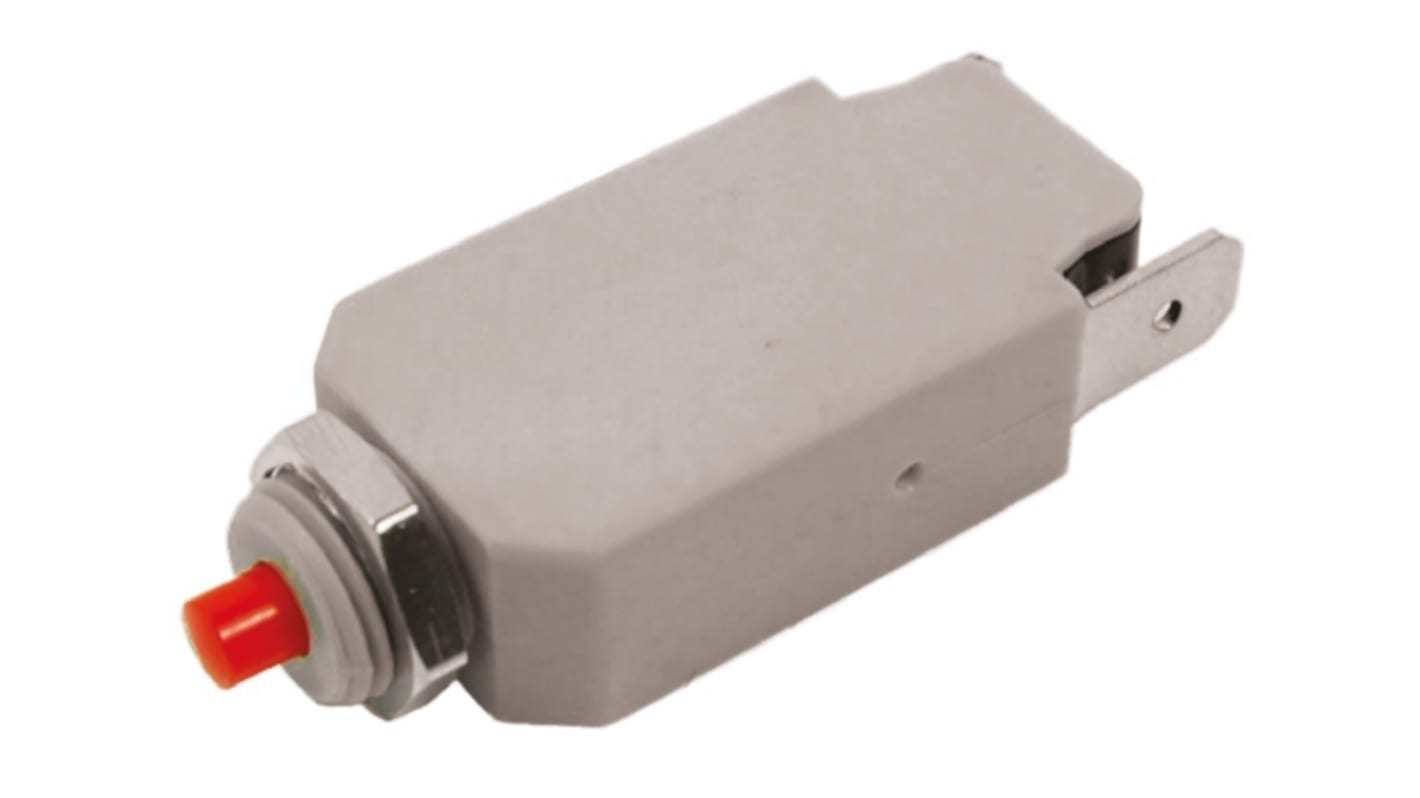

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 774-0036
- Distrelec Article No.:
- 304-51-246
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Thermal Circuit Breaker | |
| Current Rating | 13A | |
| Range | FC66 | |
| Series | A-0709 | |
| Number of Poles | 1 | |
| Width | 11mm | |
| Mount Type | Panel | |
| Terminal Type | Blade | |
| Mount Hole Size | M10 | |
| Reset Actuator Type | Push Button | |
| Rated AC Voltage | 240V ac | |
| Depth | 43.1mm | |
| Height | 19.1mm | |
| Standards/Approvals | VDE, RoHS | |
| Rated DC Voltage | 32V dc | |
| Breaking Capacity | 1000A | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Thermal Circuit Breaker | ||
Current Rating 13A | ||
Range FC66 | ||
Series A-0709 | ||
Number of Poles 1 | ||
Width 11mm | ||
Mount Type Panel | ||
Terminal Type Blade | ||
Mount Hole Size M10 | ||
Reset Actuator Type Push Button | ||
Rated AC Voltage 240V ac | ||
Depth 43.1mm | ||
Height 19.1mm | ||
Standards/Approvals VDE, RoHS | ||
Rated DC Voltage 32V dc | ||
Breaking Capacity 1000A | ||
- COO (Country of Origin):
- TW
Electronics Circuit Protection Devices - Manual Reset A-0709 Series
Electronics manual reset A-0709 series of circuit protection devices offer a comprehensive solution to a variety of circuit protection requirements. The A-0709 series is available in either M10 or snap-in types, with a range of values up to 16A. Applications include power supplies, amplifiers, UPS, regulators and generators.
Two mounting options
Manual reset
Long life
Highly reliable
