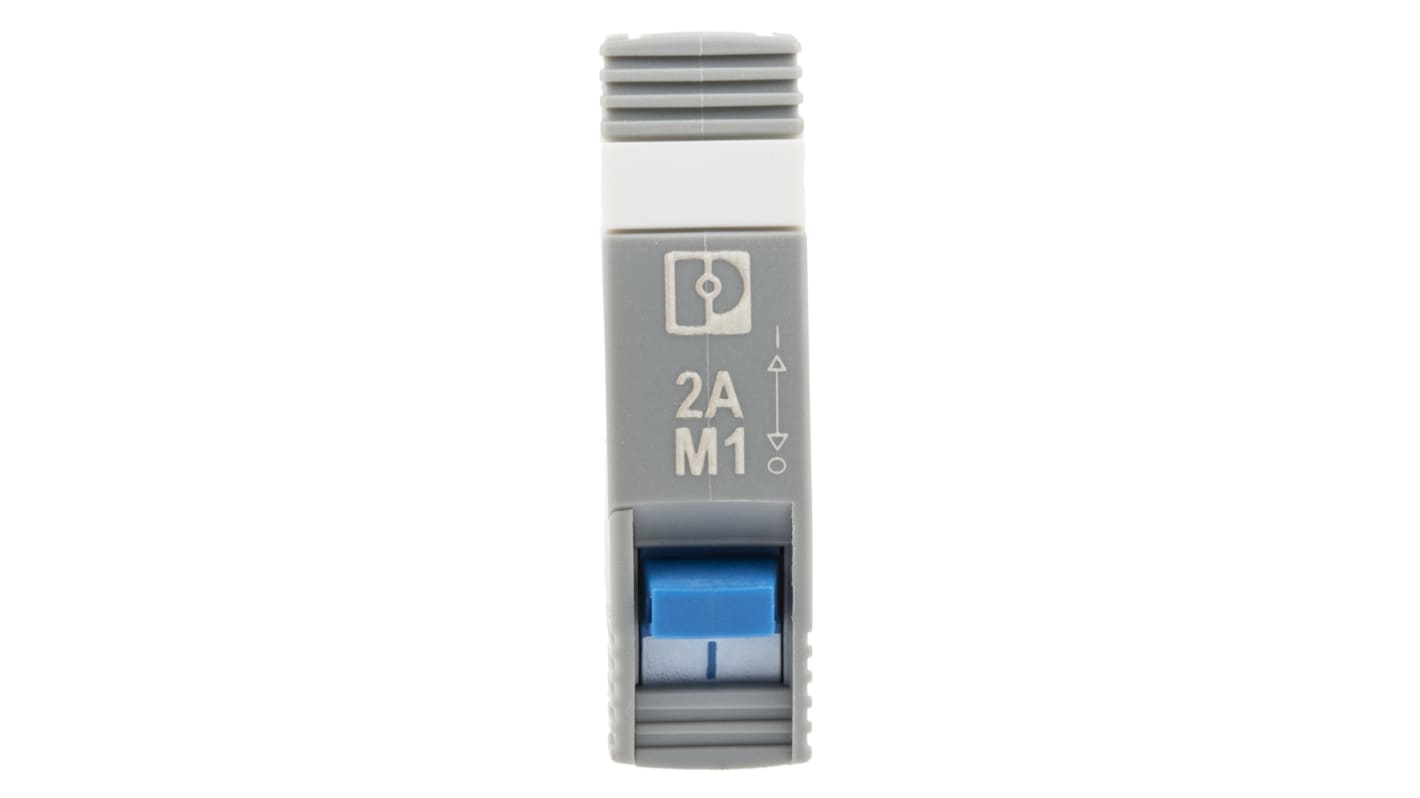

Phoenix Contact TRABTECH TRABTECH Thermal Circuit Breaker - 1-Pole, Base, 2 A Current Rating, 277 V ac, 50 V dc
- RS Stock No.:
- 768-0880
- Distrelec Article No.:
- 304-23-195
- Mfr. Part No.:
- 2800848
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR200.63
FREE delivery for orders over RM 500.00
Last RS stock
- Final 1 unit(s), ready to ship from another location
Units | Per Unit |
|---|---|
| 1 + | MYR200.63 |
*price indicative
- RS Stock No.:
- 768-0880
- Distrelec Article No.:
- 304-23-195
- Mfr. Part No.:
- 2800848
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Current Rating | 2 A | |
| Product Type | Thermal Circuit Breaker | |
| Series | TRABTECH | |
| Range | TRABTECH | |
| Number of Poles | 1 | |
| Width | 12.3 mm | |
| Mount Type | Base | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Push Button | |
| Tripping Characteristics | Type S | |
| Rated AC Voltage | 277 V ac | |
| Standards/Approvals | CE, RoHS | |
| Depth | 52mm | |
| Height | 45mm | |
| Break Time | Medium | |
| Rated DC Voltage | 50 V dc | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Current Rating 2 A | ||
Product Type Thermal Circuit Breaker | ||
Series TRABTECH | ||
Range TRABTECH | ||
Number of Poles 1 | ||
Width 12.3 mm | ||
Mount Type Base | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Push Button | ||
Tripping Characteristics Type S | ||
Rated AC Voltage 277 V ac | ||
Standards/Approvals CE, RoHS | ||
Depth 52mm | ||
Height 45mm | ||
Break Time Medium | ||
Rated DC Voltage 50 V dc | ||
- COO (Country of Origin):
- ID
Phoenix Contact TRABTECH Thermomagnetic Circuit Breakers
The TRABTECH range of plug in thermomagnetic circuit breakers uses the SFB technology to protect against overcurrent and short circuits.
The thermos magnetic devices have a different tripping time depending on the type of overload. The magnetic tripping will interrupt the circuit in milliseconds if there is a high overload current or a short circuit.
Features and Benefits
• IP30 rating
• SFB fuse type
• Snap-in for easy removal and secure hold
• Remote signalling means you can monitor from any location
• Precise nominal current levels
• Modular expansion is possible
• Easy to maintain
• Available as single pole or double pole
Phoenix Contact Circuit Breakers
