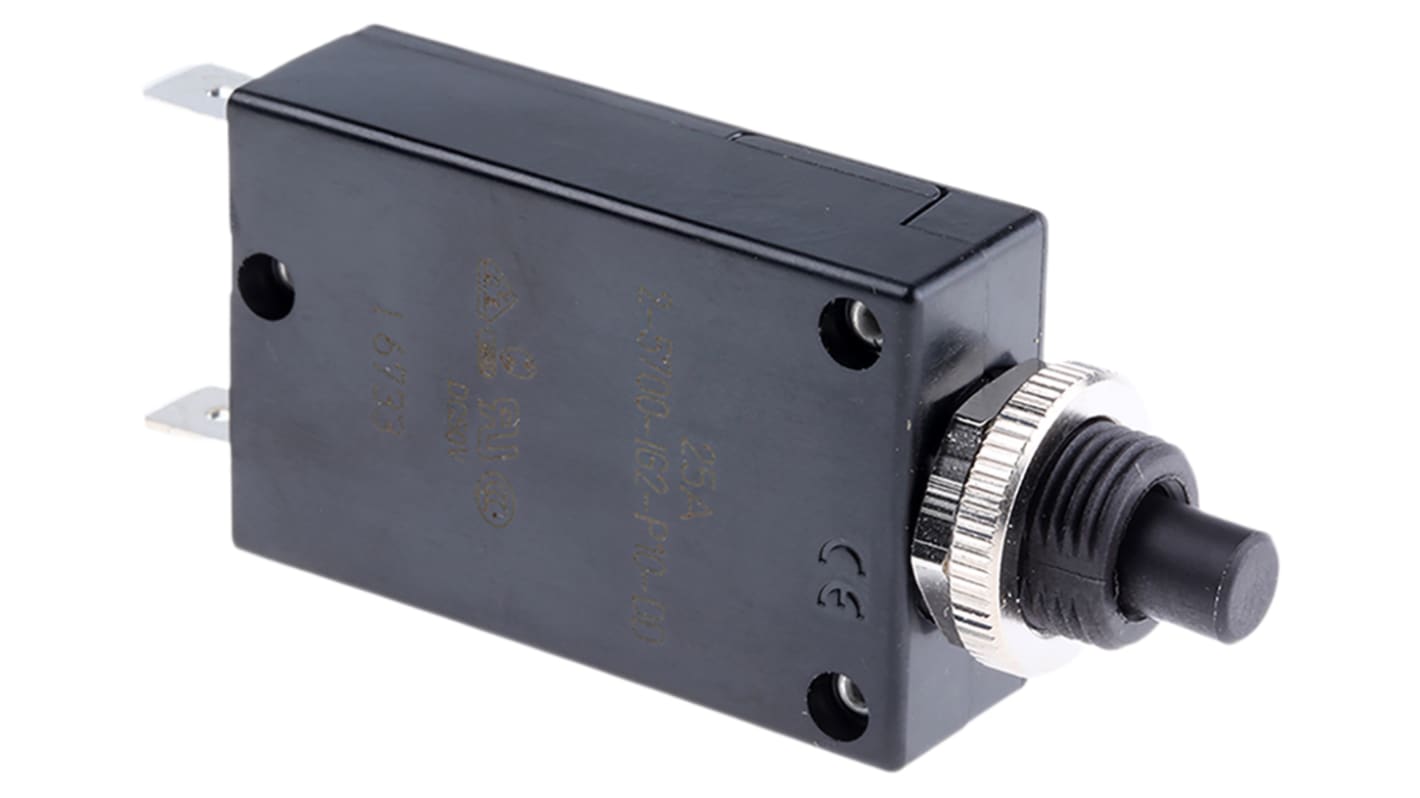

ETA Thermal Circuit Breaker - 2 5700 Single Pole 250V Voltage Rating Panel Mount, 25A Current Rating

View all Thermal Breakers
Bulk discount available

Subtotal (1 unit)*

MYR159.15

Add to Basket
Select or type quantity
In Stock
  • 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 99MYR159.15
100 - 249MYR156.43
250 - 499MYR147.71
500 +MYR143.22

*price indicative

RS Stock No.:
729-2776
Mfr. Part No.:
2-5700-IG2-P10-DD-000040-25A
Manufacturer:
ETA
Find similar products by selecting one or more attributes.
Select all

Brand

ETA

Current Rating

25A

Number of Poles

1

Voltage Rating

250V

Width

15.7mm

Series

2 5700

Tripping Mechanism

Thermal

Reset Actuator Type

Button

Rated AC Voltage

250V

Mounting Style

Panel Mount

Circuit Breaker Type

Thermal Circuit Breaker

Overall Dimensions

29 x 14.5 x 46.5mm

Overall Width

31mm

Overall Depth

46.5mm

Overall Length

29mm

Rated DC Voltage

50V

Terminal Contact Type

Blade

COO (Country of Origin):
TN

2-5700 Series Thermal Circuit Breaker


3/8 inch or M12 (mm) moulded thread-neck single-hole panel mounting

6.3-0.8 mm blade terminals

Small physical size

Tease free, Trip free mechanism for long life

Push to release/push to reset

On/off status indication

Overload and short circuit protection

Typical life 5000 operation at twice nominal current rating

Mainly for motors, transformers, power supplies and extra low voltage systems

IEC Classification S/TO

Approvals

UL; CSA; VDE (EN60934)
