ETA 1140-F Thermal Circuit Breaker - 1-Pole, Base, 8 A Current Rating, 25 A, 250 V ac, 50 V dc
- RS Stock No.:
- 728-8670
- Mfr. Part No.:
- 1140-F111-P1M1-8A
- Manufacturer:
- ETA

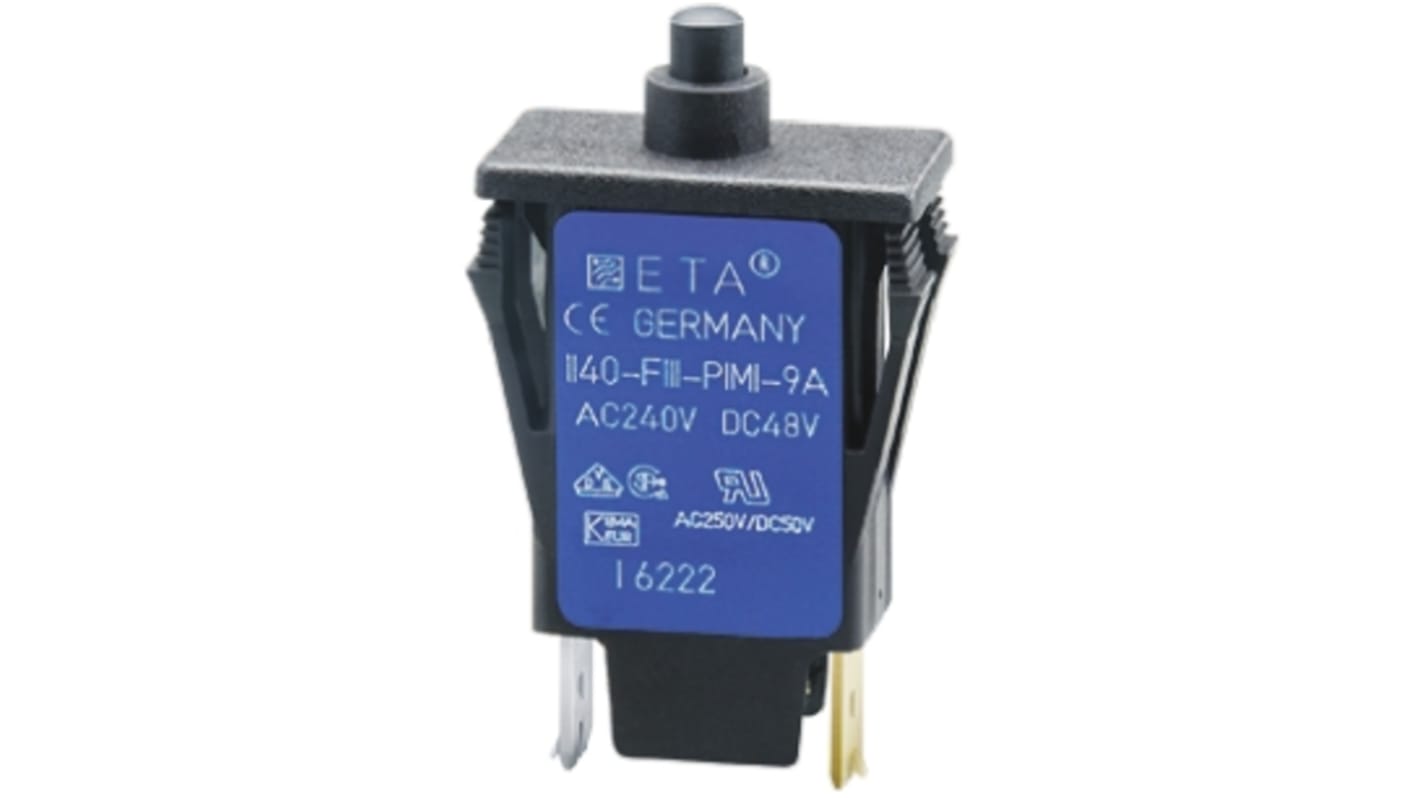

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR81.32
FREE delivery for orders over RM 500.00
In Stock
- 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 14 | MYR81.32 |
| 15 - 24 | MYR78.86 |
| 25 + | MYR76.50 |
*price indicative
- RS Stock No.:
- 728-8670
- Mfr. Part No.:
- 1140-F111-P1M1-8A
- Manufacturer:
- ETA
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ETA | |
| Current Rating | 8 A | |
| Product Type | Thermal Circuit Breaker | |
| Series | 1140-F | |
| Number of Poles | 1 | |
| Width | 14 mm | |
| Mount Type | Base | |
| Mount Hole Size | 4.2 mm | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Button | |
| Tripping Characteristics | Type R | |
| Standards/Approvals | RoHS, CE | |
| Rated AC Voltage | 250 V ac | |
| Rated DC Voltage | 50 V dc | |
| Breaking Capacity | 25A | |
| Break Time | Medium | |
| Select all | ||
|---|---|---|
Brand ETA | ||
Current Rating 8 A | ||
Product Type Thermal Circuit Breaker | ||
Series 1140-F | ||
Number of Poles 1 | ||
Width 14 mm | ||
Mount Type Base | ||
Mount Hole Size 4.2 mm | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Button | ||
Tripping Characteristics Type R | ||
Standards/Approvals RoHS, CE | ||
Rated AC Voltage 250 V ac | ||
Rated DC Voltage 50 V dc | ||
Breaking Capacity 25A | ||
Break Time Medium | ||
1140-F Series Thermal Circuit Breaker
Single pole thermal circuit breaker with push-to-reset
Trip-free, snap action mechanism
Snap-in panel mounting, Blade terminals
Approved to CBE standard EN 60934 (IEC 60934)
Typical applications in motors, transformers, solenoids, printed circuit boards, hand-held machines and appliances, marine applications, etc.
Approvals
UL; CSA; VDE.
