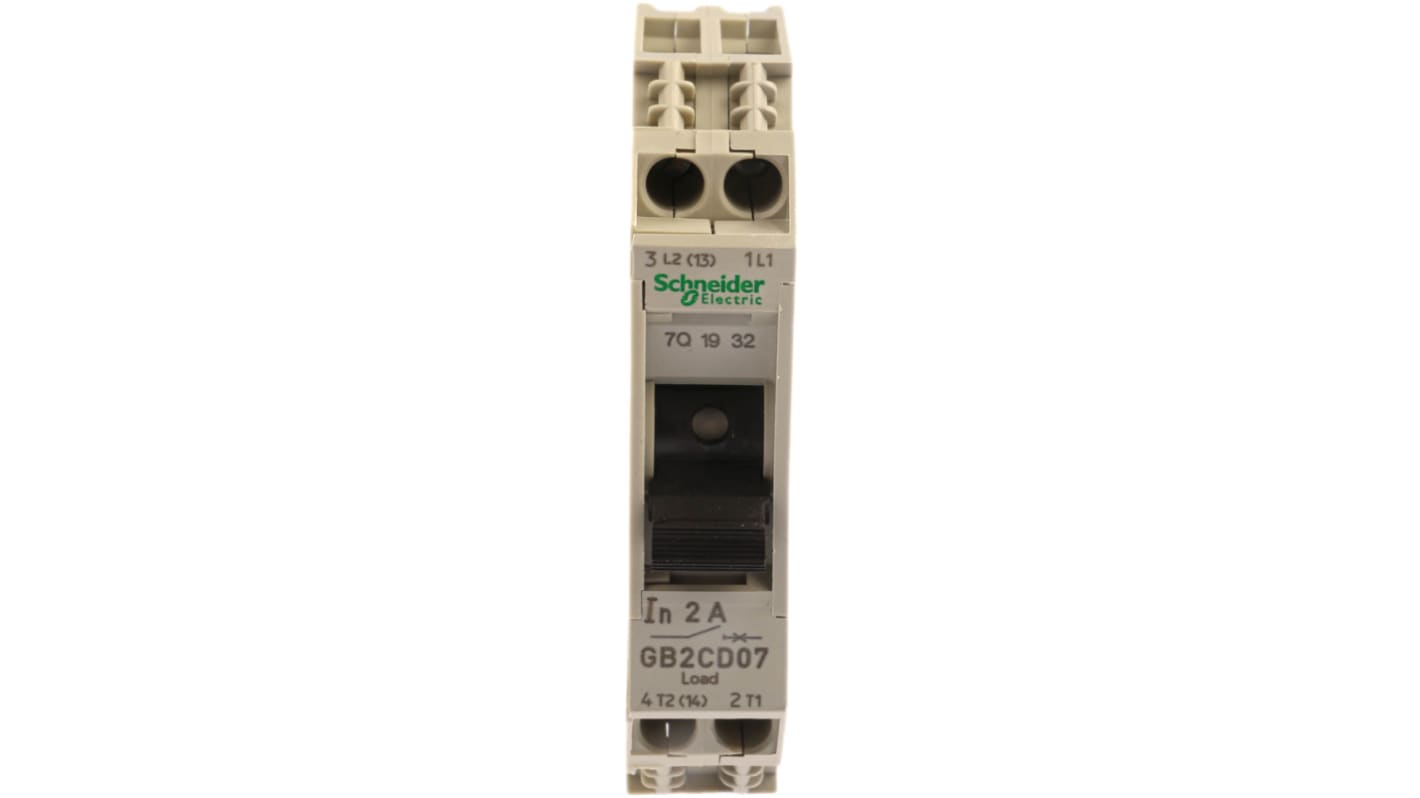

Schneider Electric TeSys TeSys Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 2 A Current Rating, 1.5 kA, 277 V

RS Stock No.:: 323-9009
Distrelec Article No.:: 303-99-767
Mfr. Part No.:: GB2CD07
Manufacturer:: Schneider Electric

Schneider Electric TeSys TeSys Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 2 A Current Rating, 1.5 kA, 277 V

Subtotal (1 unit)*

MYR227.60

FREE delivery for orders over RM 500.00

In Stock

51 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR227.60

*price indicative

RS Stock No.:: 323-9009
Distrelec Article No.:: 303-99-767
Mfr. Part No.:: GB2CD07
Manufacturer:: Schneider Electric

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Thermal Magnetic Circuit Breaker
	Current Rating	2 A
	Series	TeSys
	Range	TeSys
	Number of Poles	1
	Width	15 mm
	Mount Type	DIN Rail
	Terminal Type	Screw
	Tripping Mechanism	Thermal Magnetic
	Reset Actuator Type	Toggle Switch
	Rated AC Voltage	277 V ac
	Standards/Approvals	CE, RoHS
	Depth	70mm
	Height	80mm
	Rated DC Voltage	48 V dc
	Break Time	Medium
	Breaking Capacity	1.5kA

	Select all
	Brand Schneider Electric
	Product Type Thermal Magnetic Circuit Breaker
	Current Rating 2 A
	Series TeSys
	Range TeSys
	Number of Poles 1
	Width 15 mm
	Mount Type DIN Rail
	Terminal Type Screw
	Tripping Mechanism Thermal Magnetic
	Reset Actuator Type Toggle Switch
	Rated AC Voltage 277 V ac
	Standards/Approvals CE, RoHS
	Depth 70mm
	Height 80mm
	Rated DC Voltage 48 V dc
	Break Time Medium
	Breaking Capacity 1.5kA

Non Compliant

Schneider Electric Thermal Magnetic Circuit Breaker, 15kA Maximum AC Breaking Capacity, 2W Power Loss Per Pole - TeSys Series - GB2CD07

Time to upgrade your circuit's electrical safety system? Shut down hazards with this thermal magnetic circuit breaker from Schneider Electric. It stops short circuits and overcurrent before they become dangerous, providing comprehensive protection for personnel. Thanks to a responsive thermal-magnetic tripping mechanism, the device quickly breaks the circuit to eliminate the risk of damage to any connected equipment. As it resets with a flick of the handy toggle switch, your gear gets up and running again in no time.

Features & Benefits

• Measures just 15 (W) x 74 (H) x 67mm (D), so easily slots into a small enclosure

• Low power loss of 2W per pole for energy-efficient circuit protection

• Screw conductor terminals provide a solid wire connection and resistance to vibrating conditions

• Mechanical durability of 8,000 cycles for long-lasting use and low maintenance

• Rated operational voltage of 277V AC and 48V DC suits domestic and commercial electrical systems

Applications

• Agricultural equipment

• Food production

• Recycling centres

How do I mount this circuit breaker in my system?

It clips onto a standard DIN rail, meaning installation can be done quickly by hand, so you won't need to rummage in your toolkit.
