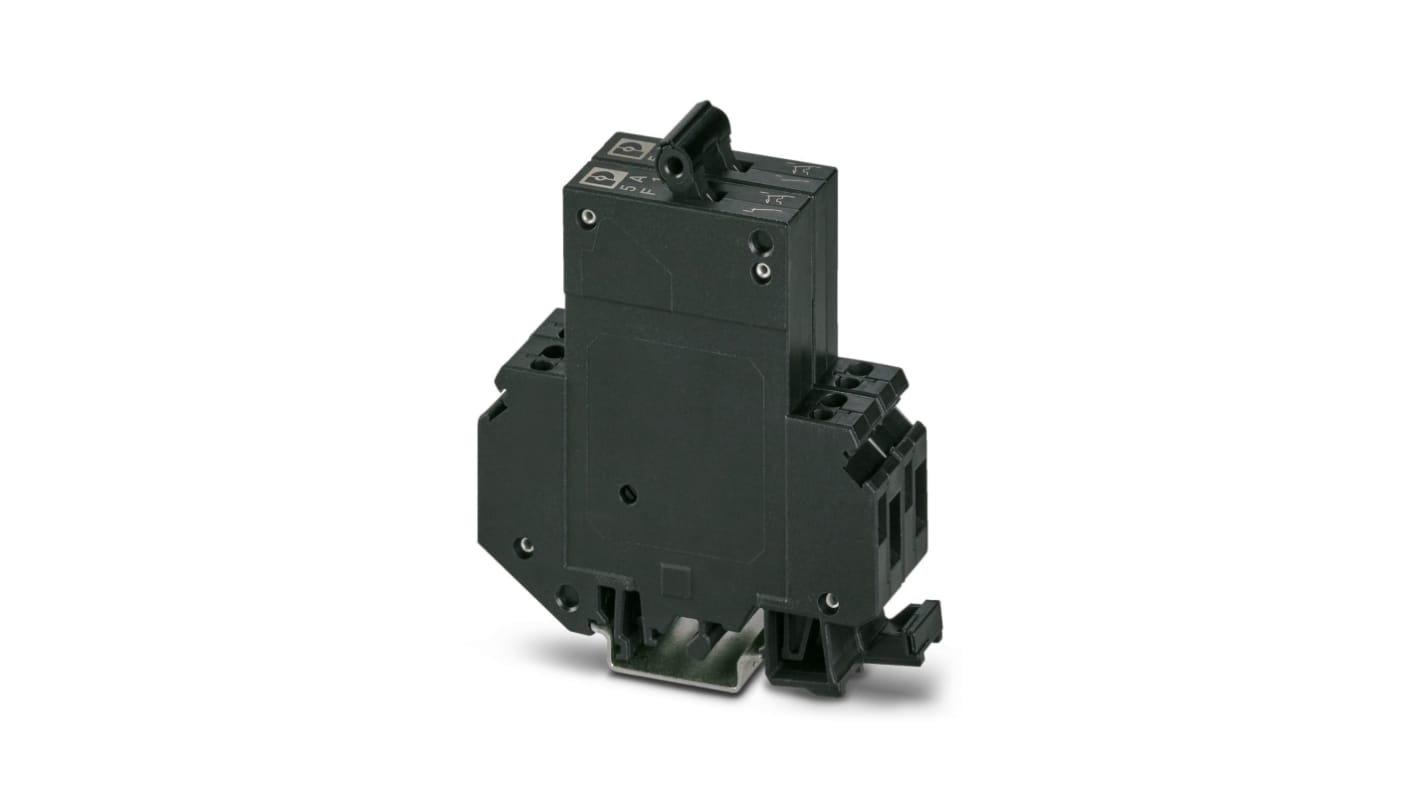

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 2-Pole, DIN Rail, 5A Current Rating, 2000 A, 65V ac, 65 V dc
- RS Stock No.:
- 135-506
- Mfr. Part No.:
- 0914853
- Manufacturer:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 135-506
- Mfr. Part No.:
- 0914853
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Current Rating | 5A | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Series | TMC | |
| Number of Poles | 2 | |
| Range | TMC | |
| Width | 25mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Mount Hole Size | 35 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Standards/Approvals | EN 60934, UL 1077, EAC, RoHS, UL, CSA, VDE Zeichengenehmigung | |
| Rated AC Voltage | 65V ac | |
| Depth | 96mm | |
| Height | 82.5mm | |
| Break Time | Instantaneous | |
| Rated DC Voltage | 65V dc | |
| Breaking Capacity | 2000A | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Current Rating 5A | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Series TMC | ||
Number of Poles 2 | ||
Range TMC | ||
Width 25mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Mount Hole Size 35 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Standards/Approvals EN 60934, UL 1077, EAC, RoHS, UL, CSA, VDE Zeichengenehmigung | ||
Rated AC Voltage 65V ac | ||
Depth 96mm | ||
Height 82.5mm | ||
Break Time Instantaneous | ||
Rated DC Voltage 65V dc | ||
Breaking Capacity 2000A | ||
- COO (Country of Origin):
- DE
The Phoenix Contact thermomagnetic device circuit breaker is designed for fast blow applications and features 2 positions with 1 normally open contact and 1 normally closed contact. It comes with a universal foot for easy mounting on NS 32 or NS 35 rails. With a rated voltage of 65 V DC and a rated current of 5 A, it offers reliable protection for your electrical circuits. The 120 5, 0A has a compact and lightweight design with a weight of 132.6 g (including packing), making it easy to install and transport. It has a high short-circuit switching capacity of 400 A and is suitable for various industrial and commercial applications.
Compact design for easy installation and integration
Universal foot for mounting
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
Suitable for various applications that require reliable circuit protection
