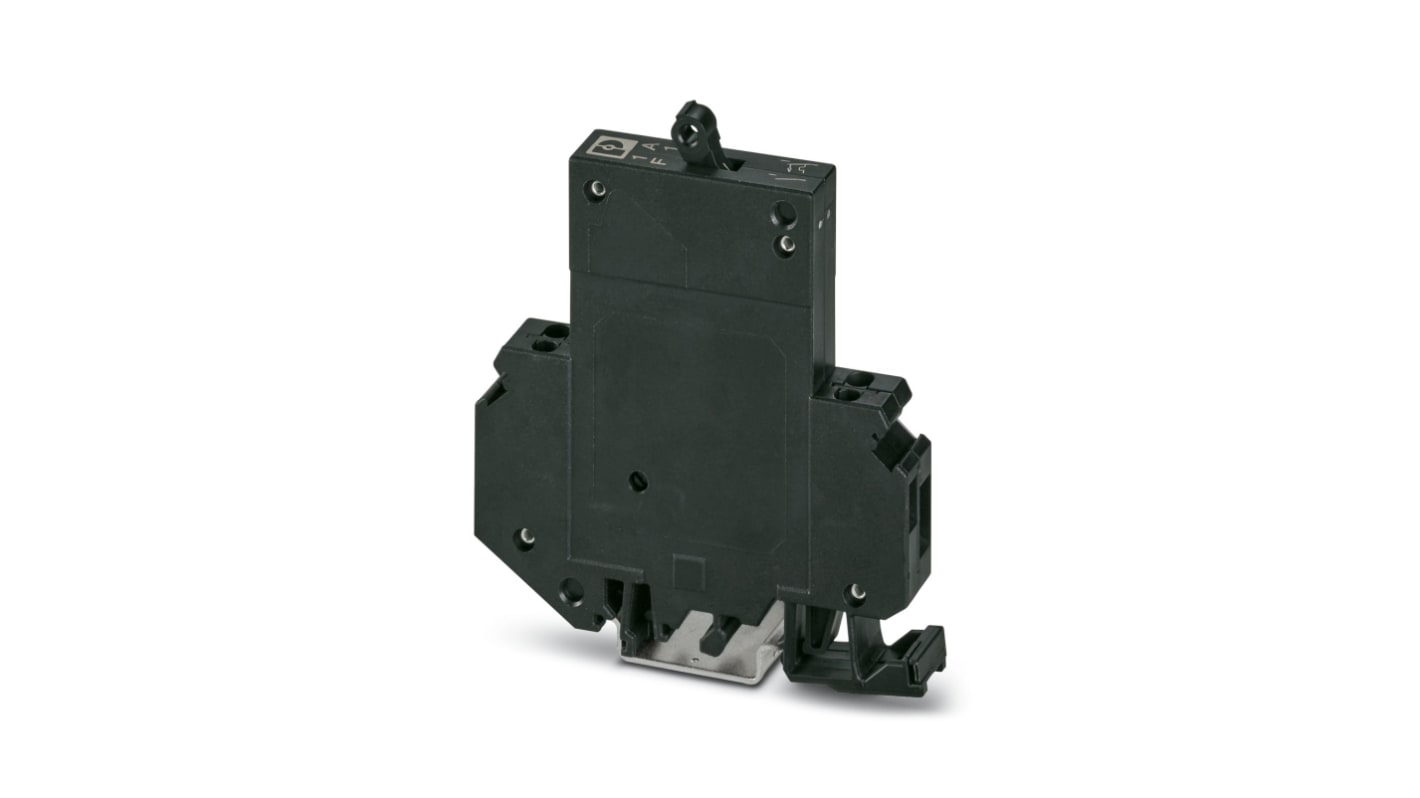

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 1A Current Rating, 2000 A, 65V ac/dc, 65 V
- RS Stock No.:
- 135-429
- Mfr. Part No.:
- 0914073
- Manufacturer:
- Phoenix Contact
Subtotal (1 pack of 6 units)*
MYR2,301.96
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per Unit* |
|---|---|---|
| 1 + | MYR2,301.96 | MYR383.66 |
*price indicative
- RS Stock No.:
- 135-429
- Mfr. Part No.:
- 0914073
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Current Rating | 1A | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Range | TMC | |
| Series | TMC | |
| Number of Poles | 1 | |
| Width | 12.5mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Mount Hole Size | 35 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Rated AC Voltage | 65V ac/dc | |
| Depth | 96mm | |
| Height | 82.5mm | |
| Standards/Approvals | UL 1077, UL, CSA, RoHS, VDE Zeichengenehmigung, EAC, EN 60934 | |
| Break Time | Instantaneous | |
| Breaking Capacity | 2000A | |
| Rated DC Voltage | 65V dc | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Current Rating 1A | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Range TMC | ||
Series TMC | ||
Number of Poles 1 | ||
Width 12.5mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Mount Hole Size 35 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Rated AC Voltage 65V ac/dc | ||
Depth 96mm | ||
Height 82.5mm | ||
Standards/Approvals UL 1077, UL, CSA, RoHS, VDE Zeichengenehmigung, EAC, EN 60934 | ||
Break Time Instantaneous | ||
Breaking Capacity 2000A | ||
Rated DC Voltage 65V dc | ||
- COO (Country of Origin):
- DE
The Phoenix Contact thermomagnetic device circuit breaker is designed for reliable circuit protection with a nominal current of 1A. This circuit breaker is suitable for use in DIN rail modules and offers one position for easy installation. With a wide range of connection options, including screw connection, it can accommodate cross sections ranging from 0.2 mm² to 6 mm². It is a high-quality and durable circuit breaker that provides reliable protection for your electrical circuits.
Compact design for easy installation and integration
Universal foot for mounting
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
Suitable for various applications that require reliable circuit protection
