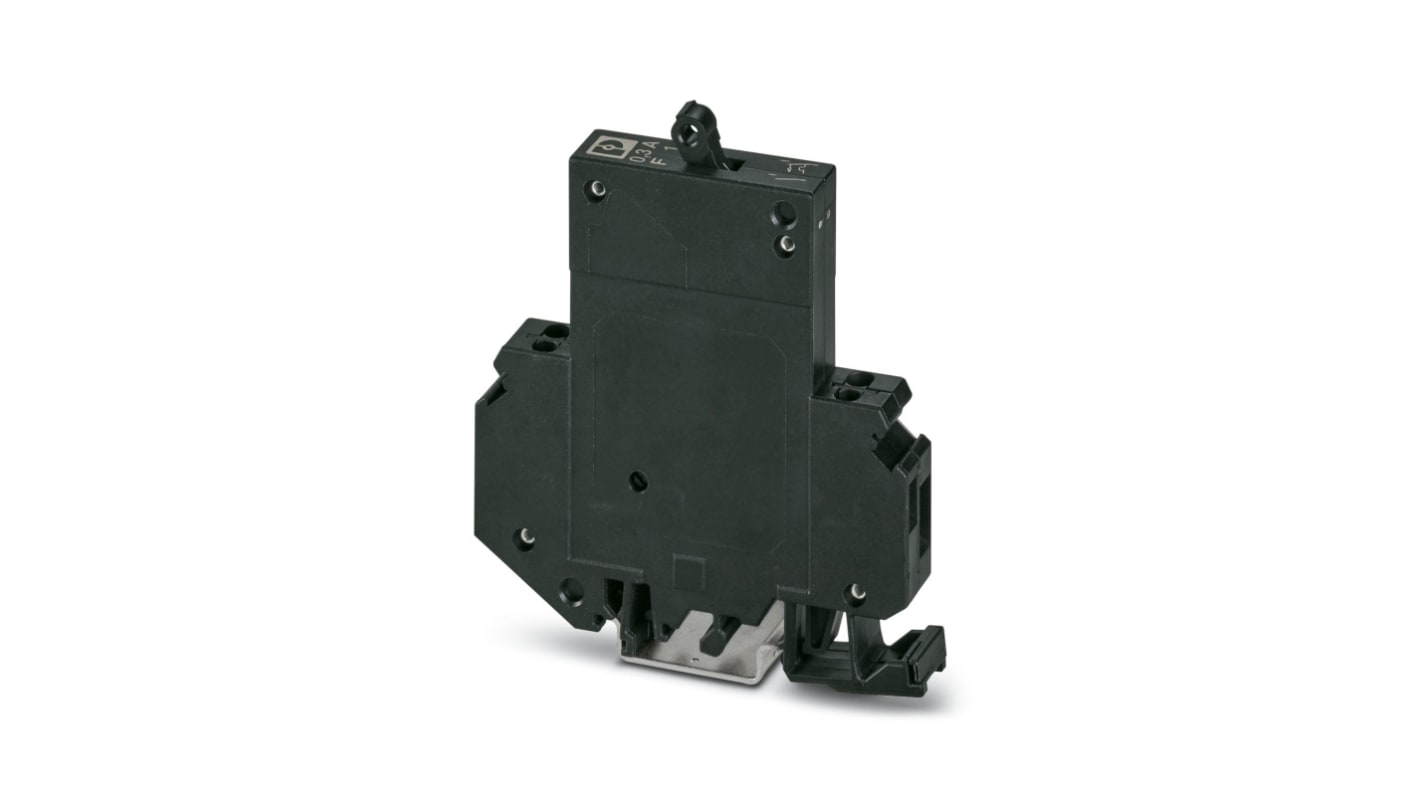

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 300 mA Current Rating, 2000 A, 65 V ac, 65
- RS Stock No.:
- 135-423
- Mfr. Part No.:
- 0914028
- Manufacturer:
- Phoenix Contact
Subtotal (1 pack of 6 units)*
MYR2,301.96
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per Unit* |
|---|---|---|
| 1 + | MYR2,301.96 | MYR383.66 |
*price indicative
- RS Stock No.:
- 135-423
- Mfr. Part No.:
- 0914028
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Current Rating | 300 mA | |
| Range | TMC | |
| Series | TMC | |
| Number of Poles | 1 | |
| Width | 12.5 mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Mount Hole Size | 35 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Standards/Approvals | VDE Zeichengenehmigung, RoHS, UL, EAC, EN 60934, UL 1077, CSA | |
| Height | 82.5mm | |
| Depth | 96mm | |
| Rated AC Voltage | 65 V ac | |
| Break Time | Instantaneous | |
| Rated DC Voltage | 65 V dc | |
| Breaking Capacity | 2000A | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Current Rating 300 mA | ||
Range TMC | ||
Series TMC | ||
Number of Poles 1 | ||
Width 12.5 mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Mount Hole Size 35 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Standards/Approvals VDE Zeichengenehmigung, RoHS, UL, EAC, EN 60934, UL 1077, CSA | ||
Height 82.5mm | ||
Depth 96mm | ||
Rated AC Voltage 65 V ac | ||
Break Time Instantaneous | ||
Rated DC Voltage 65 V dc | ||
Breaking Capacity 2000A | ||
- COO (Country of Origin):
- DE
The Phoenix Contact thermomagnetic device circuit breaker designed for industrial applications. This circuit breaker features a screw connection for easy installation, and it has a nominal current of 0.3A. With its automatic device fuse type and DIN rail mounting, it provides reliable protection for electrical equipment. The device has a rated voltage of 65V DC and a rated surge voltage of 2.5kV, ensuring efficient and safe operation. It is made from high-quality materials and meets stringent quality standards, making it a durable and dependable choice for your circuit protection needs.
Compact design for easy installation and integration
Universal foot for mounting
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
Suitable for various applications that require reliable circuit protection
