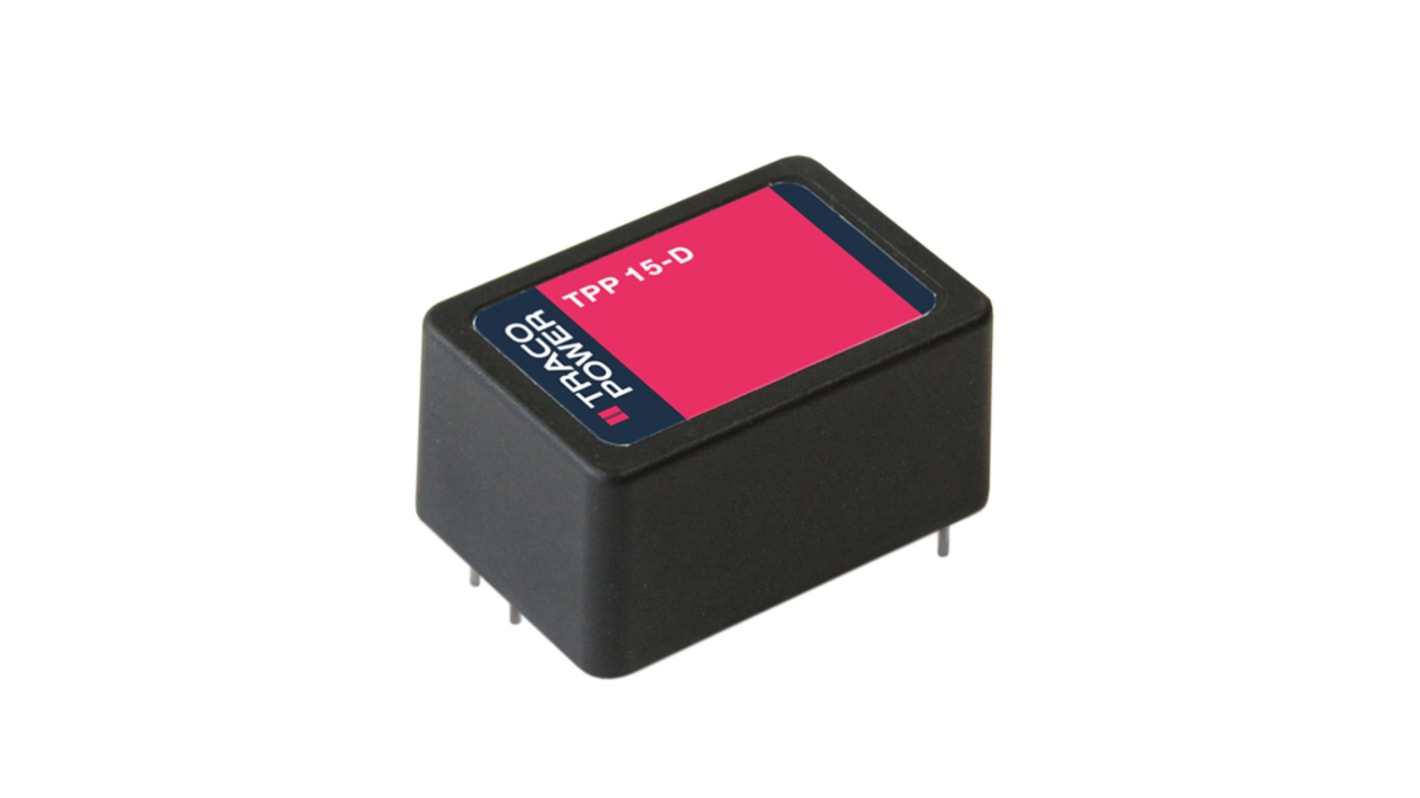

TRACOPOWER Switching Power Supply, TPP 15-136-D, 36V dc, 417mA, 15W, 1 Output, 120 → 370 V dc, 85 → 264 V
- RS Stock No.:
- 177-0177
- Mfr. Part No.:
- TPP 15-136-D
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
MYR166.65
FREE delivery for orders over RM 500.00
In Stock
- Plus 3 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR166.65 |
| 10 - 49 | MYR161.55 |
| 50 + | MYR156.65 |
*price indicative
- RS Stock No.:
- 177-0177
- Mfr. Part No.:
- TPP 15-136-D
- Manufacturer:
- TRACOPOWER
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 36V dc | |
| Output Current | 417mA | |
| Power Rating | 15W | |
| Number of Outputs | 1 | |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Enclosed | |
| Length | 42mm | |
| Width | 28.9mm | |
| Medical Approved | Yes | |
| Depth | 21.5mm | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Weight | 43g | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 36V dc | ||
Output Current 417mA | ||
Power Rating 15W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 370 V dc, 85 → 264 V ac | ||
Mounting Type PCB Mount | ||
Package Type Enclosed | ||
Length 42mm | ||
Width 28.9mm | ||
Medical Approved Yes | ||
Depth 21.5mm | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Weight 43g | ||
- COO (Country of Origin):
- TW
The TPP 15-D AC/DC power supplies feature a reinforced double I/O isolation system. The earth leakage current is below 75 μA what makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 88.5% offers a high power density in the packaging format 1.1” x 1.65”. The full load operating temperature range covers –40°C to +70°C while it goes up to 85°C with 50% load derating.
High power density power supply (encapsulated)
Operating up to 5000m altitude
No load power consumption
5 year product warranty
Operating up to 5000m altitude
No load power consumption
5 year product warranty
