Units	Per Unit	Per Pack**
100 - 1900	MYR0.142	MYR14.20
2000 - 3900	MYR0.137	MYR13.70
4000 +	MYR0.13	MYR13.00

Select all	Attribute	Value
	Brand	onsemi
	Maximum Forward Current	300mA
	Diode Configuration	Single
	Number of Elements per Chip	1
	Mounting Type	Surface Mount
	Maximum Reverse Voltage	75V
	Package Type	SOD-523F
	Pin Count	2
	Maximum Forward Voltage Drop	720mV
	Maximum Diode Capacitance	4pF
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+150 °C
	Length	1.3mm
	Width	0.9mm
	Height	0.7mm
	Dimensions	1.3 x 0.9 x 0.7mm
	Power Dissipation	200mW

	Select all
	Brand onsemi
	Maximum Forward Current 300mA
	Diode Configuration Single
	Number of Elements per Chip 1
	Mounting Type Surface Mount
	Maximum Reverse Voltage 75V
	Package Type SOD-523F
	Pin Count 2
	Maximum Forward Voltage Drop 720mV
	Maximum Diode Capacitance 4pF
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +150 °C
	Length 1.3mm
	Width 0.9mm
	Height 0.7mm
	Dimensions 1.3 x 0.9 x 0.7mm
	Power Dissipation 200mW

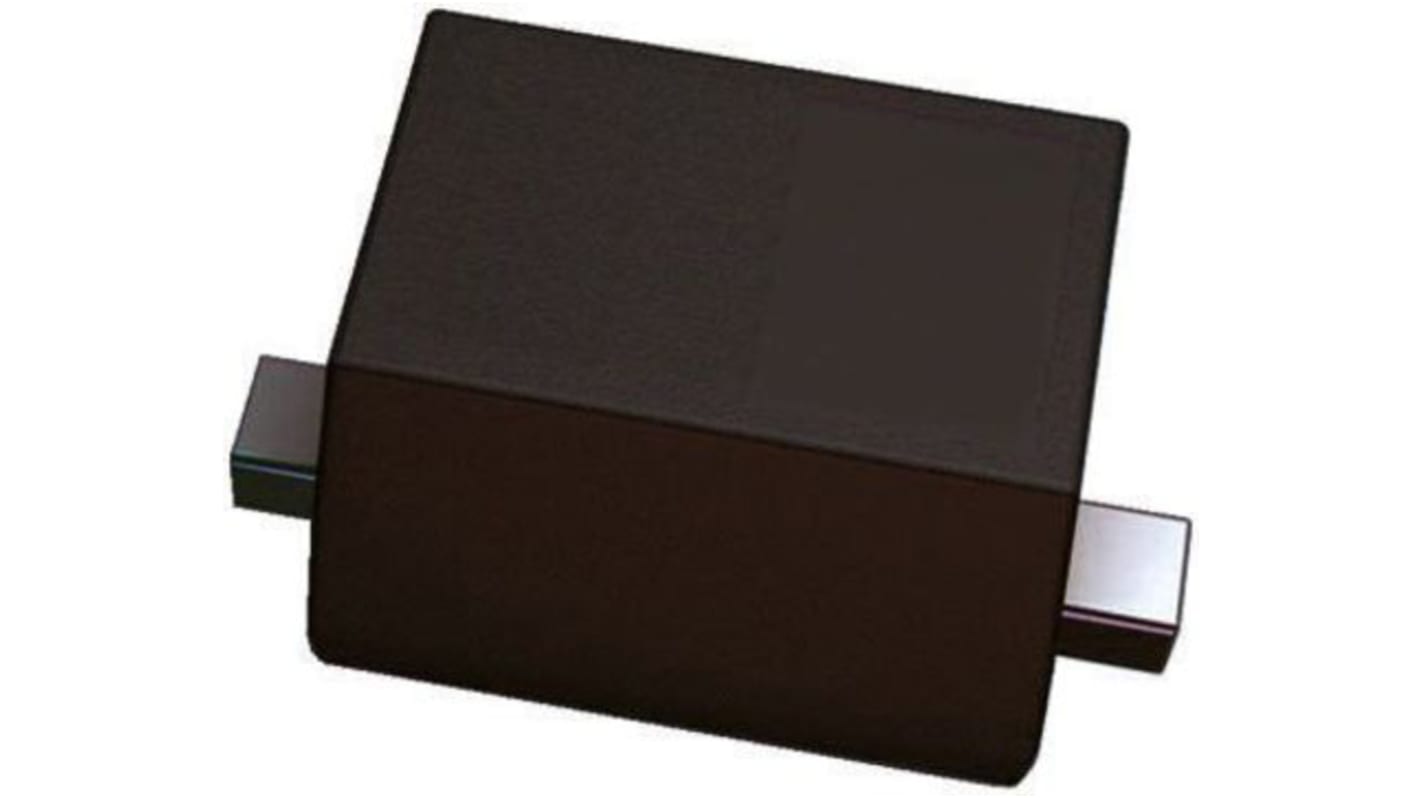

onsemi Switching Diode, 300mA 75V, 2-Pin SOD-523F 1N914BWT

FREE delivery for orders over MYR500.00

Small Signal Switching Diodes, ON Semiconductor

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
