Units	Per Unit	Per Pack**
250 - 500	MYR0.162	MYR40.50
750 - 1250	MYR0.156	MYR39.00
1500 +	MYR0.15	MYR37.50

Select all	Attribute	Value
	Brand	onsemi
	Maximum Forward Current	100 mA, 150 mA
	Diode Configuration	Common Cathode
	Number of Elements per Chip	2
	Mounting Type	Surface Mount
	Maximum Reverse Voltage	80V
	Package Type	SOT-323 (SC-70)
	Diode Technology	Silicon Junction
	Pin Count	3
	Maximum Forward Voltage Drop	1.2V
	Maximum Diode Capacitance	2pF
	Maximum Operating Temperature	+150 °C
	Length	2.2mm
	Width	1.35mm
	Height	0.9mm
	Dimensions	2.2 x 1.35 x 0.9mm
	Maximum Series Resistance @ Maximum IF	100 Ω @ 100 mA

	Select all
	Brand onsemi
	Maximum Forward Current 100 mA, 150 mA
	Diode Configuration Common Cathode
	Number of Elements per Chip 2
	Mounting Type Surface Mount
	Maximum Reverse Voltage 80V
	Package Type SOT-323 (SC-70)
	Diode Technology Silicon Junction
	Pin Count 3
	Maximum Forward Voltage Drop 1.2V
	Maximum Diode Capacitance 2pF
	Maximum Operating Temperature +150 °C
	Length 2.2mm
	Width 1.35mm
	Height 0.9mm
	Dimensions 2.2 x 1.35 x 0.9mm
	Maximum Series Resistance @ Maximum IF 100 Ω @ 100 mA

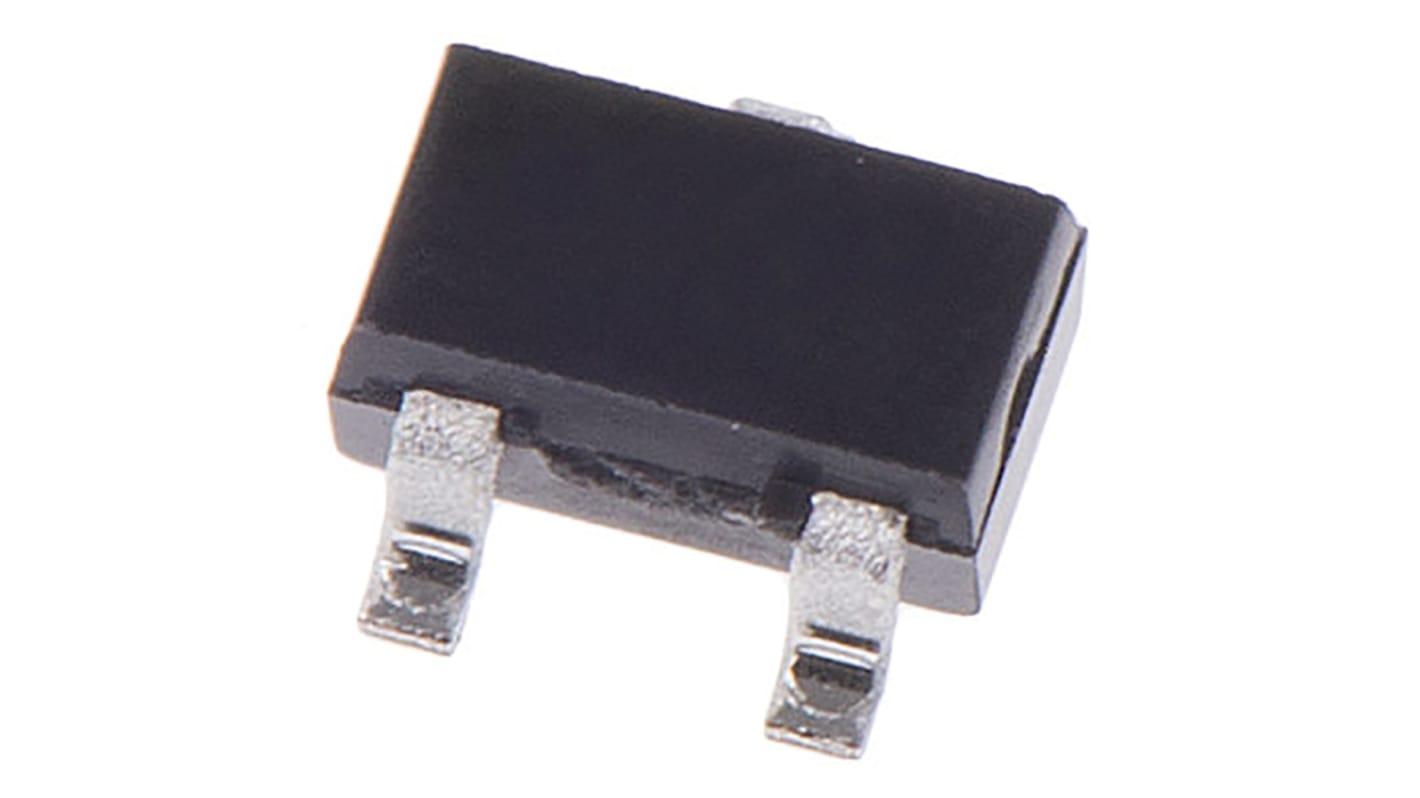

onsemi Dual Switching Diode, Common Cathode, 100 mA, 150 mA 80V, 3-Pin SOT-323 M1MA142WKT1G

FREE delivery for orders over MYR500.00

Small Signal Switching Diodes, ON Semiconductor

Standards

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
