STMicroelectronics Switching Diode, Single, 8 A, 2-Pin 1200 V TO-220 STTH812FP
- RS Stock No.:
- 795-9035
- Mfr. Part No.:
- STTH812FP
- Manufacturer:
- STMicroelectronics

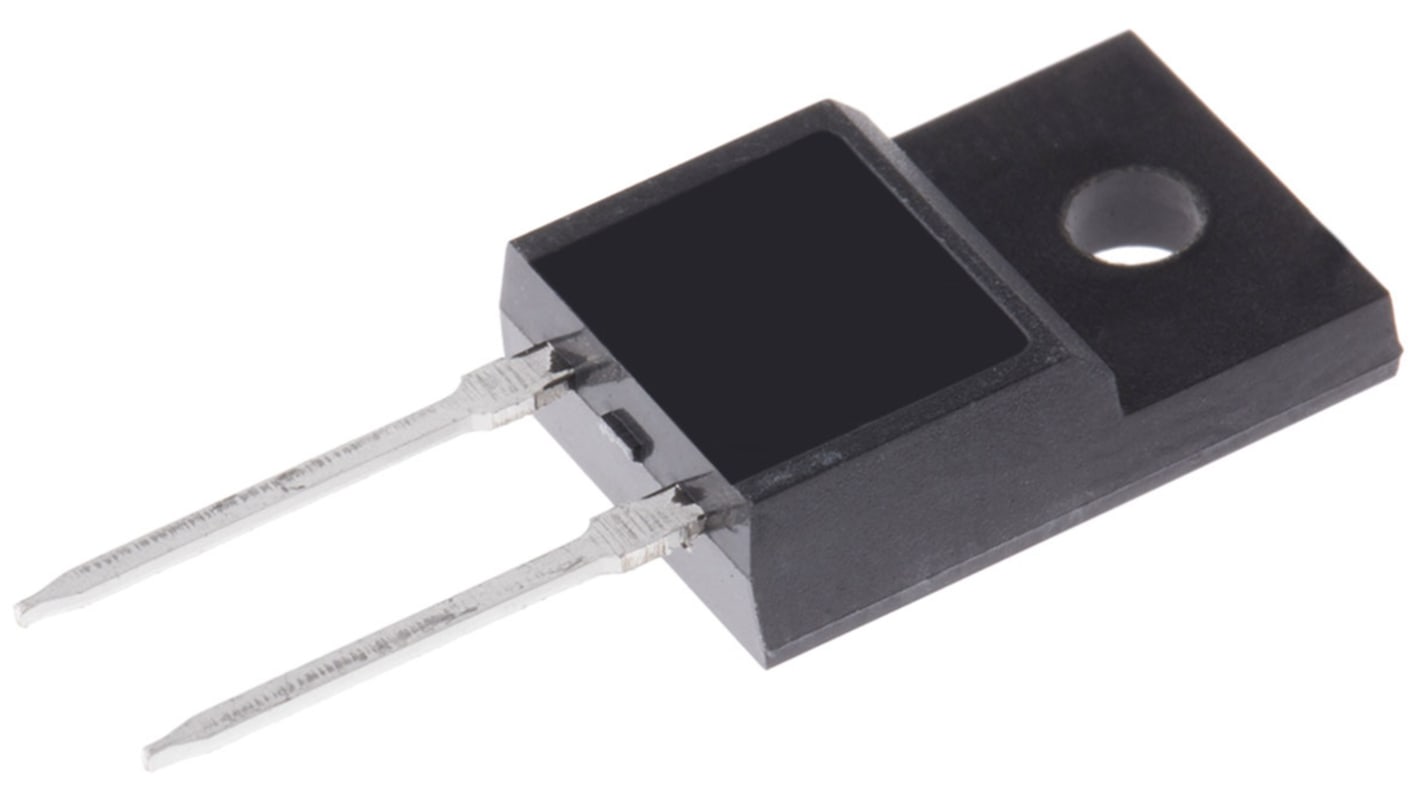

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR25.79
FREE delivery for orders over RM 500.00
In Stock
- Plus 155 unit(s) shipping from 04 May 2026
- Plus 450 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 10 | MYR5.158 | MYR25.79 |
| 15 - 20 | MYR5.052 | MYR25.26 |
| 25 + | MYR4.90 | MYR24.50 |
*price indicative
- RS Stock No.:
- 795-9035
- Mfr. Part No.:
- STTH812FP
- Manufacturer:
- STMicroelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Diode Configuration | Single | |
| Maximum Forward Current If | 8A | |
| Product Type | Switching Diode | |
| Mount Type | Through Hole | |
| Sub Type | Silicon Junction | |
| Package Type | TO-220 | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 2.2V | |
| Peak Reverse Recovery Time trr | 47ns | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 1200V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A | |
| Maximum Operating Temperature | 175°C | |
| Height | 16.4mm | |
| Standards/Approvals | No | |
| Length | 10.4mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Diode Configuration Single | ||
Maximum Forward Current If 8A | ||
Product Type Switching Diode | ||
Mount Type Through Hole | ||
Sub Type Silicon Junction | ||
Package Type TO-220 | ||
Pin Count 2 | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 2.2V | ||
Peak Reverse Recovery Time trr 47ns | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 1200V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 60A | ||
Maximum Operating Temperature 175°C | ||
Height 16.4mm | ||
Standards/Approvals No | ||
Length 10.4mm | ||
Automotive Standard No | ||
Rectifier Diodes, 4A to 9A, STMicroelectronics
Diodes and Rectifiers, STMicroelectronics
