DiodesZetex Switching Diode, Common Cathode, 40 A, 3-Pin 300 V TO-220 SBR40U300CT
- RS Stock No.:
- 751-4916
- Mfr. Part No.:
- SBR40U300CT
- Manufacturer:
- DiodesZetex

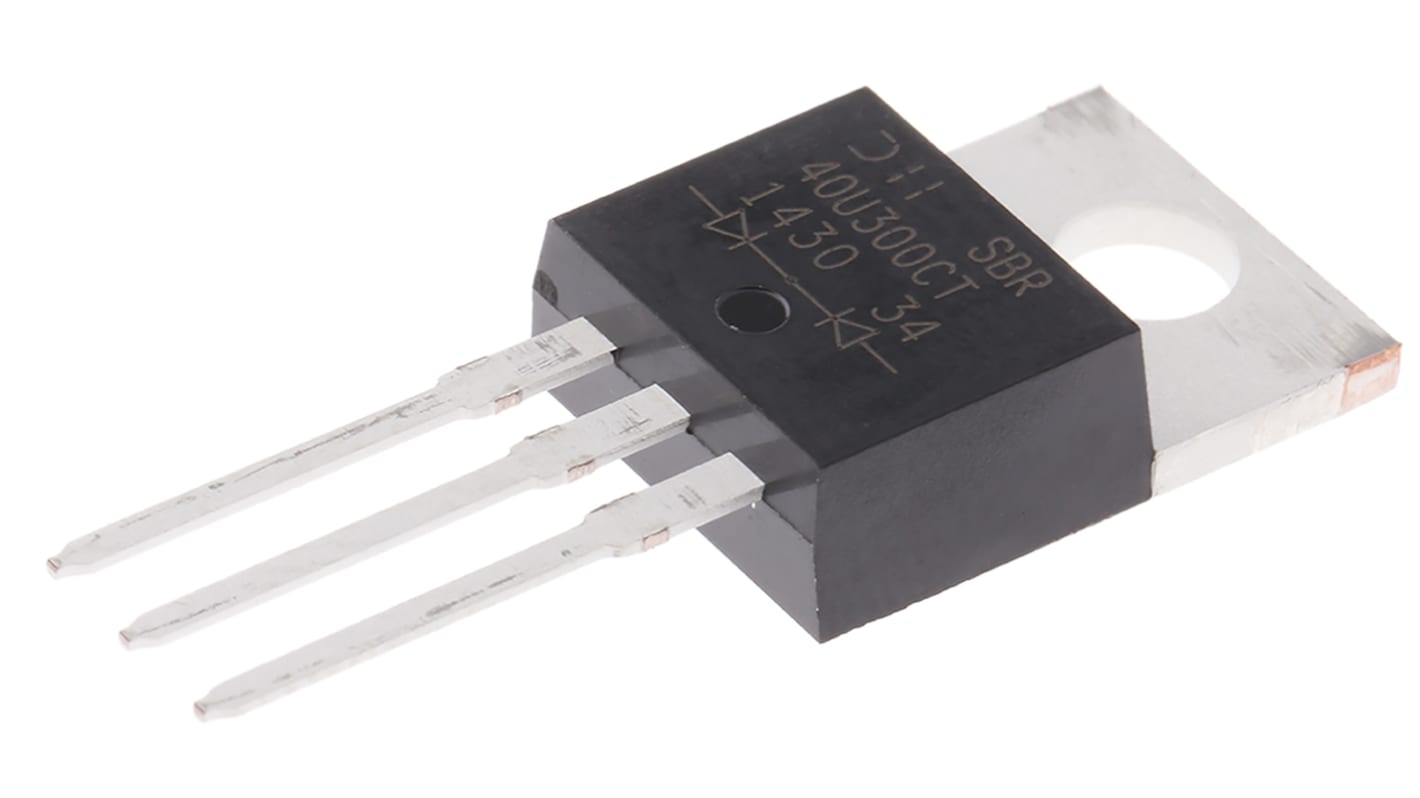

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR13.04
FREE delivery for orders over RM 150.00
In Stock
- Plus 11 unit(s) shipping from 17 August 2026
- Plus 6 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 12 | MYR13.04 |
| 13 - 24 | MYR12.65 |
| 25 + | MYR12.26 |
*price indicative
- RS Stock No.:
- 751-4916
- Mfr. Part No.:
- SBR40U300CT
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Switching Diode | |
| Maximum Forward Current If | 40A | |
| Diode Configuration | Common Cathode | |
| Sub Type | Silicon Junction | |
| Mount Type | Through Hole | |
| Package Type | TO-220 | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -65°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 235A | |
| Maximum Forward Voltage Vf | 890mV | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 300V | |
| Peak Reverse Recovery Time trr | 50ns | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Height | 16.51mm | |
| Length | 10.66mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Switching Diode | ||
Maximum Forward Current If 40A | ||
Diode Configuration Common Cathode | ||
Sub Type Silicon Junction | ||
Mount Type Through Hole | ||
Package Type TO-220 | ||
Pin Count 3 | ||
Minimum Operating Temperature -65°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 235A | ||
Maximum Forward Voltage Vf 890mV | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 300V | ||
Peak Reverse Recovery Time trr 50ns | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Height 16.51mm | ||
Length 10.66mm | ||
Automotive Standard No | ||
Performance Rectifiers, SBR (Super Barrier Rectifier), Diodes Inc
Diodes and Rectifiers, Diodes Inc
