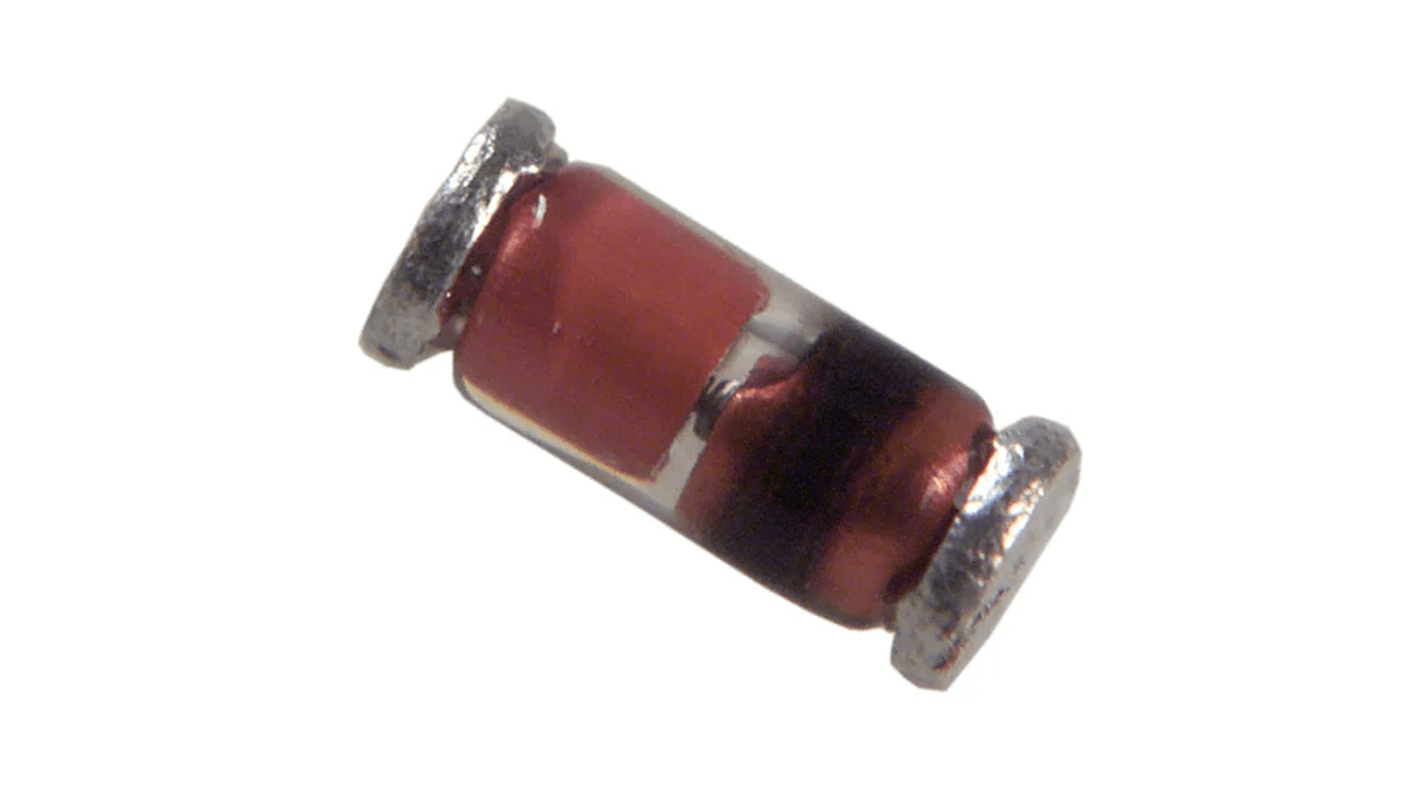

Vishay Switching Diode, 2-Pin MiniMELF BAV103-GS08

View all Switching Diodes

Subtotal (1 reel of 2500 units)*

MYR357.50

MYR357.50

Add to Basket
Select or type quantity
Last RS stock
  • Final 37,500 unit(s), ready to ship from another location
Units
Per Unit
Per Reel*
2500 +MYR0.143MYR357.50

*price indicative

RS Stock No.:
177-7589
Mfr. Part No.:
BAV103-GS08
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

Single

Mounting Type

Surface Mount

Number of Elements per Chip

1

Package Type

MiniMELF

Diode Technology

Silicon Junction

Pin Count

2

Maximum Forward Voltage Drop

1V

Minimum Operating Temperature

-65 °C

Maximum Operating Temperature

+175 °C

Length

3.7mm

Width

1.6mm

Height

1.6mm

Dimensions

1.6 x 3.7 x 1.6mm

Glass Passivated Junction Fast Switching Plastic Rectifier


Features
• Superectifier structure for high reliability condition
• Cavity-free glass-passivated junction
• Fast switching for high efficiency
• Low leakage current, typical IR less than 0.2 μA
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106

Typical Applications
High voltage rectification of G2 grid CRT and TV, snubber
circuit of camera flash.

Mechanical Data
Case: DO-204AL, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity: Color band denotes cathode end
