Select all	Attribute	Value
	Brand	DiodesZetex
	Diode Configuration	2x Series Pair
	Maximum Forward Current	215mA
	Number of Elements per Chip	4
	Mounting Type	Surface Mount
	Maximum Reverse Voltage	75V
	Package Type	SOT-563
	Diode Technology	Silicon Junction
	Maximum Forward Voltage Drop	1.25V
	Pin Count	6
	Maximum Diode Capacitance	1.5pF
	Minimum Operating Temperature	-65 °C
	Maximum Operating Temperature	+150 °C
	Length	1.7mm
	Width	1.25mm
	Height	0.6mm
	Dimensions	1.7 x 1.25 x 0.6mm

	Select all
	Brand DiodesZetex
	Diode Configuration 2x Series Pair
	Maximum Forward Current 215mA
	Number of Elements per Chip 4
	Mounting Type Surface Mount
	Maximum Reverse Voltage 75V
	Package Type SOT-563
	Diode Technology Silicon Junction
	Maximum Forward Voltage Drop 1.25V
	Pin Count 6
	Maximum Diode Capacitance 1.5pF
	Minimum Operating Temperature -65 °C
	Maximum Operating Temperature +150 °C
	Length 1.7mm
	Width 1.25mm
	Height 0.6mm
	Dimensions 1.7 x 1.25 x 0.6mm

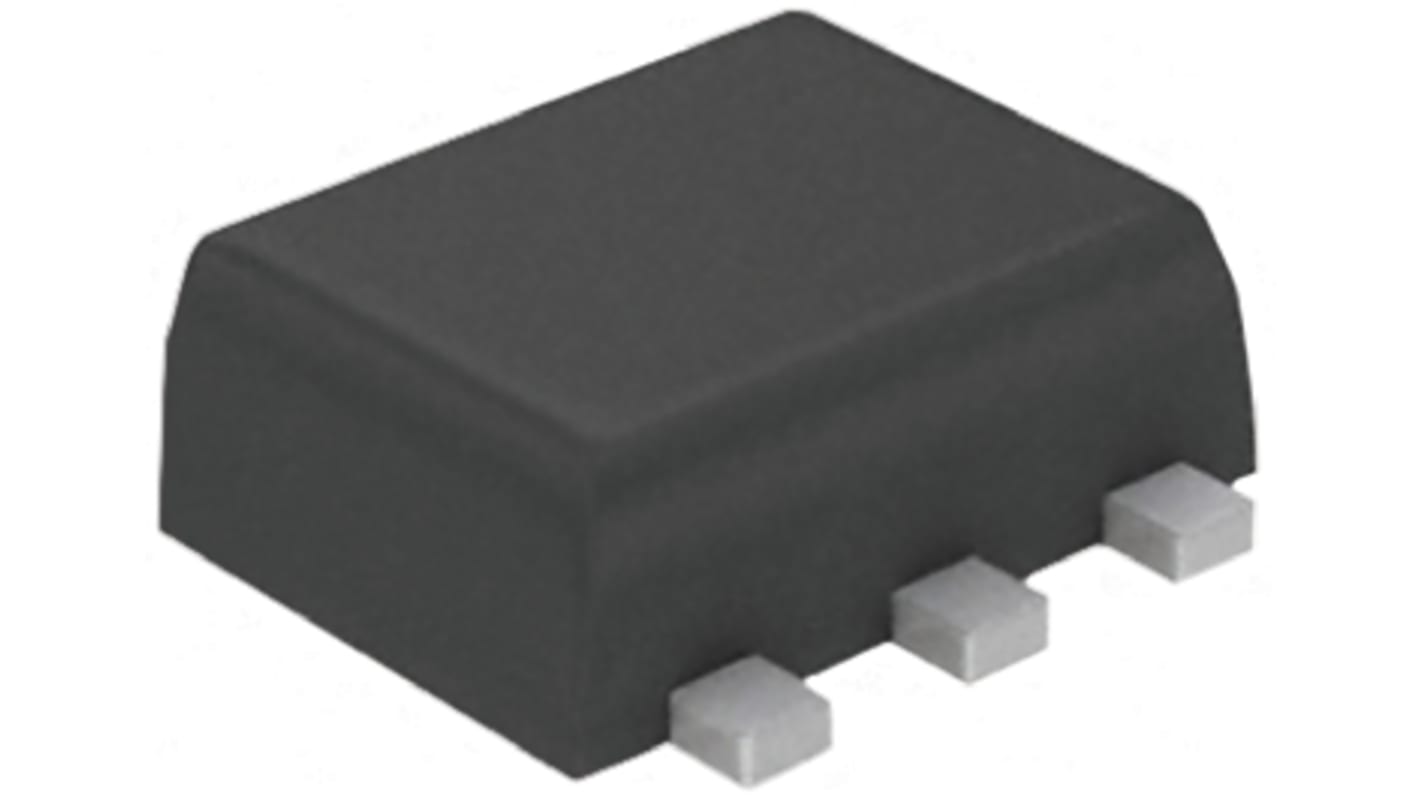

Diodes Inc Quad Switching Diode, 2x Series Pair, 215mA 75V, 6-Pin SOT-563 BAV99BRVA-7

FREE delivery for orders over MYR500.00

Small Signal Switching Diodes, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
