Nexperia Silicon Junction, Single, 215 mA, 2-Pin 100 V SOD-882
- RS Stock No.:
- 165-9831
- Mfr. Part No.:
- BAS16LD,315
- Manufacturer:
- Nexperia

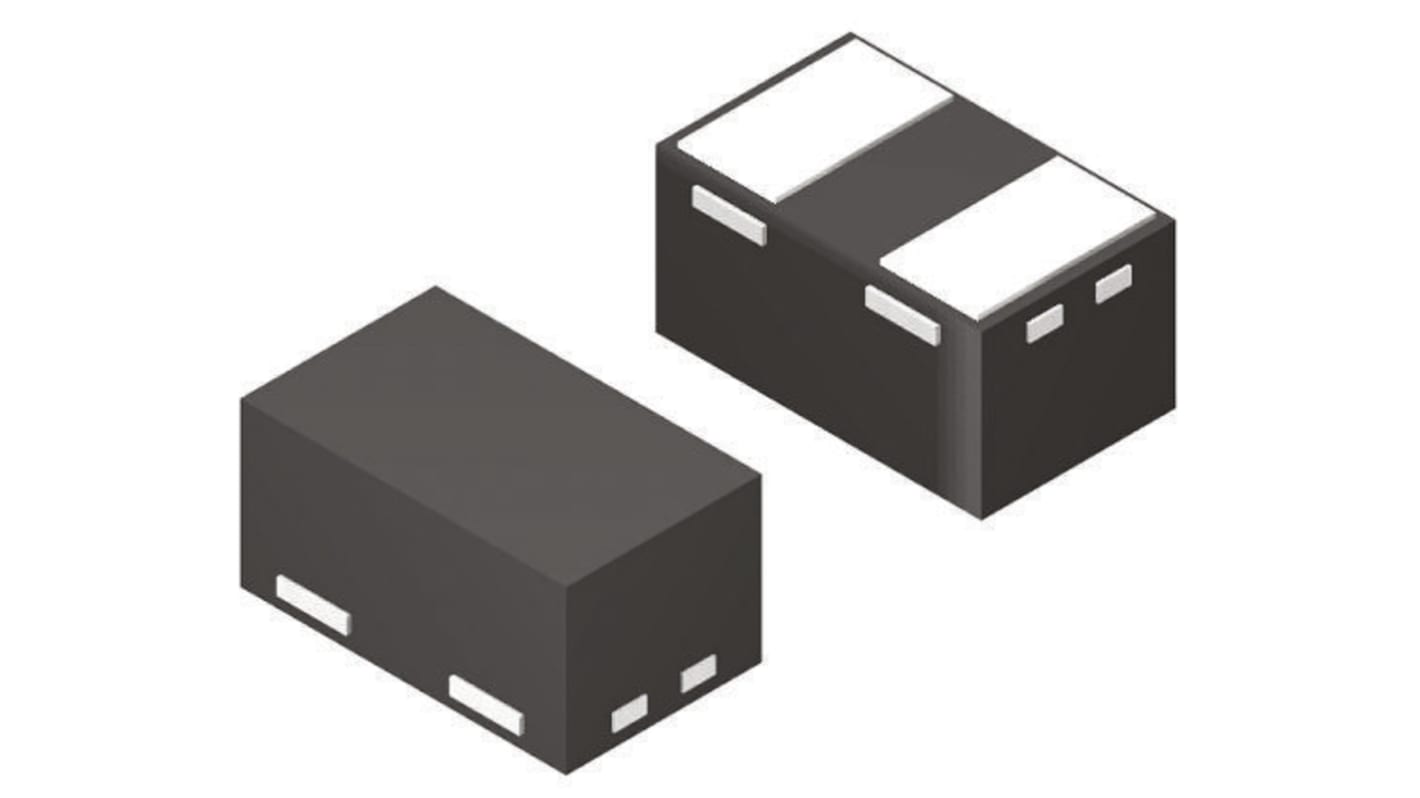

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 10000 units)*
MYR1,930.00
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 10 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 10000 - 10000 | MYR0.193 | MYR1,930.00 |
| 20000 + | MYR0.189 | MYR1,890.00 |
*price indicative
- RS Stock No.:
- 165-9831
- Mfr. Part No.:
- BAS16LD,315
- Manufacturer:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Silicon Junction | |
| Maximum Forward Current If | 215mA | |
| Diode Configuration | Single | |
| Mount Type | Surface | |
| Sub Type | Silicon Junction | |
| Package Type | SOD-882 | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 1.25V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 250mW | |
| Peak Reverse Recovery Time trr | 4ns | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Series | BAS16LD | |
| Height | 0.4mm | |
| Length | 1.05mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Silicon Junction | ||
Maximum Forward Current If 215mA | ||
Diode Configuration Single | ||
Mount Type Surface | ||
Sub Type Silicon Junction | ||
Package Type SOD-882 | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 1.25V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 4A | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 250mW | ||
Peak Reverse Recovery Time trr 4ns | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 100V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Series BAS16LD | ||
Height 0.4mm | ||
Length 1.05mm | ||
Automotive Standard No | ||
Small Signal Switching Diodes, Nexperia
Features
Supports customised high density circuit designs
Low-leakage and high-voltage types available
High switching speeds
Low capacitance
Diodes and Rectifiers
