Vishay Switching Diode, 300mA, 2-Pin MiniMELF LL4148-GS18

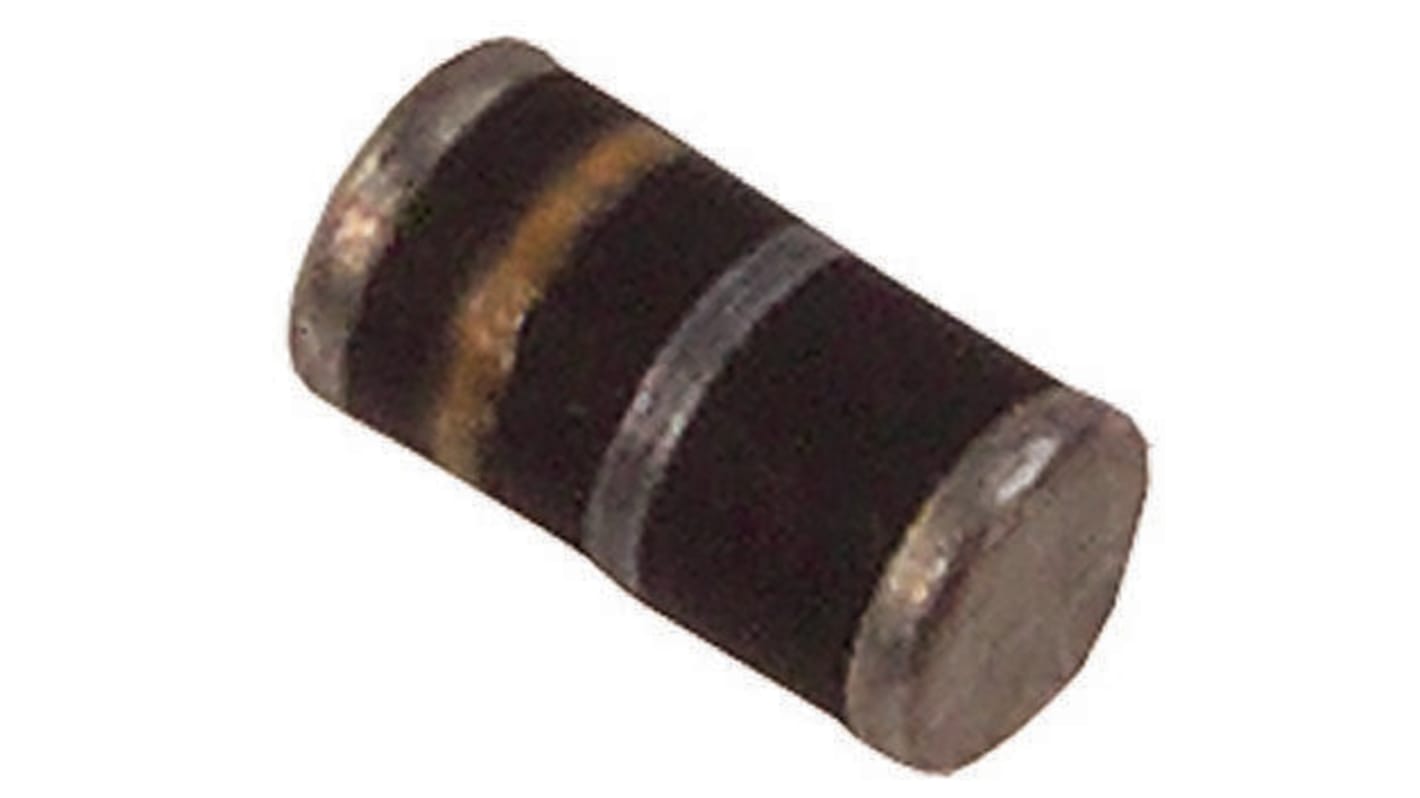

This image is representative of the product range

View all Switching Diodes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
145-2641
Mfr. Part No.:
LL4148-GS18
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

Single

Maximum Forward Current

300mA

Mounting Type

Surface Mount

Number of Elements per Chip

1

Package Type

MiniMELF

Diode Technology

Silicon Junction

Maximum Forward Voltage Drop

1V

Pin Count

2

Minimum Operating Temperature

-65 °C

Maximum Operating Temperature

+175 °C

Length

3.7mm

Width

1.6mm

Height

1.6mm

Dimensions

3.7 x 1.6 x 1.6mm

COO (Country of Origin):
CN

Glass Passivated Junction Fast Switching Plastic Rectifier


Features
• Superectifier structure for high reliability condition
• Cavity-free glass-passivated junction
• Fast switching for high efficiency
• Low leakage current, typical IR less than 0.2 μA
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106

Typical Applications
High voltage rectification of G2 grid CRT and TV, snubber
circuit of camera flash.

Mechanical Data
Case: DO-204AL, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity: Color band denotes cathode end
