Units	Per Unit	Per Pack**
200 - 800	MYR0.299	MYR59.80
1000 - 1800	MYR0.278	MYR55.60
2000 - 9800	MYR0.254	MYR50.80
10000 - 19800	MYR0.236	MYR47.20
20000 +	MYR0.221	MYR44.20

Select all	Attribute	Value
	Brand	ROHM
	Maximum Forward Current	300mA
	Diode Configuration	Common Cathode
	Number of Elements per Chip	2
	Mounting Type	Surface Mount
	Maximum Reverse Voltage	80V
	Package Type	SOT-416FL
	Maximum Forward Voltage Drop	1.2V
	Pin Count	3
	Maximum Diode Capacitance	3.5pF
	Maximum Operating Temperature	+150 °C
	Length	1.7mm
	Width	0.96mm
	Height	0.8mm
	Dimensions	1.7 x 0.96 x 0.8mm
	Power Dissipation	150mW

	Select all
	Brand ROHM
	Maximum Forward Current 300mA
	Diode Configuration Common Cathode
	Number of Elements per Chip 2
	Mounting Type Surface Mount
	Maximum Reverse Voltage 80V
	Package Type SOT-416FL
	Maximum Forward Voltage Drop 1.2V
	Pin Count 3
	Maximum Diode Capacitance 3.5pF
	Maximum Operating Temperature +150 °C
	Length 1.7mm
	Width 0.96mm
	Height 0.8mm
	Dimensions 1.7 x 0.96 x 0.8mm
	Power Dissipation 150mW

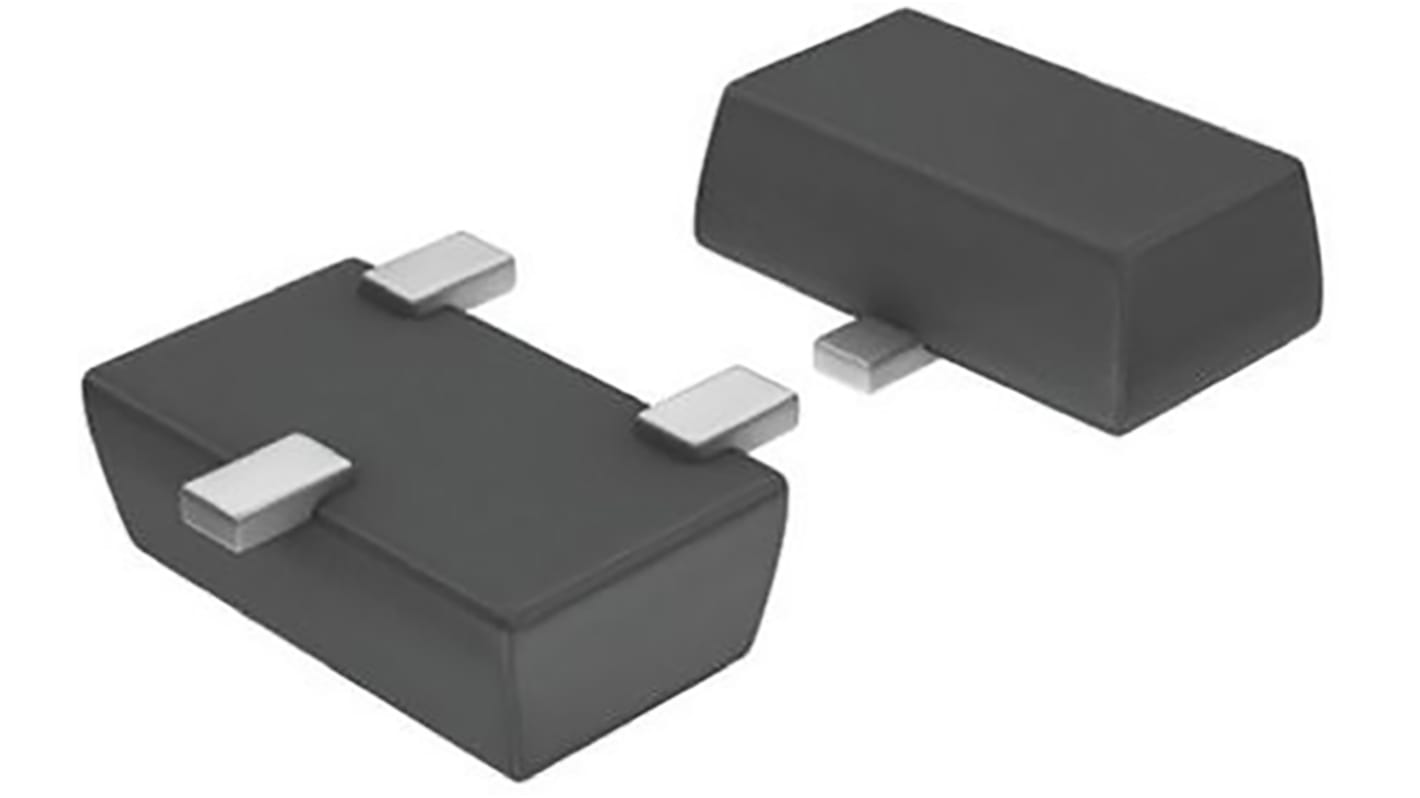

ROHM Dual Switching Diode, Common Cathode, 300mA 80V, 3-Pin SOT-416FL DAN222WMTL

FREE delivery for orders over MYR500.00

Switching Diodes, ROHM

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
