Select all	Attribute	Value
	Brand	DiodesZetex
	Maximum Forward Current	400mA
	Diode Configuration	Single
	Number of Elements per Chip	1
	Mounting Type	Surface Mount
	Maximum Reverse Voltage	100V
	Package Type	SOD-123
	Diode Technology	Silicon Junction
	Pin Count	2
	Maximum Forward Voltage Drop	1.25V
	Maximum Diode Capacitance	5pF
	Minimum Operating Temperature	-65 °C
	Maximum Operating Temperature	+150 °C
	Length	2.85mm
	Width	1.7mm
	Height	1.35mm
	Dimensions	2.85 x 1.7 x 1.35mm

	Select all
	Brand DiodesZetex
	Maximum Forward Current 400mA
	Diode Configuration Single
	Number of Elements per Chip 1
	Mounting Type Surface Mount
	Maximum Reverse Voltage 100V
	Package Type SOD-123
	Diode Technology Silicon Junction
	Pin Count 2
	Maximum Forward Voltage Drop 1.25V
	Maximum Diode Capacitance 5pF
	Minimum Operating Temperature -65 °C
	Maximum Operating Temperature +150 °C
	Length 2.85mm
	Width 1.7mm
	Height 1.35mm
	Dimensions 2.85 x 1.7 x 1.35mm

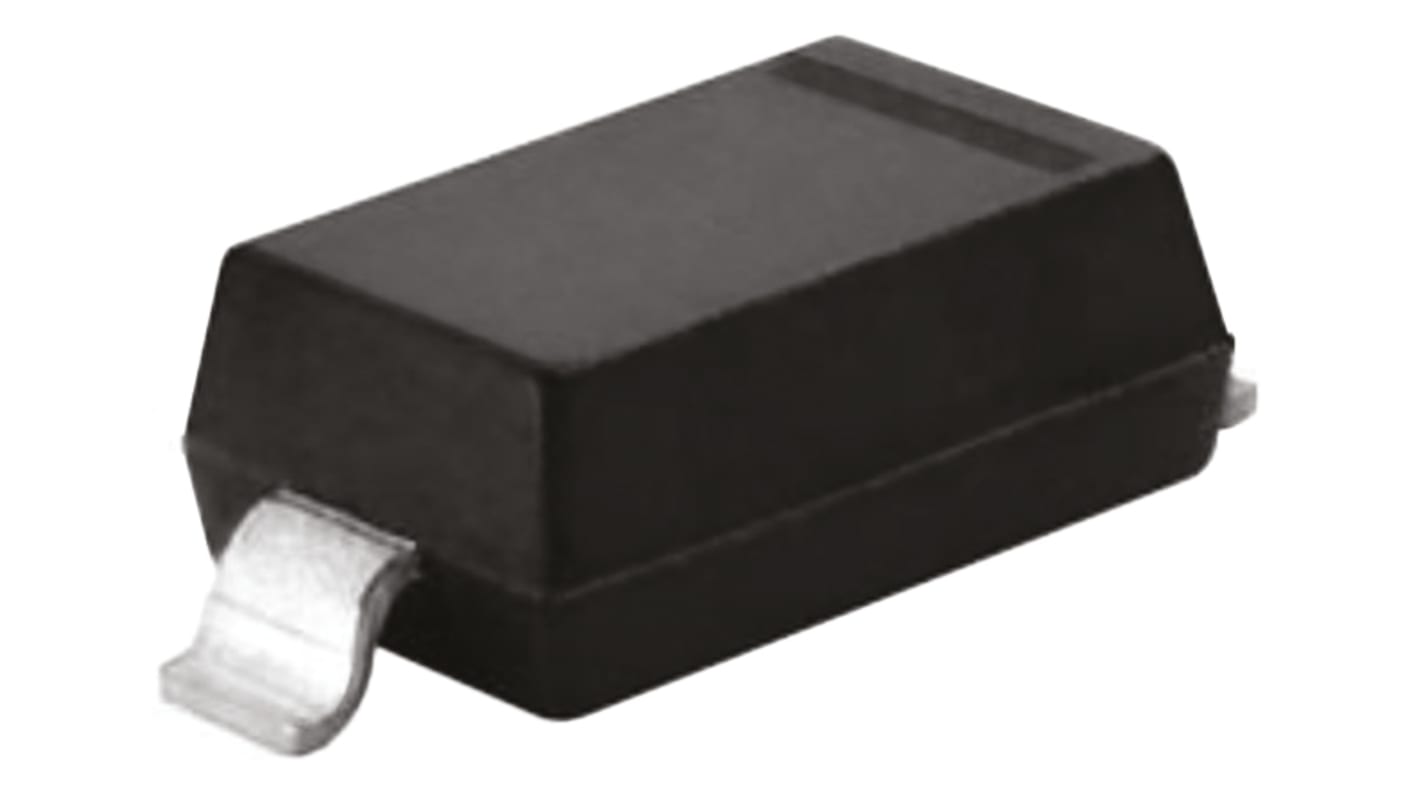

Diodes Inc Switching Diode, 400mA 100V, 2-Pin SOD-123 BAV20W-7-F

FREE delivery for orders over MYR500.00

Small Signal Switching Diodes, Diodes Inc

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
