Units	Per Unit	Per Reel**
1500 - 1500	MYR2.622	MYR3,933.00
3000 - 4500	MYR2.565	MYR3,847.50
6000 +	MYR2.517	MYR3,775.50

Select all	Attribute	Value
	Brand	EPCOS
	Inductance	12 μH
	Maximum DC Current	1.38A
	Package/Case	2220 (5650M)
	Length	5.6mm
	Automotive Standard	AEC-Q200
	Depth	5mm
	Height	5mm
	Dimensions	5.6 x 5 x 5mm
	Shielded	No
	Tolerance	±10%
	Maximum DC Resistance	141mΩ
	Series	SIMID
	Core Material	Ferrite
	Maximum Self Resonant Frequency	19MHz
	Moulded	Yes
	Minimum Operating Temperature	-55°C
	Minimum Quality Factor	15
	Maximum Operating Temperature	+150°C
	Inductor Construction	Wire-Wound

	Select all
	Brand EPCOS
	Inductance 12 μH
	Maximum DC Current 1.38A
	Package/Case 2220 (5650M)
	Length 5.6mm
	Automotive Standard AEC-Q200
	Depth 5mm
	Height 5mm
	Dimensions 5.6 x 5 x 5mm
	Shielded No
	Tolerance ±10%
	Maximum DC Resistance 141mΩ
	Series SIMID
	Core Material Ferrite
	Maximum Self Resonant Frequency 19MHz
	Moulded Yes
	Minimum Operating Temperature -55°C
	Minimum Quality Factor 15
	Maximum Operating Temperature +150°C
	Inductor Construction Wire-Wound

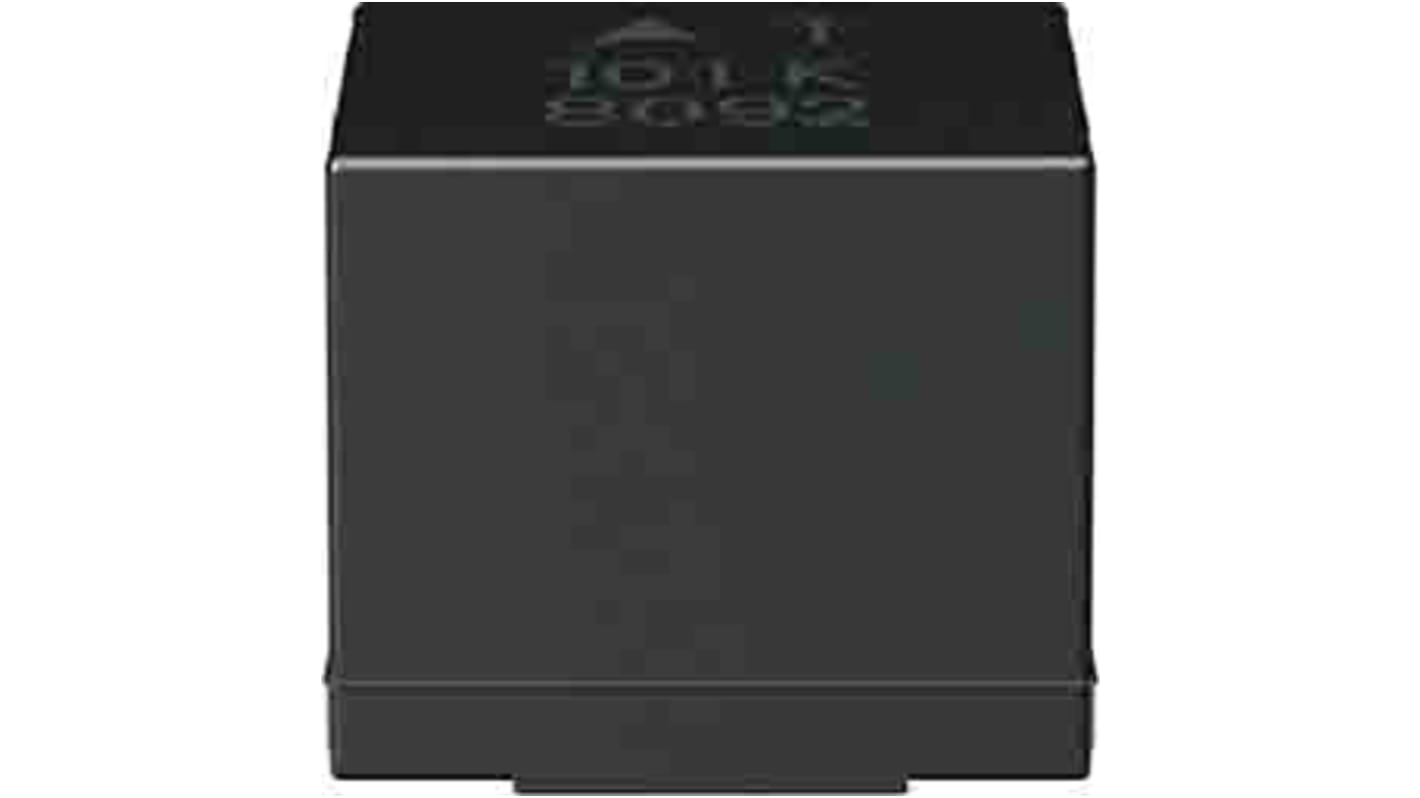

EPCOS, SIMID, 2220 (5650M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 12 μH ±10% Wire-Wound 1.38A Idc Q:15
