RS PRO 0.33 F Supercapacitor -20 to 80 % Tolerance, SG 5.5V dc, Radial
- RS Stock No.:
- 184-5067
- Manufacturer:
- RS PRO

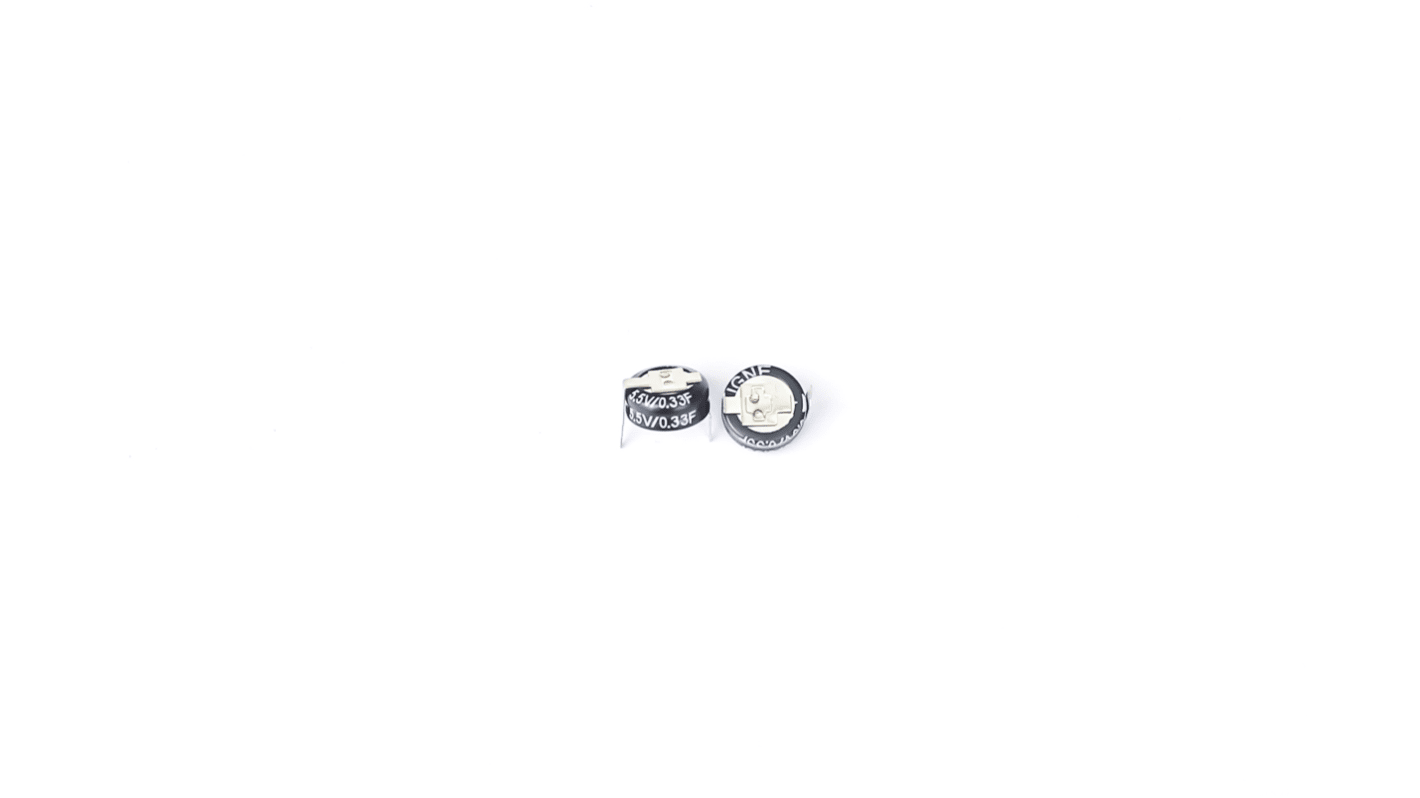

This image is representative of the product range
Subtotal (1 tray of 4800 units)*
MYR15,768.00
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Tray* |
|---|---|---|
| 4800 + | MYR3.285 | MYR15,768.00 |
*price indicative
- RS Stock No.:
- 184-5067
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Supercapacitor | |
| Capacitance | 0.33F | |
| Voltage | 5.5V dc | |
| Mount Type | Radial | |
| Automotive Standard | No | |
| Polarity | Polar | |
| Diameter | 9.5mm | |
| Lead Pitch | 10mm | |
| Leakage Current | 0.005mA | |
| Equivalent Series Resistance ESR | 75mΩ | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Lifetime | 200000 Cycles | |
| Maximum Operating Temperature | 70°C | |
| Series | SG | |
| Standards/Approvals | BS EN 61340-5-1:2007, ANSI/ESD S20.20:2014 | |
| Height | 8.6mm | |
| Tolerance | -20 to 80 % | |
| Capacitor Family | Electric Double Layer | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Supercapacitor | ||
Capacitance 0.33F | ||
Voltage 5.5V dc | ||
Mount Type Radial | ||
Automotive Standard No | ||
Polarity Polar | ||
Diameter 9.5mm | ||
Lead Pitch 10mm | ||
Leakage Current 0.005mA | ||
Equivalent Series Resistance ESR 75mΩ | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Lifetime 200000 Cycles | ||
Maximum Operating Temperature 70°C | ||
Series SG | ||
Standards/Approvals BS EN 61340-5-1:2007, ANSI/ESD S20.20:2014 | ||
Height 8.6mm | ||
Tolerance -20 to 80 % | ||
Capacitor Family Electric Double Layer | ||
RS PRO EDLC Supercapacitor
The RS PRO SD series 0.33F EDLC supercapacitor has a voltage rating of 5.5V and leakage current (24h) of ≤0.005mA. This electric double layer capacitor is suitable for applications like general industrial equipment.
Features and Benefits
• Tolerance of -20% to 80%
• Operating temperature ranges from -40°C to 70°C
• AC impedance of 50ohm and DC impedance of 75ohm
Applications
• UPS (backup power supplies)
• Solar battery operated circuits
• Motor drives (quick charging) base stations
• Electronic meters
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
